18301 - Toro Electric Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1969) Handle Assembly Parts Diagram

Electric Whirlwind Walk-Behind Mower

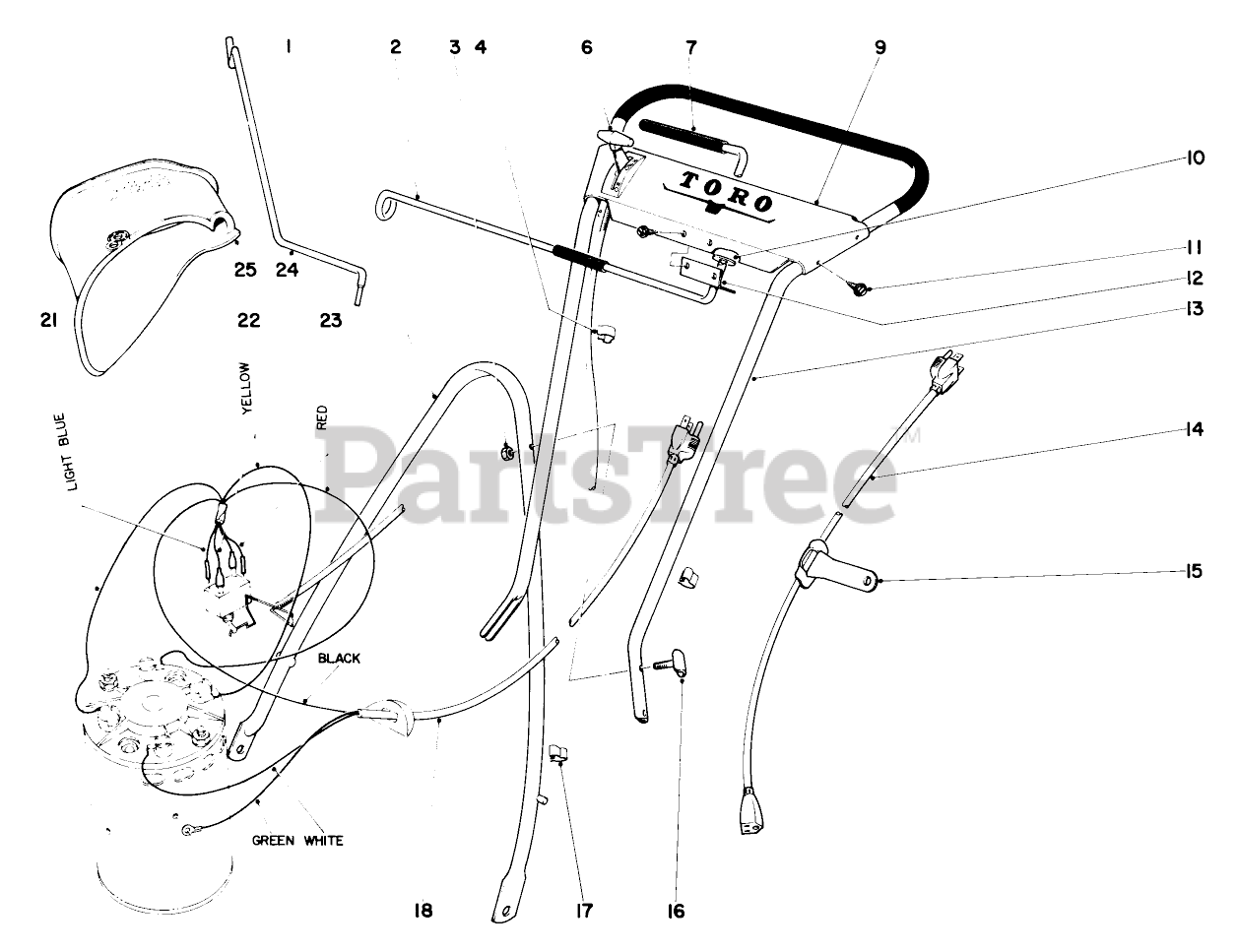

Handle Assembly Parts Diagram

  • Title

1

Toro 3-9430

Handle-Lower

$

$

Currently unavailable

2

Toro 4-3949

Pivot Rod Bracket Assembly (Incl. Ref. 9-10)

$

$

Currently unavailable

3

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 218-75

DISCONTINUED

$

$

Not available

6

Toro 5-4754

Control-Switch

$

$

Currently unavailable

7

Toro 5-3741

Grip-Pivot Rod

$

$

Currently unavailable

9

Toro 5-3742

Plate-Escutcheon

$

$

Currently unavailable

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

12

Toro 5-3754

Bracket-Escutcheon

$

$

Currently unavailable

13

Toro 4-3669

Handle-Upper

$

$

Currently unavailable

14

Toro 5-3760

Cord Assembly (Incl. Ref. 11)

$

$

Currently unavailable

14

Toro 5-4708

Cord Assy.-100 ft. (Canadian)(Incl. Ref. No. 15)

$

$

Currently unavailable

15

Toro 5-3757

Cord Strain Relief

$

$

Currently unavailable

16

Toro 3-2654

DUP PART SEE $BOOK

$

$

Not available

17

Toro 218-404

DISCONTINUED

$

$

Not available

18

Toro 5-3743

Cord Assembly

$

$

Currently unavailable

18

Toro 5-4714

Cord Assembly (Canadian)

$

$

Currently unavailable

21

Toro 5-3748

Lead Wire (Blue)

$

$

Currently unavailable

22

Toro 5-3736

Lead Wire (Yellow)

$

$

Currently unavailable

23

Toro 5-3746

Lead Wire (Red)

$

$

Currently unavailable

24

Toro 3-0690

DISCONTINUED

$

$

Not available

25

Toro 5-3442

See Supercession: 11-0460
(Superseded to 11-0460)

$234.99

$

Usually ships in 3-6 days

0

Toro 81064

Bag-Set of 2

Note: Not Illustrated.

$

$

Currently unavailable

Toro 3-6279

Grass Bag Locking Strap

Note: Not Illustrated.

$

$

Currently unavailable
