18311 R - Troy-Bilt 38" Snow Thrower Attachment (SN: 0100101 - 0199999) 38" SNOWTHROWER ATTACHMENT Parts Diagram

38" Snow Thrower Attachment

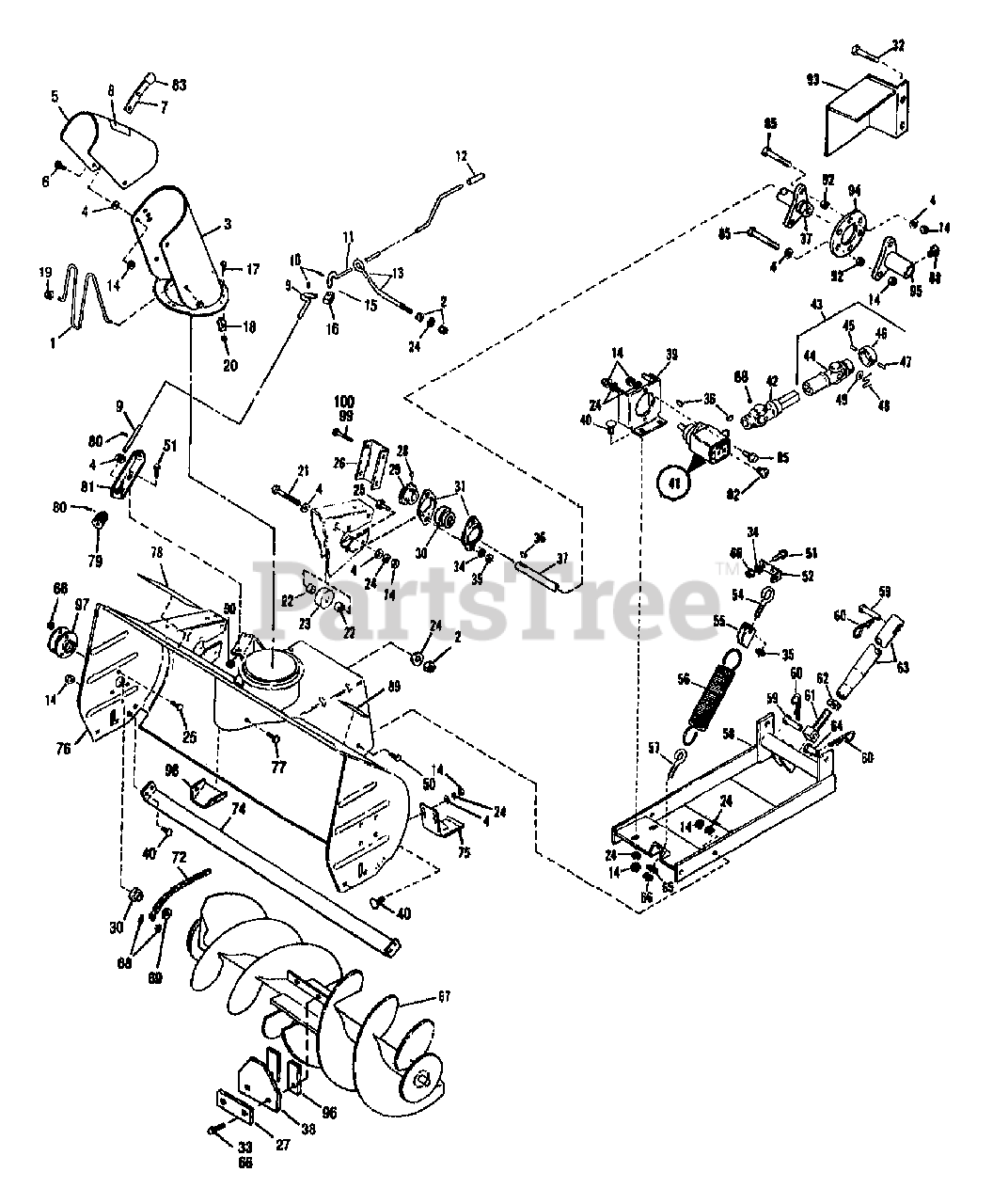

38" SNOWTHROWER ATTACHMENT Parts Diagram

  • Title

1

MTD 1722501

GUARD-CHUTE

$

$

Not available

2

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1754465GAR

ASSM-DISCHARGE CHUTE

$

$

Currently unavailable

4

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1757480GAR

CAP ASSY.

$

$

Currently unavailable

6

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

7

MTD 1723643

LEVER-ADJUSTING

$

$

Not available

8

MTD 1750692

DECAL-WARNING

$

$

Not available

9

MTD 1724806

SHAFT-PINION

$

$

Not available

10

MTD 1177625

PIN-ROLL 1/8 X 3/4

$

$

Not available

11

Troy-Bilt 1726091

ROD

$

$

Currently unavailable

12

Troy-Bilt 1715685

GRIP-PLASTIC
(Superseded to 720-0269)

$4.49

$

In Stock, only 4 left!

0

13

MTD 1750953

SCR-EYE

$

$

Not available

14

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

16

Troy-Bilt 1714782

BLOCK-SWIVEL NYLON

$23.99

$

Usually ships in 3-6 days

0

17

MTD 1185130

SCR-SEMS MACH

$

$

Not available

18

Troy-Bilt 1724869

CLIP-HOLD DOWN
(Superseded to 1724869099)

$10.99

$

In Stock, only 3 left!

0

19

MTD 1186048

NUT-PUSH 3/16

$

$

Not available

20

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

21

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

22

Troy-Bilt 1723776

SPACER-.68X.39X.46

$

$

Currently unavailable

23

MTD 1726829

BLOCK-TENSION

$

$

Not available

24

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

26

Troy-Bilt 1722617GAR

COVER-END

$

$

Currently unavailable

27

MTD 1756723

PLATE

$

$

Not available

28

MTD 1182554

SCR-SET

$

$

Not available

29

Troy-Bilt 1722614

SPROCKET

$

$

Not available

30

MTD 1741640

BEARING-BALL

$

$

Not available

31

MTD 1185838

BEARING-FLANGE

$

$

Not available

32

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

33

MTD 1186332

SCR-HFLK 5/16-18X1.25 ZP

$

$

Not available

34

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

37

Troy-Bilt 1739182

SHAFT-DRIVE

$

$

Currently unavailable

38

Troy-Bilt 1756579

SEAL

$

$

Not available

39

Troy-Bilt 1730093GAR

ASSM-SUPPORT

$

$

Currently unavailable

40

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

?41

Troy-Bilt 1728299

GEAR BOX-RT ANGLE

$

$

Currently unavailable

42

MTD 1730163GAR

JOINT-U

$

$

Not available

43

Troy-Bilt 1730215GAR

ASSM-U JOINT ASC

$

$

Currently unavailable

44

UNKNOWN

$

$

Not available

45

UNKNOWN

$

$

Not available

46

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

48

UNKNOWN

$

$

Not available

49

UNKNOWN

$

$

Not available

?44-49

0

N/A

$

$

Not available

50

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 3 left!

0

51

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 1730189GAR

ANCHOR-SPRING

$

$

Currently unavailable

54

Troy-Bilt 1730957

SCR-EYE

$

$

Currently unavailable

55

Troy-Bilt 1730596

BRKT-SPRING

$

$

Currently unavailable

56

Troy-Bilt 1714844

SPRING-EXT

$

$

Currently unavailable

57

MTD 1725199

BOLT

$

$

Not available

58

Troy-Bilt 1730113GAR

ASSM-HITCH

$

$

Currently unavailable

59

MTD 1708336

PIN-CLEVIS .5X2.25

$

$

Not available

60

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

61

MTD 1729947

ADJ-LIFT LINK

$

$

Not available

62

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.49

$

In Stock, Qty 15

0

63

Troy-Bilt 1735407GAR

TUBE-LIFT

$

$

Currently unavailable

64

MTD 1726311

PIN-CLEVIS .625 X 1.38

$

$

Not available

65

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

66

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

67

Troy-Bilt 1750697GAR

ASSM-ROTOR 38"

$

$

Currently unavailable

68

MTD 1185026

LINK-CONNECTOR

$

$

Not available

69

MTD 1700821

WASHER-THRUST 1.1X.76X.05

$

$

Not available

72

Troy-Bilt 1719785

CHAIN-DRIVE

$

$

Currently unavailable

74

MTD 1722596GAR

SCRAPER

$

$

Not available

75

MTD 1715754

SHOE-SKID

$

$

Not available

76

Troy-Bilt 1752060GAR

ASSM-ROTOR HSG W/DECAL

$

$

Currently unavailable

77

MTD 1185798

SCR-HH 3/8-16X.50

$

$

Not available

78

Troy-Bilt 1757219

DECAL-LOGO

$

$

Currently unavailable

79

MTD 1724870

GEAR-WORM LH

$

$

Not available

80

Troy-Bilt 1724885

PIN-DRIVE .09X.75

$

$

Not available

81

MTD 1750573GAR

SUPPORT-SHAFT

$

$

Not available

82

MTD 1721442

VALVE

$

$

Not available

83

MTD 1730214

GRIP

$

$

Not available

85

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

88

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

89

MTD 1750691

DECAL-WARNING

$

$

Not available

90

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

92

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 6

0

93

Troy-Bilt 1739183GAR

GUARD

$

$

Currently unavailable

94

Troy-Bilt 1734331

DISC-COUPLING

$

$

Not available

95

MTD 1739179

ASSM-HUB

$

$

Not available

96

MTD 1750859

SLINGER EXTENSION

$

$

Not available

97

Troy-Bilt 1800418

BEARING

$

$

Not available

98

Troy-Bilt 1750858GAR

ASSM-DEFLECTOR

$

$

Currently unavailable

99

MTD 1111602

SCR-HH 1/4-20X3.0 G5 ZP

$

$

Not available

100

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

Troy-Bilt 1754423

PAINT-RED SPRAYCAN POWDER

$

$

Currently unavailable
