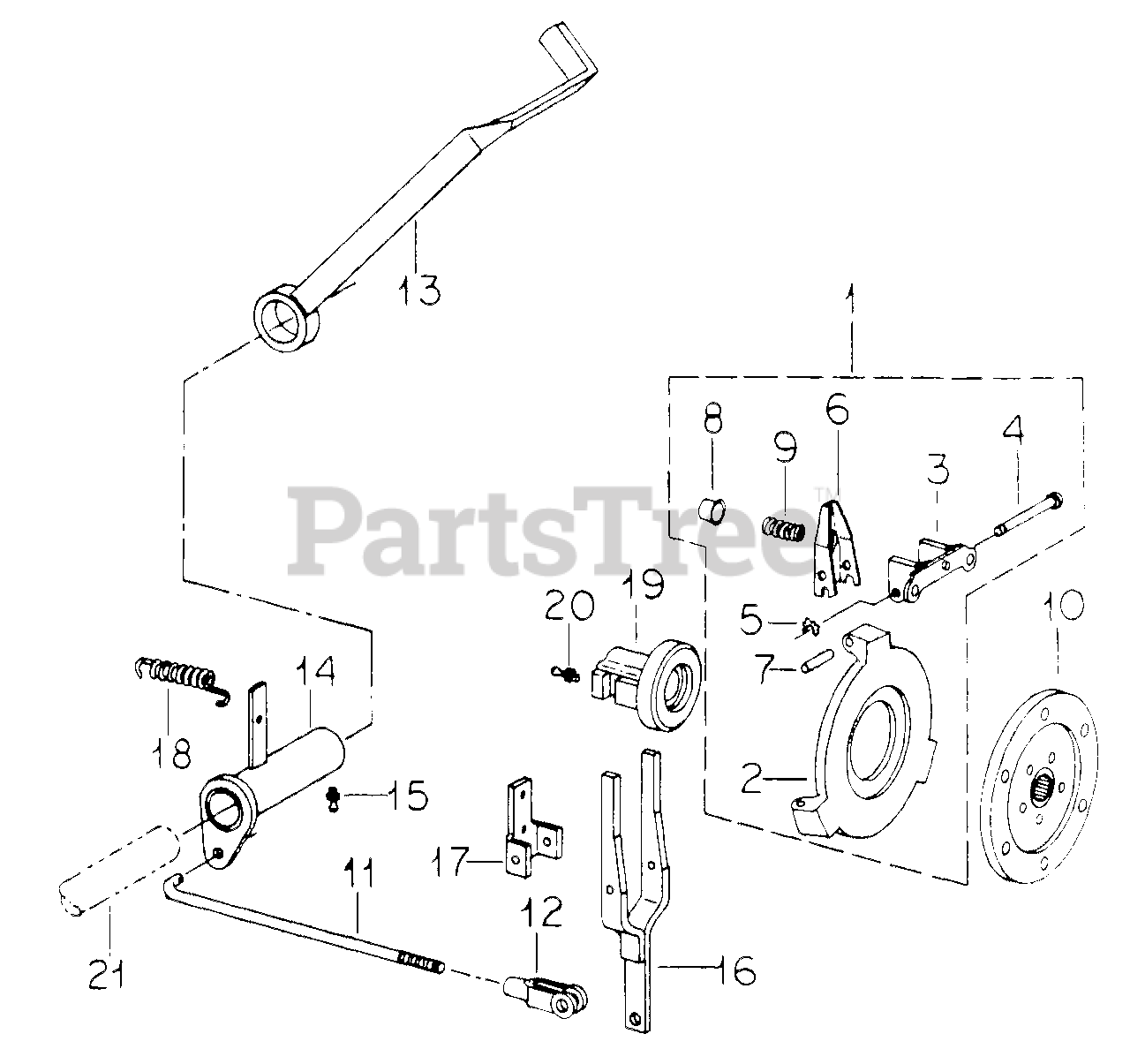

184 - International Harvester Cub Lo-Boy Tractor Clutch And Controls - 184 Tractor Parts Diagram

Cub Lo-Boy Tractor

Clutch And Controls - 184 Tractor Parts Diagram

  • Title

1

Cub Cadet IH-64794-C92

PLATE ASSY, CLUTCH PRESSURE
(Superseded to IH-64794-C93)

$

$

Not available

Cub Cadet IH-179816

BOLT, 5/16 X 3/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 PLN LOCK

$

$

Currently unavailable

2

Cub Cadet IH-405982-R1

PLATE, PRESSURE

$

$

Not available

3

Cub Cadet IH-405983-R1

BRACKET, LEVER

$

$

Not available

4

Cub Cadet IH-60342-C1

PIN, CLEVIS

$

$

Not available

5

Cub Cadet IH-60343-C1

RING, RET.

$

$

Currently unavailable

6

Cub Cadet IH-73239-C1

LEVER RELEASE

$

$

Not available

7

Cub Cadet IH-405986-R1

PIN, PRESSURE PLATE

$

$

Not available

8

Cub Cadet IH-73640-C1

CUP, SPRING

$

$

Currently unavailable

9

Cub Cadet IH-73641-C1

SPRING, PRESSURE

$

$

Not available

10

Cub Cadet IH-404640-R93

DISC ASSY, CLUTCH DRIVEN
(Superseded to IH-404640-R94)

$

$

Not available

11

Cub Cadet IH-117251-C1

ROD. CLUTCH

$

$

Not available

Cub Cadet IH-103341

WASHER, .406 X .812 X .051 PLN

$

$

Not available

Cub Cadet IH-103384

PIN, 1/8 X 3/4 PLN COT
(Superseded to 914-0474)

$

$

Not available

12

Cub Cadet IH-144243

CLEVIS, ROD END
(Superseded to 719-3013)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-138084

PIN, 3/8 X 1.060 CLEVIS
(Superseded to 911-3010)

$

$

Not available

Cub Cadet IH-103373

PIN. 3/32 X 3/4 PLN COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

13

Cub Cadet IH-132130-C1

PEDAL ASSY. CLUTCH

$

$

Currently unavailable

Cub Cadet IH-27767-R1

SCREW, 3/8 X 7/8 PLN CO/PT HDL/HS SET

$

$

Currently unavailable

Cub Cadet IH-124829

NUT, 3/8 JAM TYPE 5
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet IH-117237-C1

TUBE ASSY, CLUTCH PEDAL

$

$

Currently unavailable

15

Cub Cadet IH-110146-R91

FITTING, LUBRICATION

$

$

Not available

16

Cub Cadet IH-117529-C2

YOKE ASSY, CLUTCH

$

$

Not available

Cub Cadet IH-120393

WASHER, 344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-103384

PIN, 1/8 X 3/4 PLN COT
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-932357-R1

PIN, 5/16 X 3 PLN HD TYPE 5

$

$

Not available

17

Cub Cadet IH-117248-C1

BRACKET, CLUTCH YOKE

$

$

Currently unavailable

18

Cub Cadet IH-117252-C1

SPRING, CLUTCH RETURN

$

$

Currently unavailable

19

Cub Cadet IH-117244-C1

RETAINER ASSY, CLUTCH RLS BRG.

$

$

Not available

20

Cub Cadet IH-443566

FITTING, LUBRICATION
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

21

SHAFT, BRAKE

Note: REFER TO BRAKE LISTING, GROUP 4

$

$

Not available

Cub Cadet IH-405988-R91

PACKAGE, CLUTCH FACING

Note: CONSISTS OF THE FOLLOWING 2 ITEMS

$

$

Not available

FACING CLUTCH

$

$

Not available

Cub Cadet IH-HS490

RIVET, CLUTCH FACING

$

$

Currently unavailable
