184 - International Harvester Cub Lo-Boy Tractor Combination Rear And Tail Light Parts Diagram

Cub Lo-Boy Tractor

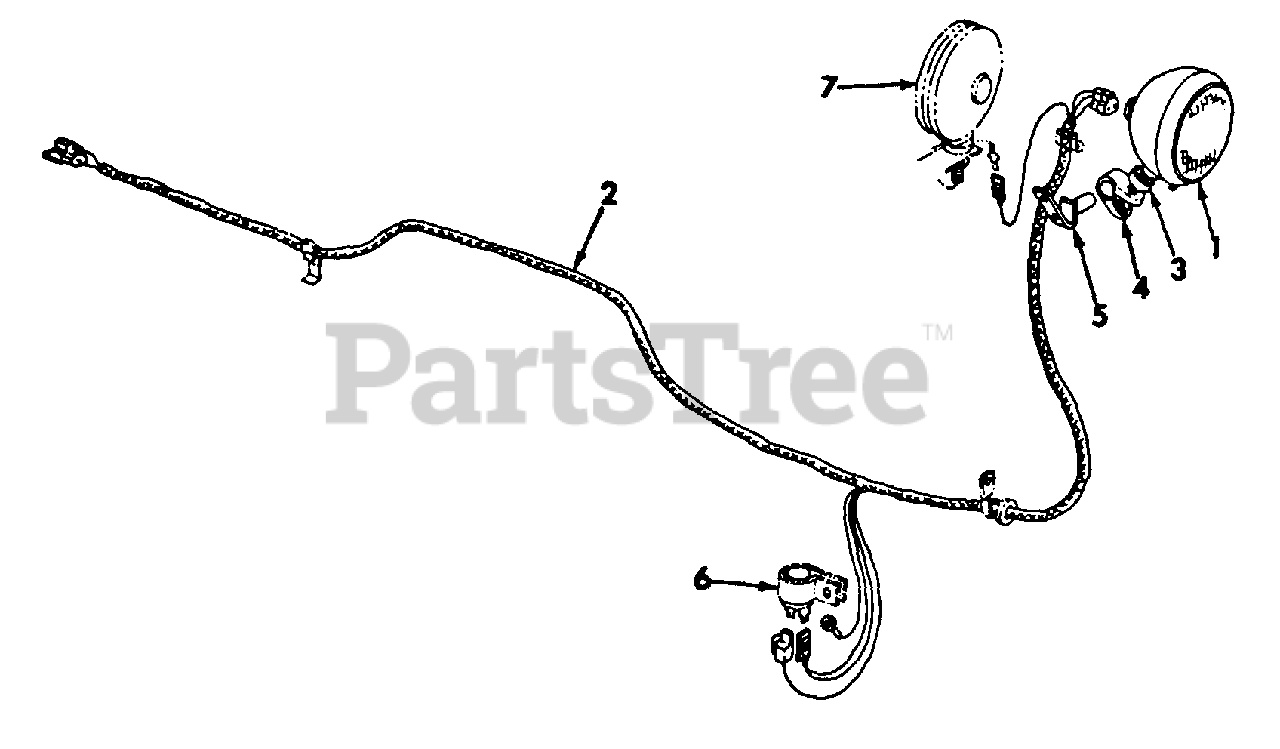

Combination Rear And Tail Light Parts Diagram

  • Title

Cub Cadet IH-406850-R92

PARTS ACCESSORY, COMBINATION REAR AND TAIL LIGHT

$

$

Currently unavailable

1

Cub Cadet IH-377102-R92

LIGHT ASSY, SEALED BEAM COMBINATION REAR AND TAIL

Note: SERVICEABLE ITEMS ARE SEALED BEAM UNIT IH-371461-R92 AND LAMP IH-455490

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-406851-R2

HARNESS ASSY, COMBINATION REAR LIGHT

Note: 185 LO-BOY TRACTORS

$

$

Currently unavailable

2

Cub Cadet IH-132050-C2

CABLE ASSY, COMBINATION REAR LIGHT-184 TRACTOR

$

$

Currently unavailable

3

Cub Cadet IH-365503-R1

SPACER

$

$

Not available

4

Cub Cadet IH-350920-R1

CLAMP

$

$

Not available

5

Cub Cadet IH-406852-R1

BRACKET ASSY, COMBINATION REAR LIGHT

$

$

Currently unavailable

6

FLASHER, WARNING LIGHT

Note: REFER TO STARTING AND LIGHTING LISTING, THIS SECTION

$

$

Not available

7

LIGHT ASSY, WARNING

Note: REFER TO STARTING AND LIGHTING LISTING, THIS SECTION

$

$

Not available

Cub Cadet IH-370383-R1

CLIP, CABLE HARNESS

Note: 185 LO-BOY TRACTORS

$

$

Not available

Cub Cadet IH-362123-R1

CLIP, CABLE HARNESS

Note: 185 LO-BOY TRACTORS

$

$

Not available

Cub Cadet IH-371461-R92

SEALED BEAM UNIT

$

$

Not available

Cub Cadet IH-455490

LAMP

$

$

Currently unavailable
