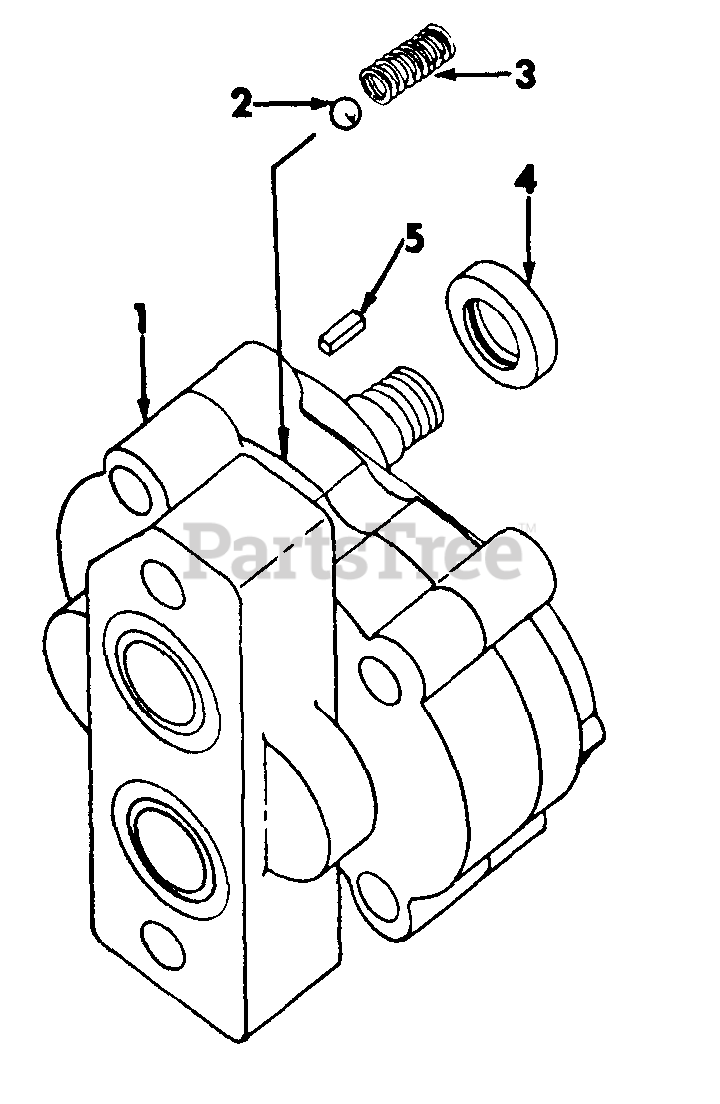

184 - International Harvester Cub Lo-Boy Tractor Hydraulic Pump (Warner Motive) Parts Diagram

Cub Lo-Boy Tractor

Hydraulic Pump (Warner Motive) Parts Diagram

  • Title

1

Cub Cadet IH-404870-R91

PUMP ASSY, HYDRAULIC CUB 154 LO-BOY TRACTOR WITH S/N 22331 & BELOW

$

$

Currently unavailable

Cub Cadet IH-547135-R91

PUMP ASSY, HYDRAULIC CUB 154 LO-BOY TRACTOR WITH S/N 22332 & ABOVE

Note: OPTIONAL W/544017-R91

$

$

Currently unavailable

2

NOT USED IN THIS APPLICATION

$

$

Not available

3

NOT USED IN THIS APPLICATION

$

$

Not available

4

Cub Cadet IH-529443-R91

SEAL, PUMP DRIVE SHAFT OIL

$

$

Currently unavailable

5

Cub Cadet IH-124543

KEY, 1/8 X 1/2 WOODRUFF - PUMP DRIVE SHAFT

$

$

Not available

Cub Cadet IH-529444-R92

PACKAGE, O-RING & GASKET SERVICE

Note: CONSISTS OF THE FOLLOWING 6 ITEMS:

$

$

Currently unavailable

Cub Cadet IH-351677-R1

GASKET

$

$

Not available

Cub Cadet IH-21098-R1

O-RING

$

$

Currently unavailable

Cub Cadet IH-606271-C1

O-RING

$

$

Currently unavailable

PLATE

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

SEAL

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

SEAL

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
