1855 (80828) - Snapper Garden Tractor, 18hp Electrical System Parts Diagram

Garden Tractor, 18hp

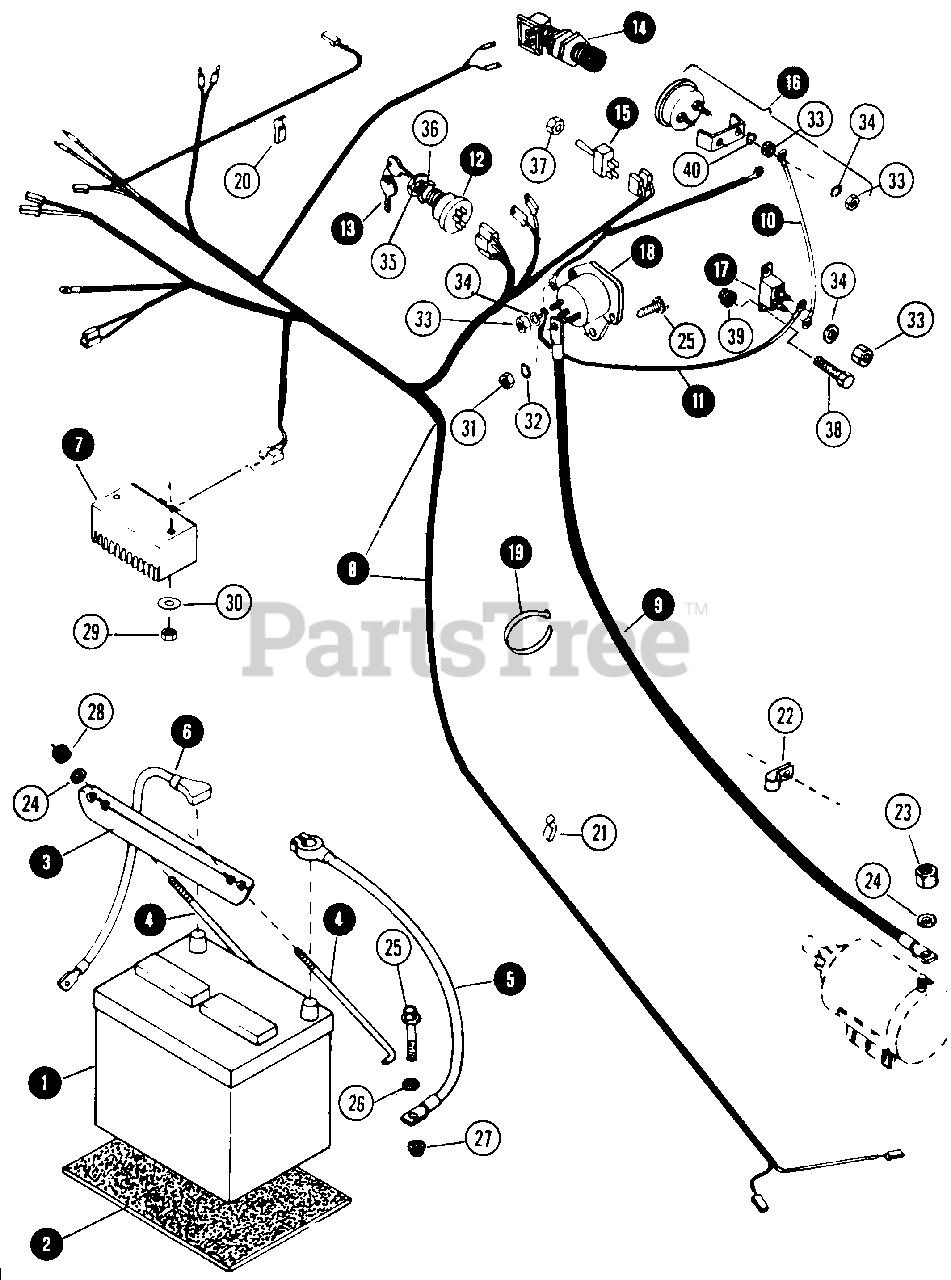

Electrical System Parts Diagram

  • Title

1

Snapper 7019844

BATTERY, 12 VOLT, 52 AMP HOUR

$

$

Currently unavailable

2

Snapper 18302

PAD, BATTERY

$

$

Currently unavailable

3

Snapper 39621

CLAMP, BATTERY HOLD DOWN

$

$

Currently unavailable

4

Snapper 7012740

ROD, HOLD DOWN

$

$

Not available

5

Snapper 7018306

CABLE, BATTERY - NEGATIVE TO GROUND

$

$

Not available

6

Snapper 7019561

CABLE, BATTERY POSITIVE - TO SOLENOID

$

$

Not available

7

Snapper 19562

RECTIFIER - REGULATOR

$

$

Currently unavailable

8

Snapper 7019924

HARNESS, MAIN WIRING

$

$

Not available

9

Snapper 18304

CABLE, SOLENOID TO STARTER

$

$

Currently unavailable

10

Snapper 18265

WIRE, CIRCUIT BREAKER TO AMMETER

$

$

Currently unavailable

11

Snapper 18262

WIRE, SOLENOID TO CIRCUIT BREAKER

$

$

Currently unavailable

12

Snapper 7019543

SWITCH, IGNITION
(Superseded to 7019543YP)

Note: (INCLUDES ITEMS 13, 35 & 36)

$57.99

$

Usually ships in 2-12 days

0

13

Snapper 7011138

KEY, IGNITION SWITCH (PAIR)
(Superseded to 7011138YP)

Note: Was 12692

$7.49

$

In Stock, Qty 9

0

14

Snapper 7012668

SWITCH, INTERLOCK (Seat / Rear PTO)
(Superseded to 7012668YP)

Note: (INCLUDES MOUNTING HARDWARE)

$33.99

$

Usually ships in 2-12 days

0

14

Snapper 7019546

SWITCH, Interlock Pedal - Levered (Not Shown)

$

$

Currently unavailable

15

Snapper 7019545

SWITCH, TOGGLE PTO
(Superseded to 7019545YP)

$44.99

$

Usually ships in 2-12 days

0

16

Snapper 7019547

AMMETER ASSEMBLY
(Superseded to 7019547YP)

Note: (INCLUDES MTG BRACKET & HARDWARE)

$90.99

$

Usually ships in 2-12 days

0

17

Snapper 7013941

BREAKER, CIRCUIT
(Superseded to 1665238SM)

Note: Was 18263 (INCLUDES TERMINAL NUTS, ETC.)

$14.99

$

In Stock, Qty 13

0

18

Snapper 7019544

SOLENOID, STARTING

$

$

Currently unavailable

19

Snapper 7018332

STRAP, WIRE RETAINING

Note: Was 12690

$

$

Not available

20

Snapper 18270

CLIP, WIRING

$

$

Currently unavailable

21

Snapper 7012691

CLIP, WIRING
(Superseded to 7012691YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 19560

CLIP, WIRING

$

$

Currently unavailable

23

Snapper 7090372

NUT, 1/4C HEX LOCK
(Superseded to 703954)

$

$

Not available

24

Snapper 7091098

WASHER 1/4 FLAT
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7090596

BOLT 1/4C x 5/8 HEX FLANGE LOCK

$

$

Not available

26

Snapper 7090608

WASHER, 1/4 EXTERNAL TOOTH LOCK

$

$

Not available

27

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

28

Snapper 7090372

NUT, 1/4C HEX LOCK
(Superseded to 703954)

$

$

Not available

29

Snapper 7091576

NUT, 1/4C HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 4 left!

0

30

Snapper 7090053

WASHER, 1/4 INTERNAL LOCK
(Superseded to 703462)

Note: Was 12737

$4.49

$

In Stock, Qty 13

0

31

Snapper 7091511

NUT, 5/16C HEX
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7090187

WASHER 5/16 LOCK
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7090013

NUT, #10-32 HEX

$

$

Not available

34

Snapper 7090601

WASHER, #10 LOCK
(Superseded to 7090601YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7012685

NUT, SWITCH MOUNTING
(Superseded to 7012685YP)

Note: (INCLUDED WITH ITEM 12)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7090183

WASHER, 5/8 FLAT
(Superseded to 7090183YP)

Note: (INCLUDED WITH ITEM 12)

$4.49

$

In Stock, Qty 13

0

37

Snapper 7012686

NUT, 1/2-27 HEX-SPECIAL
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

38

Snapper 7090610

SCREW, #10-24 x 1/2 PAN HEAD

$

$

Currently unavailable

39

Snapper 7012688

NUT, #10-24 FLANGE LOCK
(Superseded to 7012688YP)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper 7090010

WASHER, #10 FLAT
(Superseded to 7091552SM)

$3.99

$

In Stock, only 4 left!

0
