18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 412800000 - 414299999) Battery Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

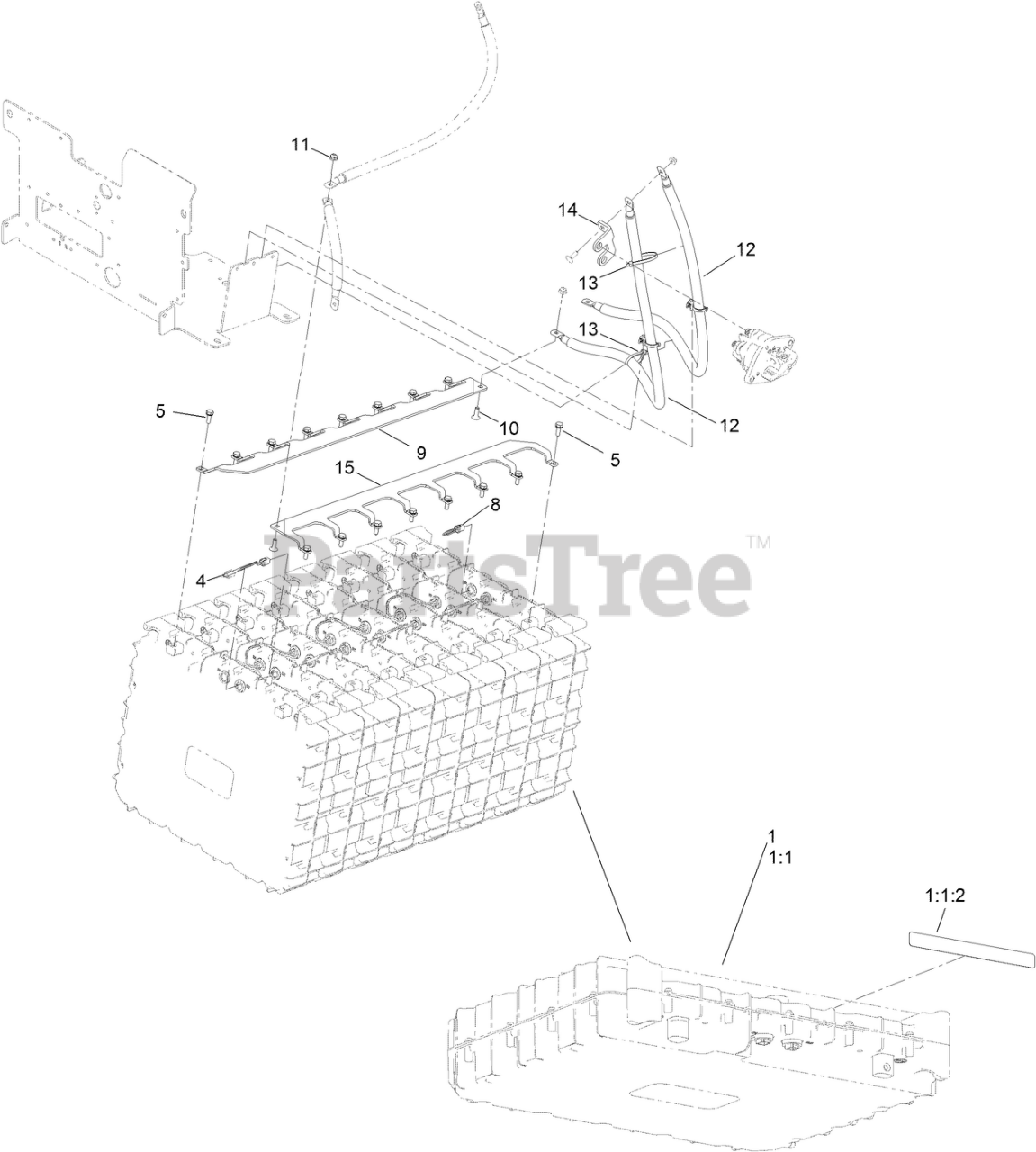

Battery Assembly Parts Diagram

  • Title

1

Toro 145-5320

BATTERY ASM

$2456.99

$

Usually ships in 0 days

0

1:1

BATTERY ASM

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 144-0276

DECAL-WARNING, BATTERY

$

$

Currently unavailable

4

Toro 140-9565

HARNESS-WIRE, DATA INTERFACE

$60.99

$

Usually ships in 0 days

0

5

Toro 145-5783

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

8

Toro 122-2323

HARNESS-WIRE, CAN TERMINATOR

$35.99

$

Usually ships in 0 days

0

9

Toro 147-0234

BUSBAR-8, RD

$363.99

$

Usually ships in 0 days

0

10

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 147-0273

CABLE-BATTERY,RD ASM

$130.99

$

Usually ships in 0 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

14

Toro 147-0370

BUSBAR-2, SWITCH

$83.99

$

Usually ships in 0 days

0

15

Toro 147-0341

BUSBAR-8, BK

$363.99

$

Usually ships in 0 days

0

99

Toro 144-3848

CHARGER-SINGLE, 120V

Note: Not illustrated

$

$

Not available

99:1

Toro 137-7983

CORD-AC, 120V

Note: Not illustrated

$95.99

$

Usually ships in 3-6 days

0

99:2

Toro 147-0227

CABLE, DC-HYPERCELL

Note: Not illustrated

$412.99

$

Usually ships in 0 days

0
