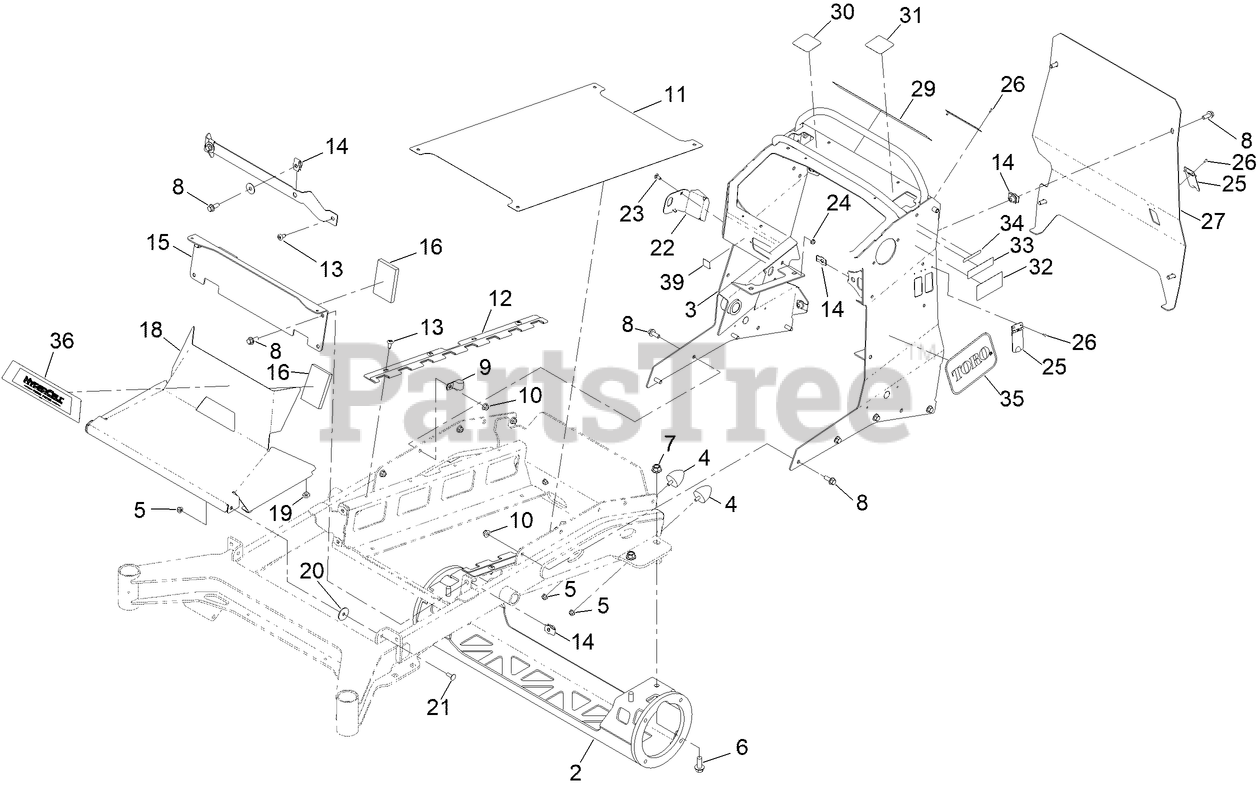

18562 - Toro 48" GrandStand Revolution Stand-On Mower (SN: 414800000 - 999999999) Frame Assembly Parts Diagram

48" GrandStand Revolution Stand-On Mower

Frame Assembly Parts Diagram

  • Title

2

Toro 144-3840-01

FRAME-AXLE ASM [RED]

$

$

Currently unavailable

3

Toro 144-1580

TOWER ASM

$941.99

$

Usually ships in 3-6 days

0

4

Toro 114-1926

BUMPER-RUBBER

$30.99

$

In Stock, Qty 20+

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

7

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 11

0

8

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

9

Toro 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 145-3403-03

PLATE-SKID

$64.99

$

Usually ships in 3-6 days

0

12

Toro 144-3874-03

BRACKET-RETENTION, BATTERY

$44.99

$

Usually ships in 3-6 days

0

13

Toro 138-9753

SCREW

$1.49

$

In Stock, only 4 left!

0

14

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 144-6957-03

PLATE-BATTERY MNT

$67.99

$

Usually ships in 3-6 days

0

16

Toro 100-2196

PAD-FOAM

$15.99

$

Usually ships in 3-6 days

0

18

Toro 144-7023-03

COVER-MOTOR CONTROLLER

$155.99

$

Usually ships in 3-6 days

0

19

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 7

0

20

Toro 107-3002

WASHER-NYLON

$3.49

$

In Stock, only 4 left!

0

21

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

22

Toro 144-6862

PLATE-LATCH

$20.99

$

Usually ships in 3-6 days

0

23

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 144-6628

PLATE-COVER, SPRING

$13.99

$

Usually ships in 3-6 days

0

26

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

27

Toro 144-3876-03

PLATE-COVER, PLATE

$137.99

$

Usually ships in 3-6 days

0

29

Toro 144-7002

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

30

Toro 144-7004

DECAL-OPC CONTROL, RIGHT

$6.49

$

Usually ships in 3-6 days

0

31

Toro 144-7003

DECAL-OPC CONTROL, LEFT

$6.49

$

Usually ships in 3-6 days

0

32

Toro 147-0289

DECAL-CHARGING PORT

$6.49

$

Usually ships in 3-6 days

0

33

Toro 144-7008

DECAL-SERVICE, SHUT-OFF

$7.99

$

Usually ships in 3-6 days

0

34

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

35

Toro 145-3437

DECAL-TORO LOGO

$8.49

$

Usually ships in 3-6 days

0

36

Toro 144-7015

DECAL-HYPERCELL 1900

$11.99

$

Usually ships in 3-6 days

0

39

Toro 147-0290

DECAL-LIGHT, WARNING

$7.49

$

Usually ships in 3-6 days

0
