18564 - Toro 60" GrandStand Revolution Stand-On Mower (SN: 414300000 - 999999999) 60 Inch Deck Assembly Parts Diagram

60" GrandStand Revolution Stand-On Mower

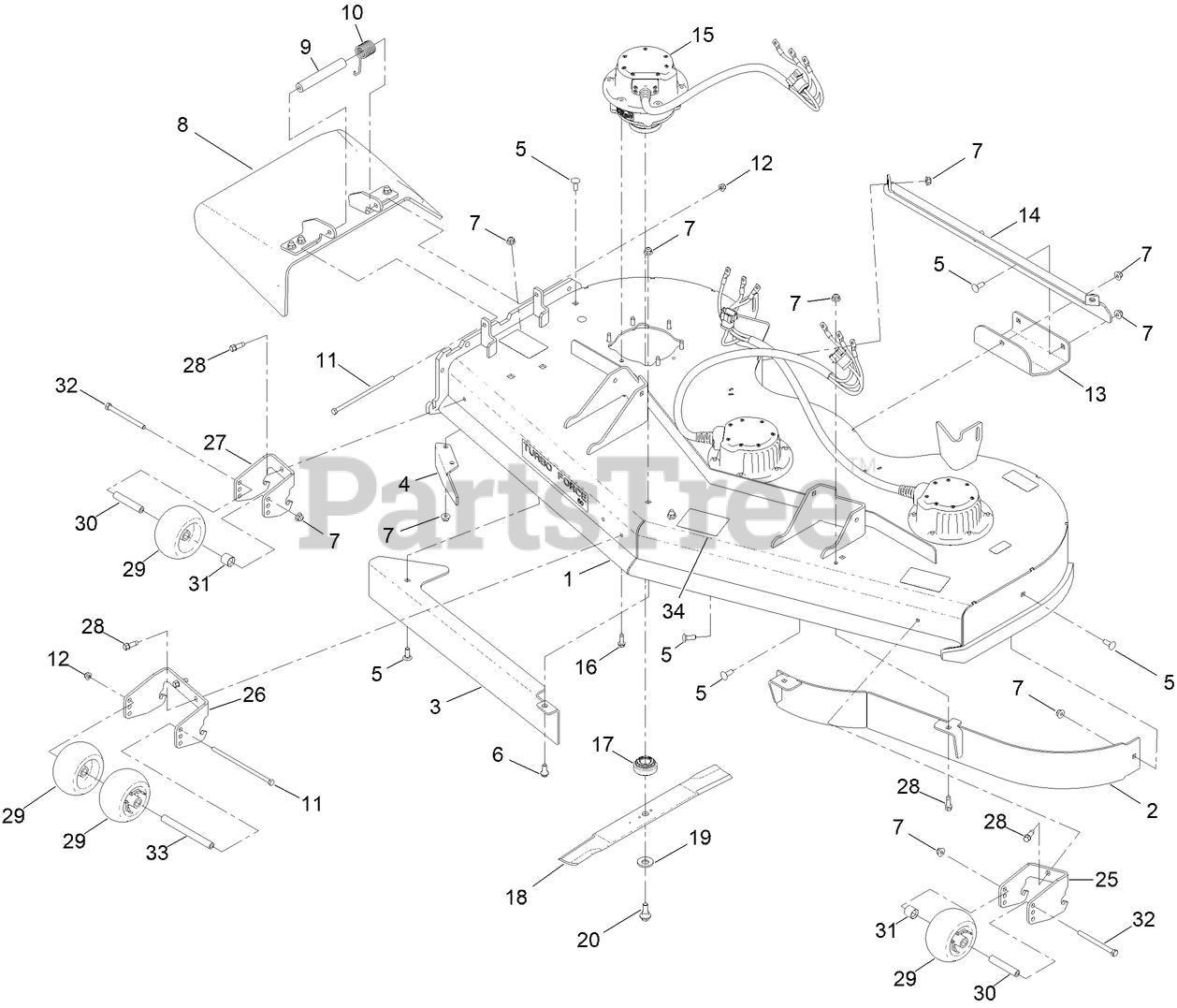

60 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 145-3421

DECK ASM, 60IN

$2072.99

$

Usually ships in 3-6 days

0

2

Toro 145-3490-01

BAFFLE ASM, 60IN [RED]

$262.99

$

Usually ships in 3-6 days

0

3

Toro 139-8106-01

PLATE-BAFFLE, FORMED [RED]

$73.99

$

Usually ships in 3-6 days

0

4

Toro 130-6594-01

BAFFLE-DISCHARGE

$23.99

$

In Stock, only 2 left!

0

5

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 8

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 147-1642

RUBBER DEFLECTOR ASM

$181.99

$

In Stock, only 2 left!

0

1

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, only 1 left!

0

2

Toro 106-3246-01

DEFLECTOR

$68.99

$

In Stock, only 2 left!

0

3

Toro 106-3248-03

STRAP-DISCHARGE

$30.99

$

In Stock, only 2 left!

0

4

Toro 139-8114

DEFLECTOR-DECK, RUBBER
(Superseded to 161-3464)

$63.99

$

In Stock, only 1 left!

0

5

Toro 147-0386-01

PLATE-HINGE, REAR

$15.99

$

Usually ships in 3-6 days

0

6

Toro 147-0387-01

PLATE-HINGE, FRONT

$15.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

10

Toro 108-4052

SPRING-TORSION

$27.99

$

In Stock, only 2 left!

0

11

Toro 322-50

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 114-1908-01

SKID

$91.99

$

Usually ships in 3-6 days

0

14

Toro 130-6647-01

BRACKET-SKID

$86.99

$

Usually ships in 3-6 days

0

15

Toro 147-1689

MOTOR/GEN-48V,

$1592.99

$

Usually ships in 3-6 days

0

16

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

17

Toro 145-3439

RETAINER-BLADE

$17.99

$

Usually ships in 3-6 days

0

18

Toro 145-3505-03

BLADE-20.5IN, MED SAIL

$33.99

$

Usually ships in 3-6 days

0

19

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 1 left!

0

20

Toro 145-3499

SCREW-SHOULDER,HWH

$9.49

$

Usually ships in 3-6 days

0

25

Toro 114-5204-01

BRACKET-WHEEL, LH

$76.99

$

In Stock, only 3 left!

0

26

Toro 114-5208-01

BRACKET-WHEEL, CENTER

$76.99

$

Usually ships in 3-6 days

0

27

Toro 114-5213-01

BRACKET-WHEEL, RH

$76.99

$

In Stock, only 3 left!

0

28

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

29

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

30

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 6

0

31

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

In Stock, Qty 6

0

32

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

33

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 8

0

34

Toro 112-3858

DECAL-SCALP, ANTI

$23.99

$

Usually ships in 3-6 days

0
