186-708-000 - Yard Machines Walk-Behind Mower, Electric (1996) General Assembly Parts Diagram

Walk-Behind Mower, Electric

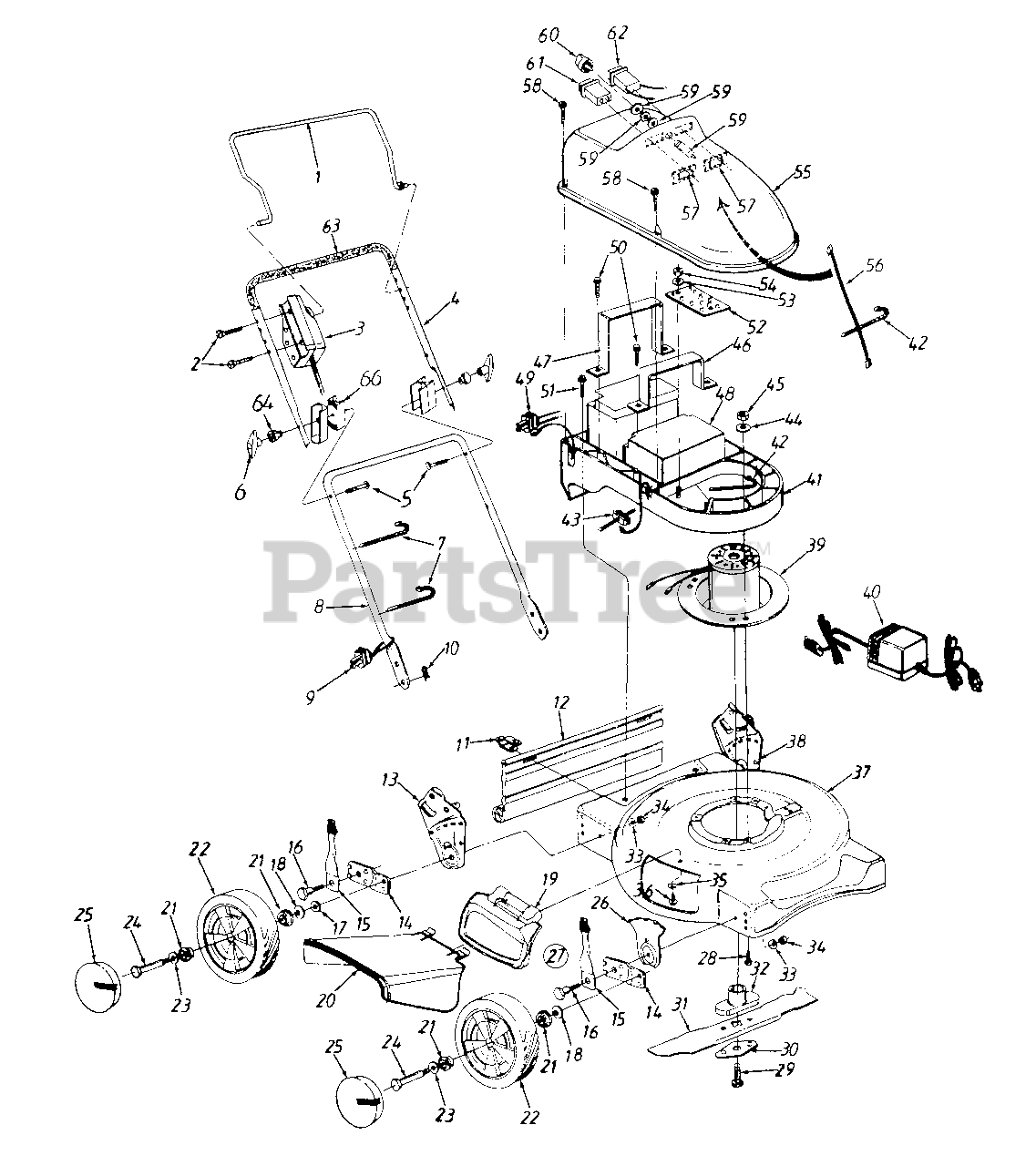

General Assembly Parts Diagram

  • Title

1

MTD 747-0622

Control Handle
(Superseded to 747-0622-0637)

Note: New Part

Variations

MTD 747-0622-0637

Control Handle - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0605

C-Sunk Scr. 1/4-20 x 1.8" Lg.

$4.49

$

In Stock, only 4 left!

0

3

MTD 625-0010

Switch Ass'y.

Note: New Part

$

$

Currently unavailable

4

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-1174

Carr. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

6

MTD 720-0276

Handle Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

7

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

8

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

9

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

10

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

11

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

12

MTD 731-1028

Rear Flap

$34.99

$

In Stock, only 1 left!

0

13

MTD 682-3000A

Handle Brkt. Ass'y. - R.H.
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

14

MTD 15262B

Wheel Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

15

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

16

MTD 738-0507B

Shld. Bolt .5" Dia. x .43" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0258

Fl-Wash. .385" I.D. x 1" O.D.

$4.49

$

Usually ships in 3-6 days

0

18

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 682-7002

Mulching Plug Ass'y.

$

$

Not available

20

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

21

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

22

MTD 734-1513B

Wheel Ass'y.
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

23

MTD 736-0504

Wave Wash. .51" I.D. x .75" O.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

24

MTD 738-0213

Shld. Bolt .498" Dia. x 1.45

$7.49

$

In Stock, Qty 5

0

25

MTD 720-0249

Hub Cap
(Superseded to 920-0249)

$

$

Not available

26

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

27

MTD 14578

Height Adj. Ass'y. Comp.- R.F.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.F.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

28

MTD 710-0654A

Hex Wash. Self-Tap Scr. 3/8-16 x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

29

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

30

MTD 736-0524

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

31

MTD 742-0743

18" Blade
(Superseded to 942-0743)

$

$

Not available

32

MTD 748-0380

Blade Adapter

$

$

Not available

33

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

34

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 10

0

36

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

37

MTD 682-0018

Deck Ass'y.

Variations

MTD 682-0018-0483

No Longer Available DECK-ASSY- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0018-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0018-0499

No Longer Available DECK-ASSY- - CUB BEIGE (0499)

$

$

Not available

MTD 682-0018-0638

No Longer Available DECK-ASSY- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0018-0662

18" Deck Assy. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0018-0665

No Longer Available DECK-ASSY- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0018-0691

No Longer Available DECK-ASSY- - BLACK JACK (0691)

$

$

Not available

$

$

38

MTD 682-3001A

Handle Brkt. Ass'y. - L.H.
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

39

MTD 624-0033

Motor Ass'y.

$

$

Currently unavailable

40

MTD 725-1684

Charger
(Superseded to 925-1684)

$

$

Not available

41

MTD 731-1593

Tray Ass'y.

Note: New Part

$

$

Not available

42

MTD 726-0317

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

43

MTD 629-0235

Harness Ass'y. Switch

Note: New Part

$

$

Not available

44

MTD 736-3050

Fl-Wash. .406" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 712-0181

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

46

MTD 682-9016

Front Bracket Ass'y.

Note: New Part

$

$

Not available

47

MTD 682-9017

Rear Bracket Ass'y.

Note: New Part

$

$

Not available

48

MTD 625-0017

Battery Ass'y.

Note: New Part

$

$

Not available

49

MTD 629-0251

Charger Plug

Note: New Part

$

$

Not available

50

MTD 710-0895

Hex Hd. Hi-Lo Scr. 1/4 x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

51

MTD 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$6.99

$

In Stock, only 4 left!

0

52

MTD 725-1689

Circuit Board

Note: New Part

$

$

Not available

53

MTD 736-0534

Fl-Wash. .21" I.D. x .56" O.D.

$

$

Not available

54

MTD 712-3060

Palnut Self-Threading

$

$

Not available

55

MTD 731-1594

Motor Cover

$

$

Not available

56

MTD 629-0249

Key Switch Harness Ass'y.

$

$

Not available

57

MTD 725-1687

Mounting Clamp

$

$

Not available

58

MTD 710-0589

Hex AB-Tap Scr. #10 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

59

MTD 725-1676

Key Switch

$

$

Not available

60

MTD 725-1341B

Key

$9.99

$

In Stock, only 2 left!

0

61

MTD 725-1685

Meter

$

$

Not available

62

MTD 725-1686

Meter

$

$

Not available

63

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

64

MTD 731-1388

Insulator Knob

$

$

Not available

66

MTD 731-1267

Lower Handle Insulator

$

$

Not available
