186-708-190 - White Outdoor 18" Walk-Behind Mower, Battery (1996) Main Assembly Parts Diagram

18" Walk-Behind Mower, Battery

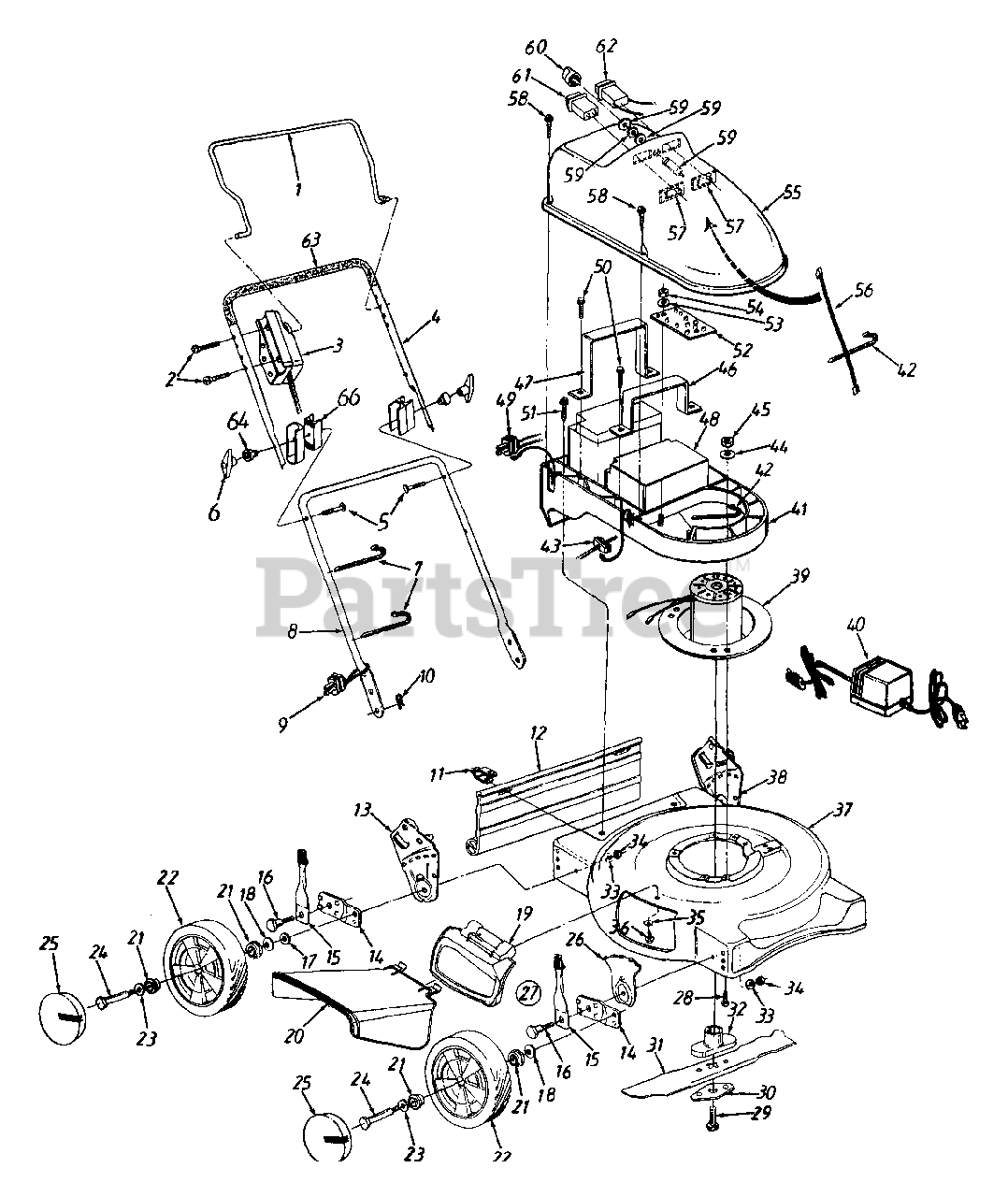

Main Assembly Parts Diagram

  • Title

1

MTD 747-0622-0637

Control Handle

$

$

Not available

2

MTD 710-0605

C-Sunk Scr. 1/4-20 x 1.8" Lg.

$4.49

$

In Stock, only 4 left!

0

3

MTD 625-0010

Switch Ass'y.

Note: NLA

$

$

Currently unavailable

4

MTD 749-0886

Upper Handle

Note: NLA

Variations

MTD 749-0886-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-0450

Carr. Bolt 5/16-18 x 3" Lg.

$5.99

$

Usually ships in 3-6 days

0

6

MTD 720-04072A

Hand Knob

$6.49

$

In Stock, Qty 20+

0

7

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

8

MTD 749-0885-0637

Lower Handle

$

$

Not available

9

MTD 925-1206

Plug

$

$

Not available

10

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

11

MTD 17098P

Hinge Clip

$

$

Not available

12

MTD 731-1028

Rear Flap

$34.99

$

In Stock, only 1 left!

0

13

MTD 753-05962

Handle Brkt. Ass'y. - R.H.

$65.99

$

Usually ships in 3-6 days

0

14

MTD 15262B

Wheel Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

15

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, Qty 8

0

16

MTD 938-0507B

Shld. Bolt .5" Dia. x .43" Lg.
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0258

Fl-Wash. .385" I.D. x 1" O.D.

$4.49

$

Usually ships in 3-6 days

0

18

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 682-7002

Mulching Plug Ass'y.

$

$

Not available

20

MTD 731-1409B

Chute Deflector

$26.99

$

In Stock, Qty 5

0

21

MTD 941-0484

Ball Bearing

$6.99

$

In Stock, only 2 left!

0

22

MTD 734-1793

Wheel Ass'y.

Note: NLA

$

$

Not available

23

MTD 936-0504

Wave Wash. .51" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 12

0

24

MTD 938-0102

Shld. Bolt .498" Dia. x 1.45
(Superseded to 738-0102)

$

$

Not available

25

MTD 731-0981C

Hub Cap

$9.99

$

In Stock, Qty 6

0

26

MTD 787-01290A

Height Adj. Plate

$11.99

$

In Stock, only 2 left!

0

27

MTD 753-06761

Height Adj. Ass'y. Comp. - R.F.

$60.99

$

In Stock, Qty 7

0

27

MTD 753-06761

Height Adj. Ass'y. Comp. - L.F.

$60.99

$

In Stock, Qty 7

0

28

MTD 710-0654A

Hex Wash. Self-Tap Scr. 3/8-16 x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

29

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

30

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

31

MTD 942-0743

18" Blade

$

$

Not available

32

MTD 748-0380A

Blade Adapter

Note: NLA

$

$

Not available

33

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38" O.D.

$

$

Not available

34

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 12

0

36

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

37

MTD 682-0018

Deck Ass'y.

Note: NLA

Variations

MTD 682-0018-0483

No Longer Available DECK-ASSY- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0018-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0018-0499

No Longer Available DECK-ASSY- - CUB BEIGE (0499)

$

$

Not available

MTD 682-0018-0638

No Longer Available DECK-ASSY- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0018-0662

18" Deck Assy. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0018-0665

No Longer Available DECK-ASSY- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0018-0691

No Longer Available DECK-ASSY- - BLACK JACK (0691)

$

$

Not available

$

$

38

MTD 753-05962

Handle Brkt. Ass'y. - L.H.

$65.99

$

Usually ships in 3-6 days

0

39

MTD 624-0033

Motor Ass'y.

Note: NLA

$

$

Currently unavailable

40

MTD 925-1684

Charger

$

$

Not available

41

MTD 731-1593

Tray Ass'y.

Note: NLA

$

$

Not available

42

MTD 726-0317

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

43

MTD 629-0235

Harness Ass'y. Switch

Note: NLA

$

$

Not available

44

MTD 736-3050

Fl-Wash. .406" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 912-0181

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

46

MTD 682-9016

Front Bracket Ass'y.

Note: NLA

$

$

Not available

47

MTD 682-9017

Rear Bracket Ass'y.

Note: NLA

$

$

Not available

48

MTD 625-0017

Battery Ass'y.

Note: NLA

$

$

Not available

49

MTD 629-0251

Charger Plug

Note: NLA

$

$

Not available

50

MTD 710-0895

Hex Hd. Hi-Lo Scr. 1/4 x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

51

MTD 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$6.99

$

In Stock, only 4 left!

0

52

MTD 725-1689

Circuit Board

Note: NLA

$

$

Not available

53

MTD 736-0534

Fl-Wash. .21" I.D. x .56" O.D.

Note: NLA

$

$

Not available

54

MTD 712-3060

Palnut Self-Threading

$

$

Not available

55

MTD 731-1594

Motor Cover

Note: NLA

$

$

Not available

56

MTD 629-0249

Key Switch Harness Ass'y.

Note: NLA

$

$

Not available

57

MTD 725-1687

Mounting Clamp

Note: NLA

$

$

Not available

58

MTD 710-0589

Hex AB-Tap Scr. #10 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

59

MTD 725-1676

Key Switch

Note: NLA

$

$

Not available

60

MTD 725-1341B

Key

$9.99

$

In Stock, only 2 left!

0

61

MTD 725-1685

Meter

Note: NLA

$

$

Not available

62

MTD 725-1686

Meter

Note: NLA

$

$

Not available

63

MTD 720-0295

Foam Grip

$30.99

$

Usually ships in 3-6 days

0

64

MTD 731-1388

Insulator Knob

$

$

Not available

?65

MTD 731-1268

Upper Handle Insulator

$15.99

$

Usually ships in 3-6 days

0

66

MTD 731-1267

Lower Handle Insulator

$

$

Not available

MTD 925-1690

Fuse

$

$

Not available
