1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Front Axle And Connections Parts Diagram

Garden Tractor

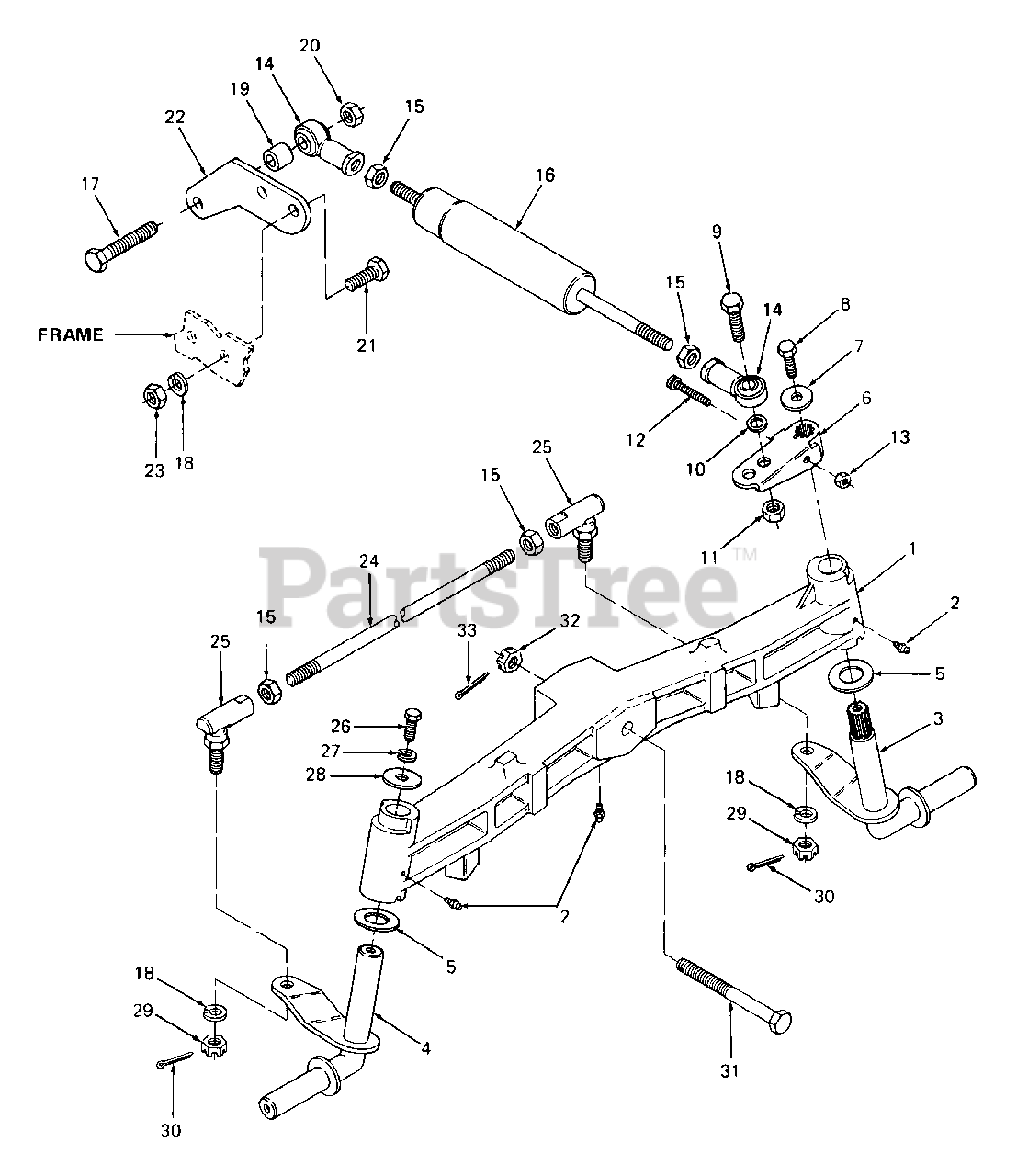

Front Axle And Connections Parts Diagram

  • Title

1

Cub Cadet 759-3549

Axle, Front

Note: Includes Ref No. 2 (Qty 3).

Variations

Cub Cadet 759-3549-0637

Axle Front - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 703-1748

Knuckle, Steering - LH

$

$

Not available

4

Cub Cadet 703-1749

Knuckle, Steering - RH

$

$

Not available

5

Cub Cadet 736-0163

Washer, Thrust, 1.03 x 1.62 x .03 Thk HDN

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-1918

Arm, Power Steering

Variations

Cub Cadet 703-1918-0637

ARM-POWER STEERING(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25 x .157 Thk

$8.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3118

Bolt, Hex Patch, 3/8-16 x 1.0 Lg GR5

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3177

Bolt, Hex, 1/2-20 x 1.5 Lg GR5

$

$

Not available

10

Cub Cadet 736-3003

Washer, Flat, .531 x .688 x .054 Thk

$

$

Not available

11

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

12

Cub Cadet 710-3212

Screw, Socket Hd Cap, 1/4-20 x 2.0 Lg

$5.49

$

In Stock, Qty 5

0

13

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 723-3053

Alignaball End, 1/2-20
(Superseded to 923-3053)

$99.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.49

$

In Stock, Qty 8

0

16

Cub Cadet 717-3041A

Cylinder, Power Steering
(Superseded to 717-3041A-0637)

Variations

Cub Cadet 717-3041A-0637

Power Steering Cylinder - POWDER BLACK (0637)

$310.99

$

Usually ships in 3-6 days

0

$310.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3104

Screw, Hex Cap, 1/2-13 x 2.25 Lg GR5

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 750-3058

Spacer, .505 x .75 x .780 Lg

$

$

Not available

20

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 703-1917

Bracket, Power Steering Mtg
(Superseded to 703-1917A-0637)

$

$

Not available

23

Cub Cadet 712-3036

Nut, Hex, 1/2-13 GR5
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 747-3139

Rod, Tie

$

$

Not available

25

Cub Cadet 723-3015

Ball Joint
(Superseded to 923-3015)

$

$

Not available

26

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-3039

Washer, Flat, .406 x 1.5 x .12 Thk

$4.99

$

In Stock, Qty 18

0

29

Cub Cadet 712-3012

Nut, Hex Castle, 1/2-20 GR5
(Superseded to 912-3012)

$12.99

$

In Stock, only 1 left!

0

30

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia x 1.25 Lg

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 710-3019

Bolt, Hex, 3/4-10 x 5.25 Lg GR5

$

$

Not available

32

Cub Cadet 712-3011

Nut, Hex Castle, 3/4-10

$

$

Not available

33

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia x 1.5 Lg
(Superseded to 914-3001)

$3.49

$

Usually ships in 3-6 days

0
