1862 (142-683-100) - Cub Cadet Garden Tractor (SN: 821060 - 836000) Transmission-Differential Parts Diagram

Garden Tractor

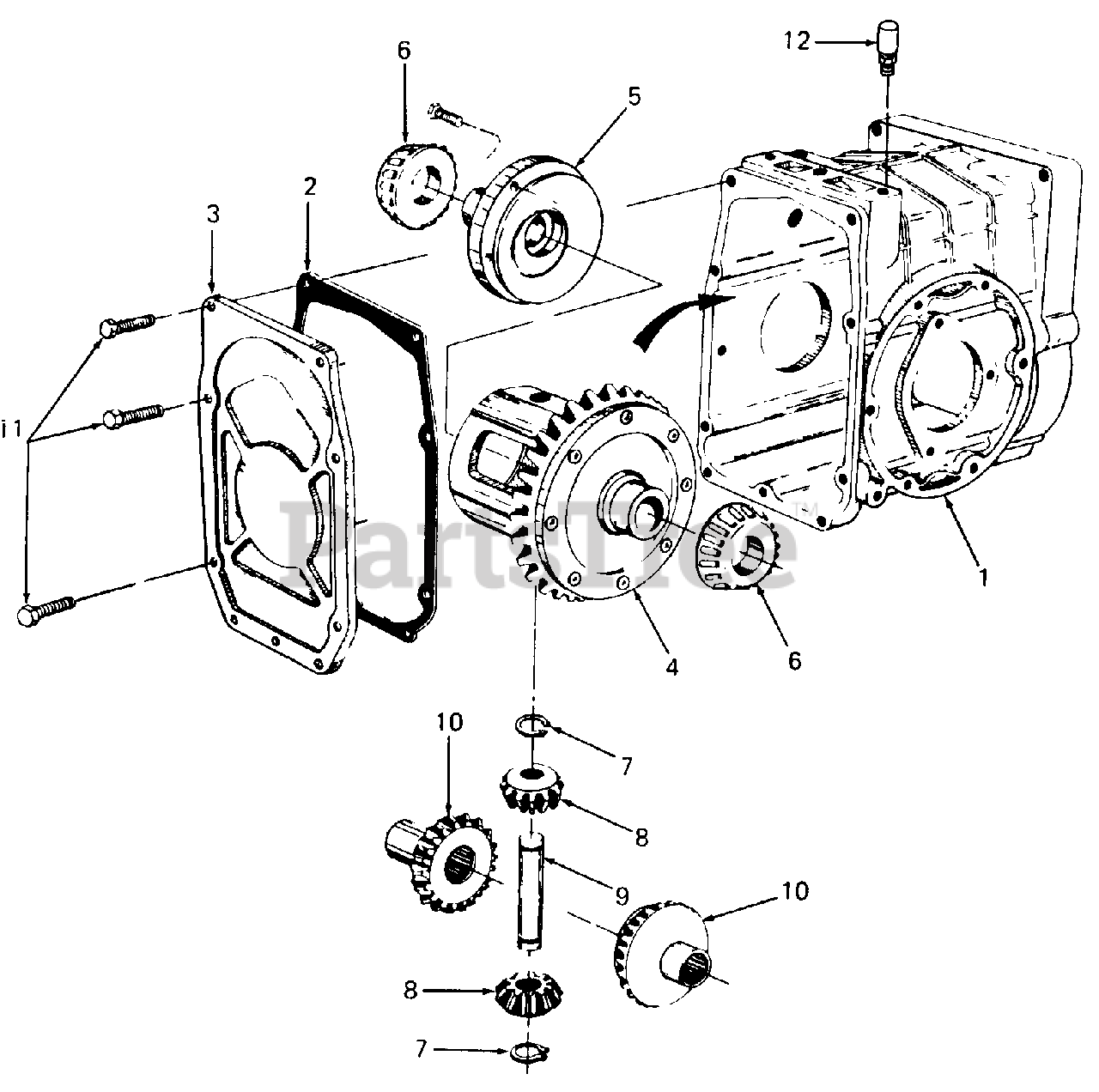

Transmission-Differential Parts Diagram

  • Title

1

Cub Cadet 717-3204A

Housing Assy, Rear Transaxle

$

$

Not available

2

Cub Cadet 721-3015

Gasket, Rear Cover
(Superseded to 921-3015)

$17.99

$

In Stock, only 4 left!

0

3

Cub Cadet 703-0905

Plate, Rear Cover

$

$

Not available

4

Cub Cadet 717-3217

Gear Assy, Ring w/Case

$

$

Not available

5

Cub Cadet 717-3137

Plate, Differential Flange

$

$

Not available

Cub Cadet 710-0643

Bolt, Hex Patch, 5/16-18 X 1.0 Lg GR5

$7.49

$

In Stock, Qty 13

0

6

Cub Cadet 741-0369

Cone, Roller Brg

Note: (Used with Gray Iron Differential Bearing Retainer)

$

$

Not available

Cub Cadet 741-3038

Cone, Roller Brg
(Superseded to 941-3038)

Note: (Used with Aluminum Differential Bearing Retainer)

$60.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 716-0133

Ring, Retaining, 11/16

$

$

Not available

8

Cub Cadet 717-3113

Gear, Pinion - 10T

$

$

Not available

9

Cub Cadet 717-3133

Shaft, Cross

$

$

Not available

10

Cub Cadet 717-3112

Gear, Side - 16T

$

$

Not available

11

Cub Cadet 710-3117

Bolt, Hex Patch, 3/8-16 X .62 Lg GR5

$

$

Not available

12

Cub Cadet 723-3021

Breather

$24.99

$

Usually ships in 3-6 days

0
