1863 (143-664-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Fuel Tank Parts Diagram

Garden Tractor

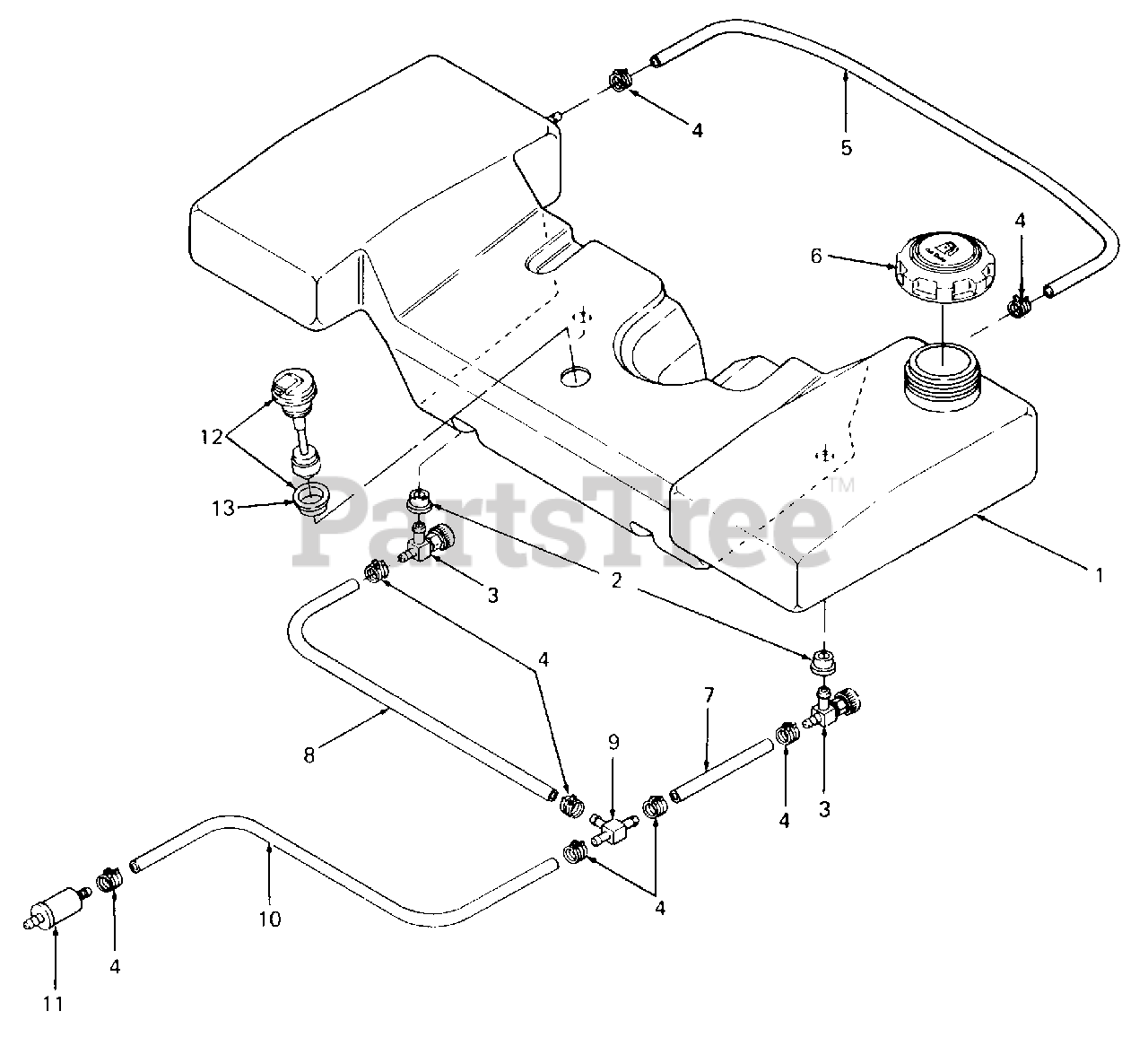

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 751-3106

Tank,Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 759-3330

Line, Fuel -24" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

6

Cub Cadet 751-3118

Cap, Fuel
(Superseded to 951-3124E)

$38.99

$

In Stock, Qty 19

0

7

Cub Cadet 759-3330

Line, Fuel -5" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

8

Cub Cadet 759-3330

Line, Fuel -19" Lg

Note: (Order Bulk Fuel Line Pan No. 759-3330, 10 Ft Lg)

$

$

Not available

9

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$

$

Not available

10

Cub Cadet 759-3330

Line, Fuel -41" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

11

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

12

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

13

Cub Cadet 759-3616

Bushing, Rubber
(Superseded to 735-0699)

$17.99

$

In Stock, Qty 20+

0
