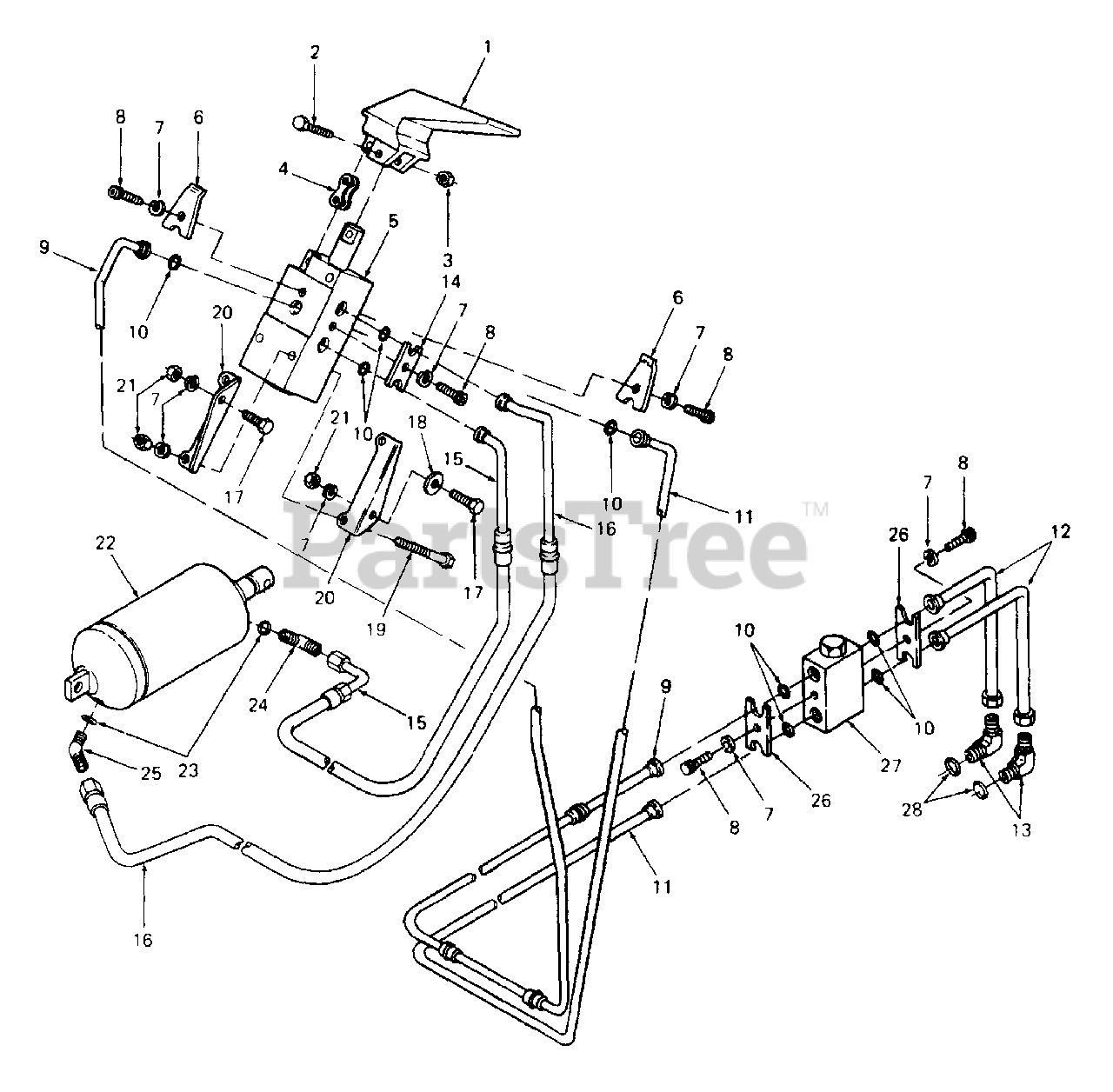

1863 (14A-664-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Hydraulic Lift Controls Parts Diagram

Garden Tractor

Hydraulic Lift Controls Parts Diagram

  • Title

1

Cub Cadet 731-3100A

Handle, Valve
(Superseded to 931-3100A)

$

$

Not available

Cub Cadet 779-3534

Label, Lift Handle
(Superseded to 779-3534A)

$

$

Not available

2

Cub Cadet 710-0749

Screw, Hex Cap, #10-24 X 1.0 Lg
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

5

Cub Cadet 717-3308A

Valve, Lift

Note: (See "Hydraulic Lift Valve" illustration and parts list for component parts)

$

$

Not available

6

Cub Cadet 703-1802

Clamp, Single

$22.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet 710-3218

Screw, Socket Hd Cap, 1/4-20 X .62 Lg GR8

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 727-3066

Tube Assy, Return

$220.99

$

In Stock, only 1 left!

0

Cub Cadet 735-3007

Spacer, Rubber
(Superseded to 935-3007)

$8.99

$

In Stock, only 3 left!

0

Cub Cadet 726-3020

Strap, Lock

$

$

Currently unavailable

10

Cub Cadet 721-3021

O-Ring, .301 X .070 Dia
(Superseded to 921-3021)

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet 727-3067

Tube Assy, Pressure

$104.99

$

In Stock, only 2 left!

0

12

Cub Cadet 727-3068

Tube Assy, Adapter

$48.99

$

In Stock, only 4 left!

0

13

Cub Cadet 727-3012

Elbow, Tube, 90 Degree

$28.99

$

In Stock, only 4 left!

0

14

Cub Cadet 703-1803

Clamp, Double
(Superseded to 903-1803)

$

$

Not available

15

Cub Cadet 727-3046

Hose, Cylinder - Contracting

$

$

Not available

16

Cub Cadet 727-3045

Hose, Cylinder - Extending

$

$

Not available

17

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0641

Screw, Hex Cap, 1/4-20 X 2.25 Lg

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 703-1801

Bracket, Valve Mtg

$

$

Not available

21

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 11

0

22

Cub Cadet 717-3005

Cylinder, Hydraulic

Note: (See "Hydraulic Cylinder" illustration and parts list for component parts)

$

$

Not available

23

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

24

Cub Cadet 727-3006

Elbow, 90 Degree w/O-Ring

$

$

Not available

25

Cub Cadet 727-3007

Elbow, 45 Degree w/O-Ring

$

$

Not available

26

Cub Cadet 703-1802

Clamp, Valve Side

$22.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-3331

Valve, Relief

$

$

Not available

28

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.99

$

In Stock, Qty 6

0
