18745 TE - Toro 122cm Z Master Revolution Zero-Turn Mower (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

122cm Z Master Revolution Zero-Turn Mower

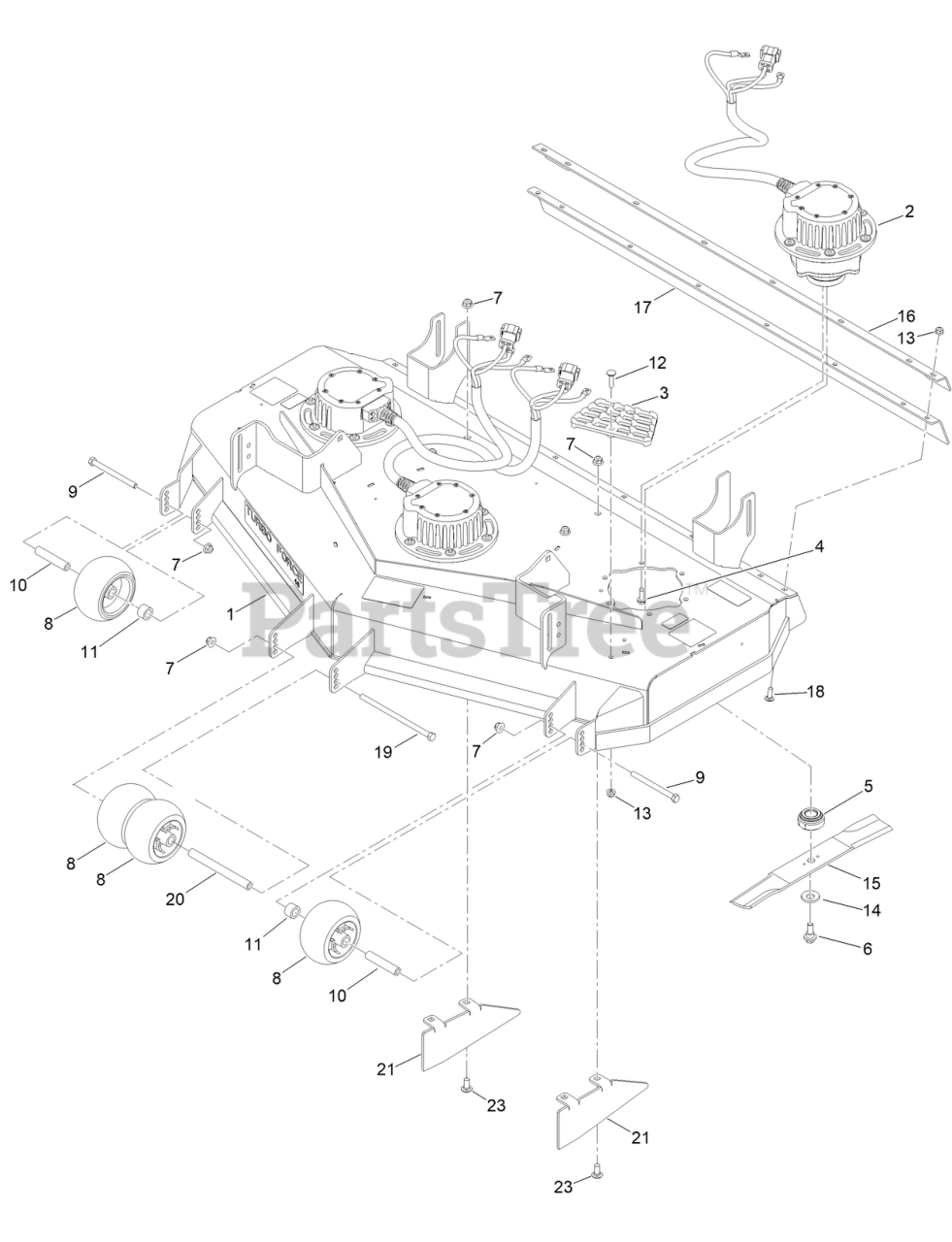

Deck Assembly Parts Diagram

  • Title

1

Toro 161-6760

DECK ASM-48IN, RD

$2056.99

$

Usually ships in 3-6 days

0

2

Toro 147-1689

MOTOR/GEN-48V,

$1592.99

$

Usually ships in 3-6 days

0

3

Toro 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

0

4

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

5

Toro 145-3439

RETAINER-BLADE

$17.99

$

Usually ships in 3-6 days

0

6

Toro 145-3499

SCREW-SHOULDER,HWH

$9.49

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

9

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

10

Toro 133-2129

TUBE-SHAFTING

$15.99

$

In Stock, only 4 left!

0

11

Toro 133-2128

TUBE-SPACER

$18.99

$

In Stock, only 2 left!

0

12

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 13

0

14

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 1 left!

0

15

Toro 145-3503-03

BLADE-16.5IN, MED SAIL

$29.99

$

Usually ships in 3-6 days

0

16

Toro 161-6801-01

DEFLECTOR, BRACKET-48RD

$

$

Currently unavailable

17

Toro 161-3558

GUARD-RUBBER

$45.99

$

Usually ships in 3-6 days

0

18

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

19

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 9

0

20

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 8

0

21

Toro 161-3416-01

BAFFLE-LONG

$

$

Currently unavailable

23

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 5

0
