18760 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 416241996 - 416295324) Deck Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

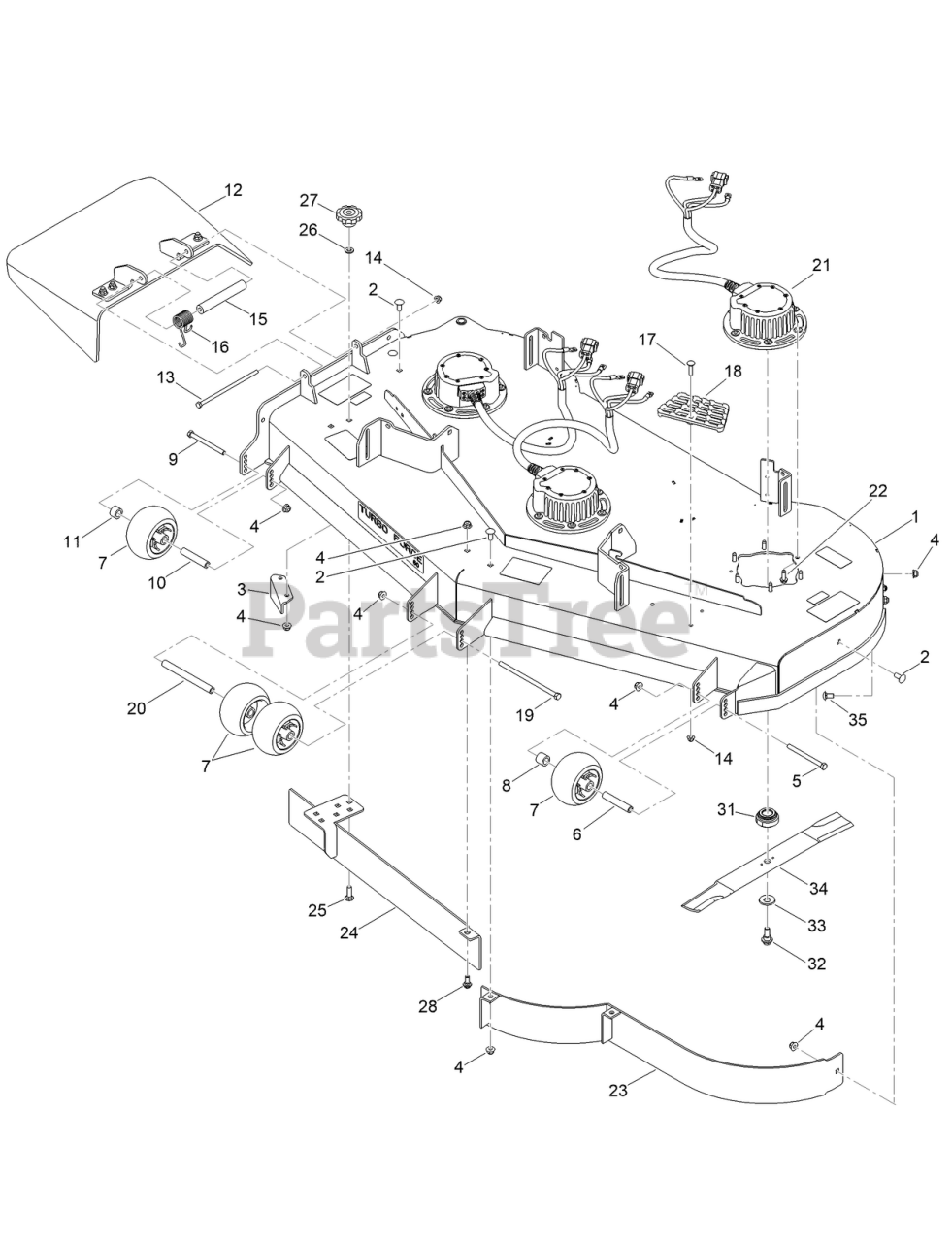

Deck Assembly Parts Diagram

  • Title

1

Toro 147-7825

DECK ASM-60IN

$2443.99

$

Usually ships in 0 days

0

2

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

3

Toro 107-8541-01

BAFFLE-DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

6

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

8

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

9

Toro 323-17

SCREW-HH

$6.49

$

In Stock, Qty 13

0

10

Toro 133-2129

TUBE-SHAFTING

$15.99

$

Usually ships in 3-6 days

0

11

Toro 133-2128

TUBE-SPACER

$18.99

$

Usually ships in 3-6 days

0

12

Toro 147-1642

RUBBER DEFLECTOR ASM

$175.99

$

In Stock, only 2 left!

0

13

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

16

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

19

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 15

0

20

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

21

Toro 147-1689

MOTOR/GEN-48V,

$1512.99

$

Usually ships in 3-6 days

0

22

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

23

Toro 114-5842-01

BAFFLE

$252.99

$

Usually ships in 3-6 days

0

24

Toro 145-3636-01

BAFFLE-TURBO FORCE
(Superseded to 147-7844-01)

$112.99

$

Usually ships in 0 days

0

25

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

26

Toro 100-4852

WASHER-HARDENED

$5.99

$

Usually ships in 3-6 days

0

27

Toro 109-1092

KNOB

$8.99

$

In Stock, only 2 left!

0

28

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

31

Toro 145-3439

RETAINER-BLADE

$17.99

$

Usually ships in 3-6 days

0

32

Toro 145-3499

SCREW-SHOULDER,HWH

$9.49

$

Usually ships in 0 days

0

33

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

34

Toro 145-3505-03

BLADE-20.5IN, MED SAIL

$33.99

$

Usually ships in 3-6 days

0

35

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0
