18850 TE - Toro 132cm GrandStand Revolution Stand-On Mower (SN: 414300000 - 999999999) Battery Assembly Parts Diagram

132cm GrandStand Revolution Stand-On Mower

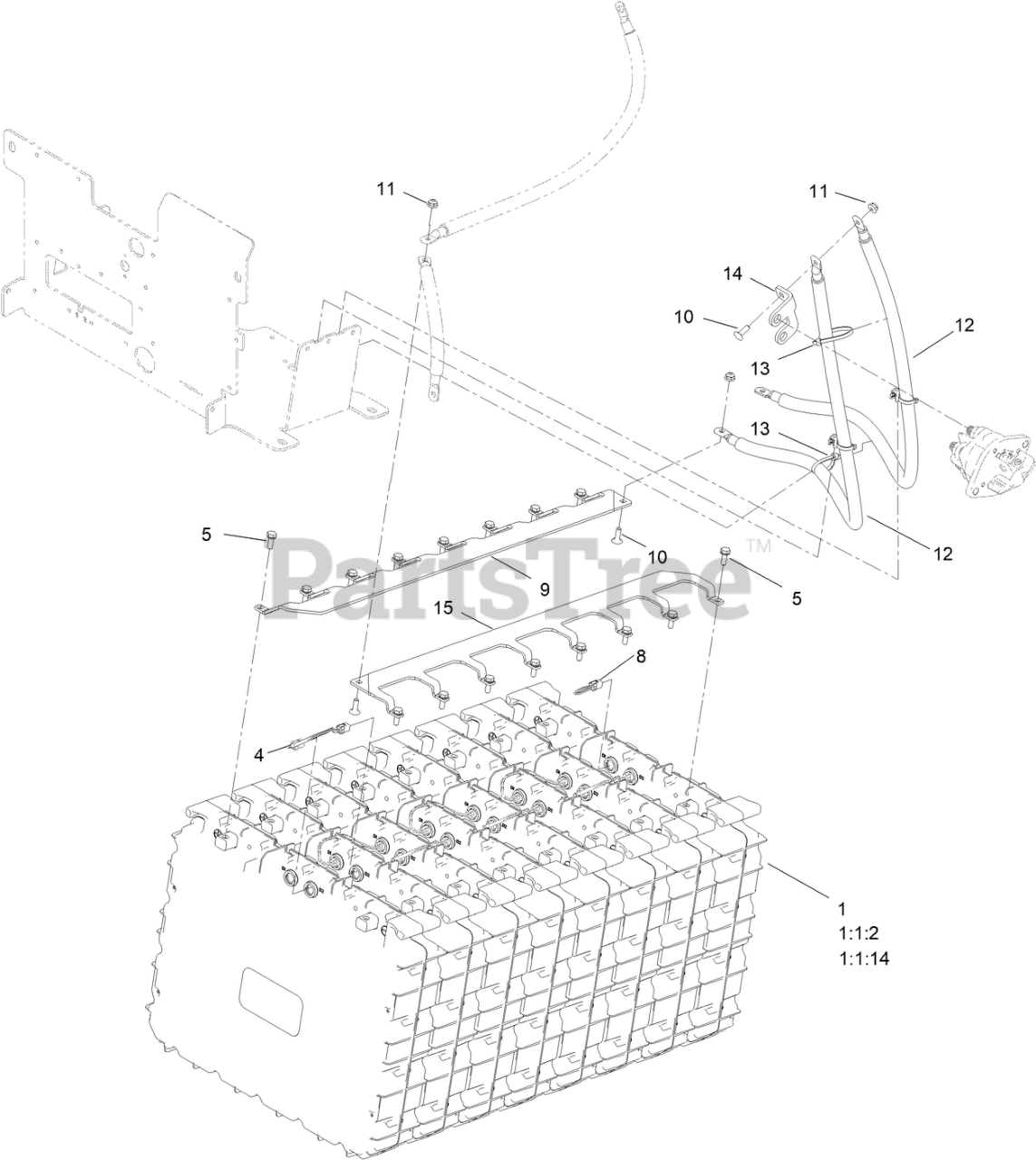

Battery Assembly Parts Diagram

  • Title

1

Toro 145-5320

BATTERY ASM

$2456.99

$

Usually ships in 0 days

0

1:1:2

Toro 145-5338

DECAL-WARNING, BATTERY

$8.49

$

Usually ships in 0 days

0

1:1:14

Toro 32180-466

NUT-MOUNTING, JWPF PANEL LOCK

$

$

Currently unavailable

4

Toro 140-9565

HARNESS-WIRE, DATA INTERFACE

$60.99

$

Usually ships in 0 days

0

5

Toro 145-5783

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

8

Toro 122-2323

HARNESS-WIRE, CAN TERMINATOR

$35.99

$

Usually ships in 0 days

0

9

Toro 147-0234

BUSBAR-8, RD

$363.99

$

Usually ships in 0 days

0

10

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 147-0273

CABLE-BATTERY,RD ASM

$130.99

$

Usually ships in 0 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 6

0

14

Toro 147-0370

BUSBAR-2, SWITCH

$83.99

$

Usually ships in 0 days

0

15

Toro 147-0341

BUSBAR-8, BK

$363.99

$

Usually ships in 0 days

0

99

Toro 147-7790

CHARGER-RC1200, 1200W

Note: Not illustrated

$1601.99

$

Usually ships in 0 days

0

99

Toro 147-7791

ADAPTER, AC, 250V/10A, EU TO UK

Note: Not illustrated

$47.99

$

Usually ships in 0 days

0

99

Toro 147-7792

ADAPTER, AC, 250V/10A, EU TO AUSTRALIA

Note: Not illustrated

$41.99

$

Usually ships in 0 days

0

99:1

Toro 147-6297

CORD-AC, 120V

Note: Not illustrated

$140.99

$

Usually ships in 0 days

0

99:2

Toro 147-0227

CABLE, DC-HYPERCELL

Note: Not illustrated

$412.99

$

Usually ships in 0 days

0
