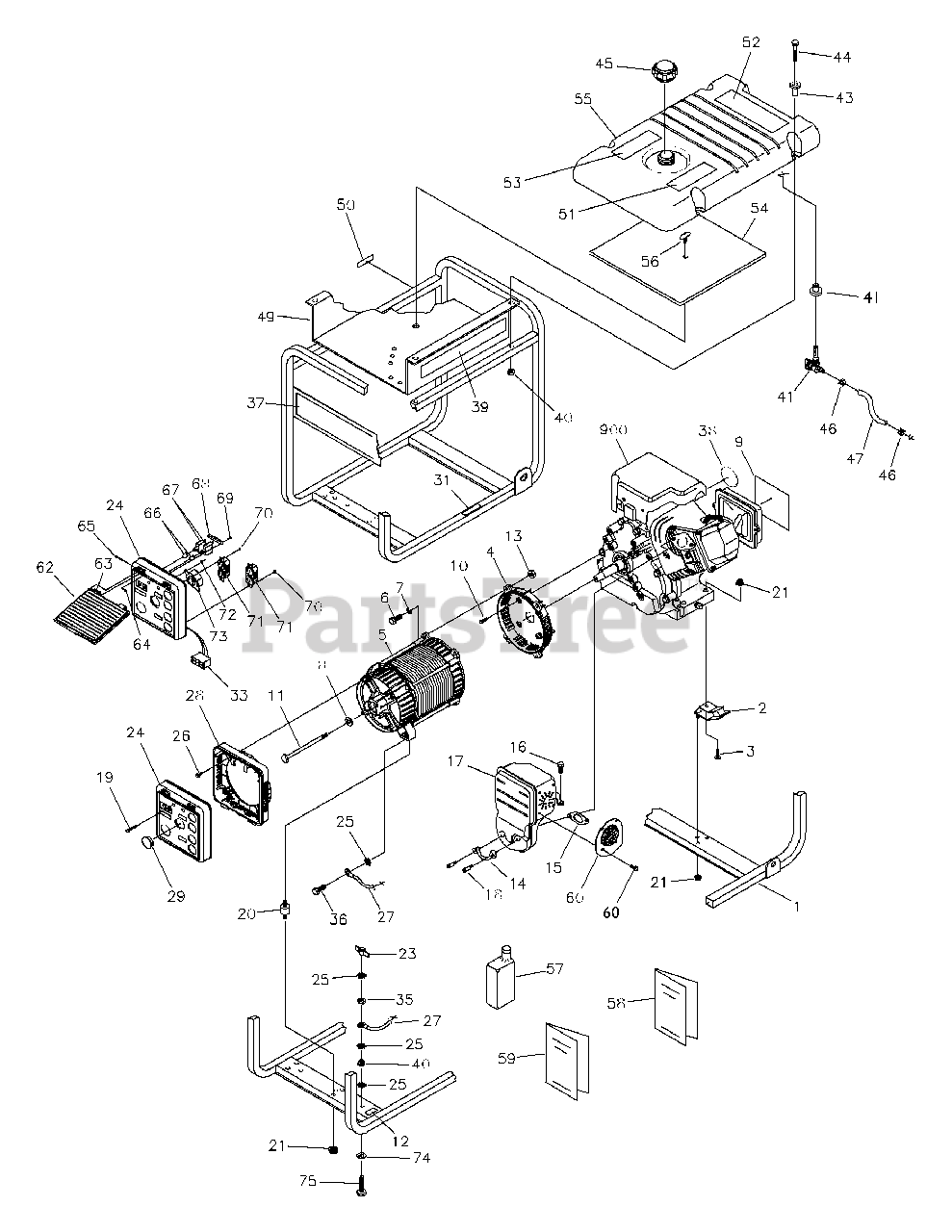

1892-0 - Generac 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M191955GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70642GS

MOUNT,Vibration

$31.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton ~NSP

ASSY, Alternator

Note: (See "Alternator")

$

$

Currently unavailable

6

Briggs & Stratton 43107GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192146GS

DECAL, Cover, Air Cleaner

$17.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 695400

TAB, Locking

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697255

GASKET, Exhaust
(Superseded to 794818)

$8.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 695312

SCREW

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 697252

ASSY, Muffler
(Superseded to 794949)

Note: (Includes Items 14, 15, 16 & 18)

$119.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 695399

SCREW

$20.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 191521GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

21

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 87680GS

NUT,Wing

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 191332AGS

PANEL, Control

$28.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 186790EGS

WIRE, Ground

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 191427GS

ADAPTER PANEL

$26.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 22695GS

HOUSING, Receptacle

$6.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 43146GS

SCREW

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 192601GS

DECAL, Billboard

$26.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192484GS

DECAL, Recoil

$12.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 192148GS

DECAL, Heat Shield

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,VLV, FUEL, SRV

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

45

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

46

Briggs & Stratton 48031CGS

CLAMP, Hose, Band
(Superseded to 691038)

$3.99

$

In Stock, Qty 7

0

47

Briggs & Stratton 30340GS

HOSE, Fuel
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

49

Briggs & Stratton 192981GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 73054GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton B1998GS

ASSY,Tank, Fuel
(Superseded to 193500GS)

Note: (Includes Item 41)

$

$

Not available

56

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 191958GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 275092

MANUAL, Engine

$

$

Not available

60

Briggs & Stratton 392390

ASSY, Arrester, Spark
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 191426GS

COVER, Control Panel

$18.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 189182GS

SPRING, Hinge Pin

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 189167GS

CLIP, Hinge Pin Retainer

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 189166GS

PIN, Hinge Cover

$3.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

67

Briggs & Stratton 75207GS

BREAKER, Circuit
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 84543CGS

SCREW

$2.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 189165GS

NUT, Pal

$3.49

$

In Stock, only 2 left!

0

71

Briggs & Stratton 68759GS

OUTLET, 120V, 20A

$24.99

$

In Stock, only 2 left!

0

72

Briggs & Stratton 189164GS

NUT, Pal

$3.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

75

Briggs & Stratton 45757GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
