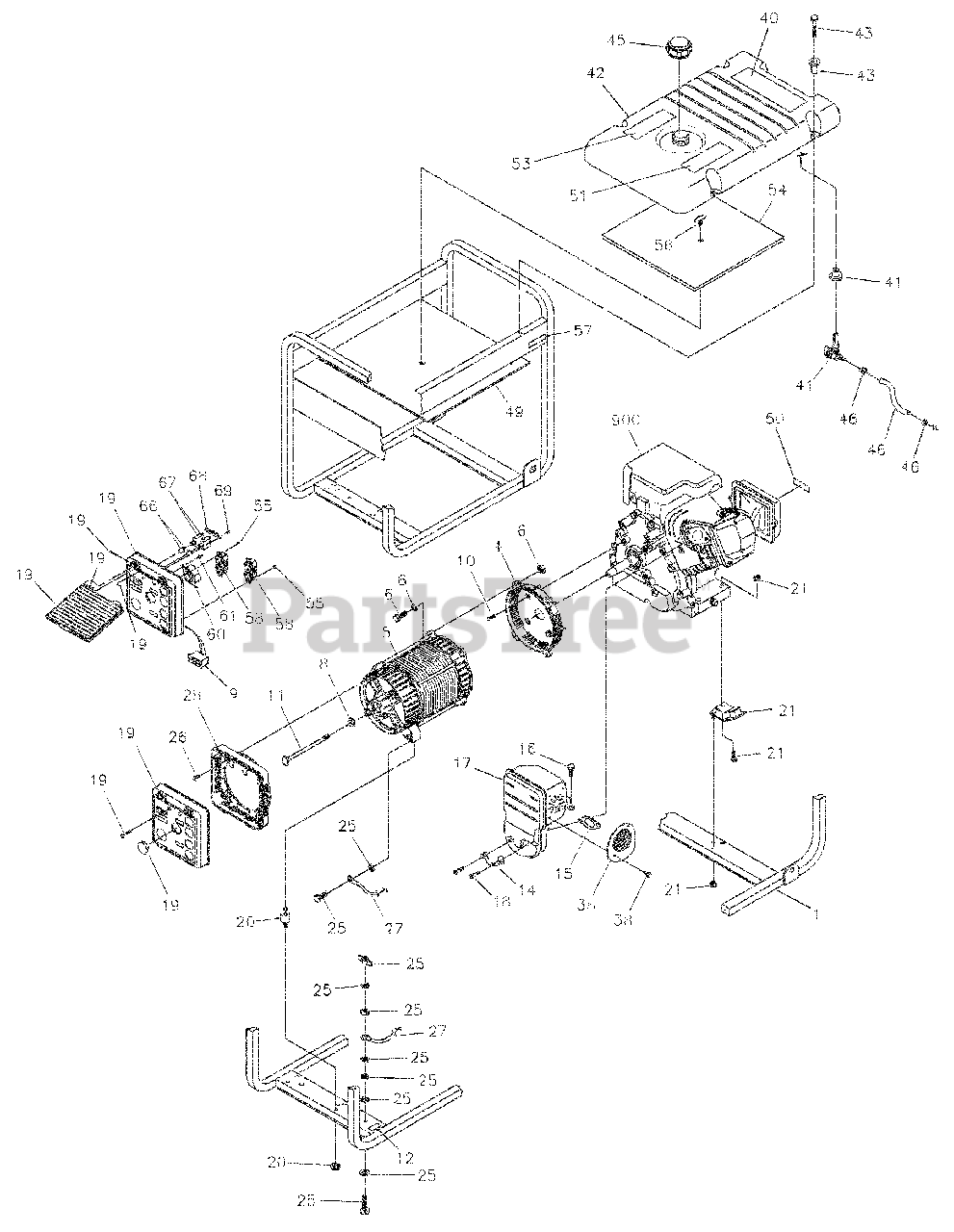

1892-1 - Generac 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M193672GS

CRADLE

$190.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Adapter Mounting Hardware

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22695GS

HOUSING, Receptacle

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 695400

TAB, Locking

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697255

GASKET, Exhaust
(Superseded to 794818)

$8.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 695312

SCREW

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 697252

ASSY, Muffler
(Superseded to 794949)

$119.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 695399

SCREW, Shoulder

$20.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 194152GS

ASSY, Control Panel

$46.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194153GS

KIT,Vibration Mount, Alt.

$11.99

$

In Stock, Qty 17

0

21

Briggs & Stratton 194150GS

KIT,Vibration Mount

$13.99

$

In Stock, Qty 7

0

25

Briggs & Stratton 194154GS

KIT, Grounding Hardware

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 186790EGS

WIRE, Ground

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 191427GS

ADAPTER PANEL

$26.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 45757GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 392390

SPARK ARRESTER, with Screw
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve, Fuel

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 194217GS

ASSY,Tank, Fuel

Note: (Includes Items 40, 41, 51 & 53)

$

$

Not available

43

Briggs & Stratton 194398GS

KIT, Hardware Fuel Tank

$10.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

46

Briggs & Stratton 194265GS

KIT, Fuel Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

49

Briggs & Stratton 193452GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 191435GS

DECAL, Fuel Shut-off

$8.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 189165GS

NUT, Pal

$3.49

$

In Stock, only 2 left!

0

56

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 68759GS

OUTLET, 120V, 20A

$24.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 189164GS

NUT, Pal

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

67

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 84543CGS

SCREW

$2.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 191958GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 194001GS

KIT, Decal Service

Note: Not Illustrated

$104.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193950GS

MANUAL, IPL

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0
