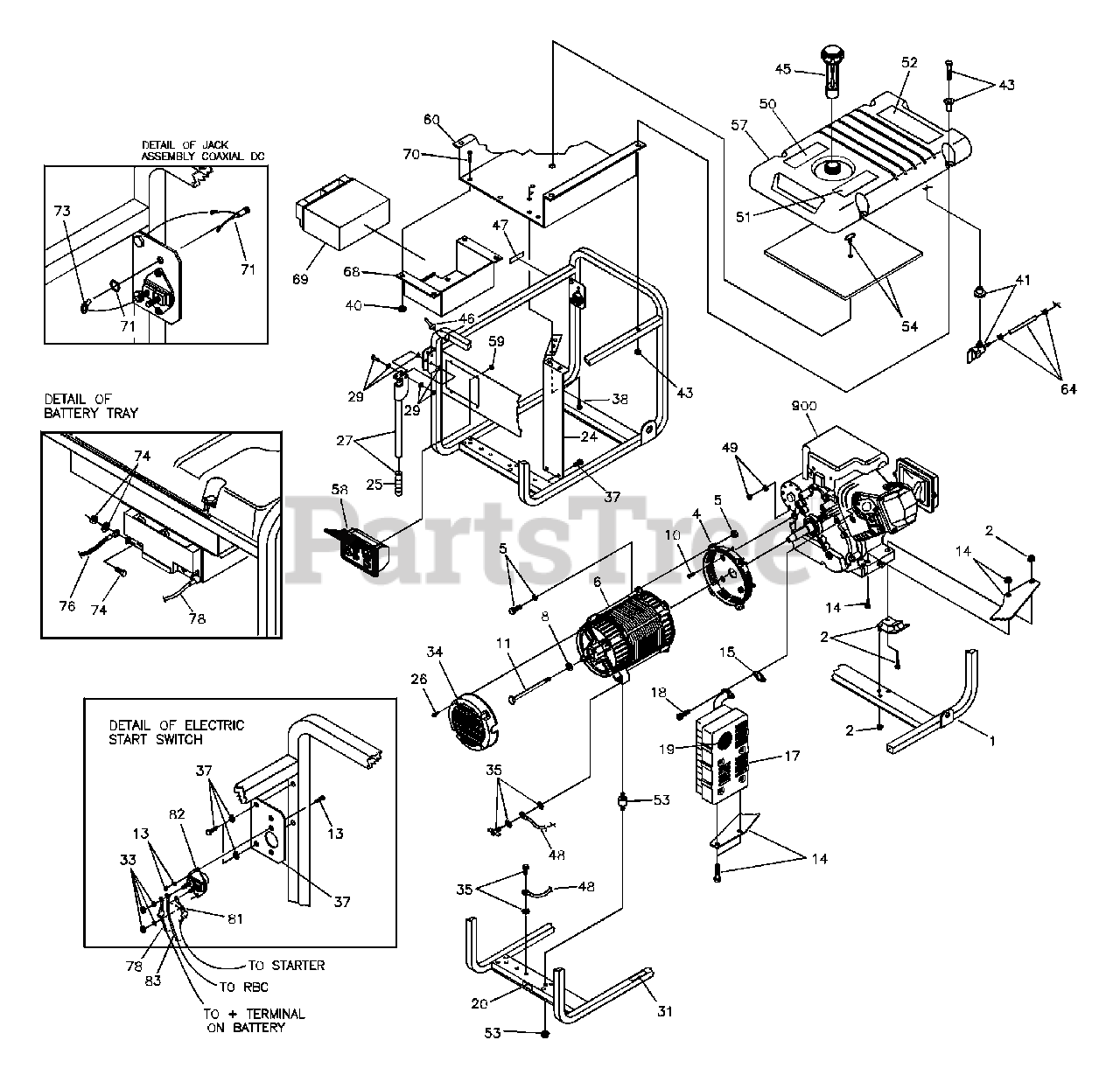

1893-0 - Generac 6,000 Watt Portable Generator Main Unit Parts Diagram

6,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M190305GS

CRADLE
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194396GS

KIT, Vibration Mount, 45°.
(Superseded to 194150GS)

$13.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Adptr, Hdwr Mounting

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY, Alternator

Note: (See "Alternator")

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

SCREW

$17.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 194440GS

KIT, Starter Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194399GS

KIT, Muffler & Brct Hardware
(Superseded to 194729GS)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 25)

$39.99

$

In Stock, Qty 6

0

29

Briggs & Stratton 194034GS

KIT, Handle Fold-down Hardware

$10.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194441GS

KIT, Contact Starter Hardware

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 186347GS

COVER, Bearing Carrier
(Superseded to 195422GS)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 193646GS

KIT, Grounding Hardware

$5.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 194439GS

KIT, Mounting Plate Switch

$11.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT, Valve, Tank

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 194398GS

KIT, Hardware Tank Fuel

$10.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 191435GS

DECAL, Fuel Shut-off

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 194251GS

KIT, Hardware, Starter Contact

$3.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194153GS

KIT, Vibration, Mount

$11.99

$

In Stock, Qty 17

0

54

Briggs & Stratton 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 194217GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

58

Briggs & Stratton 191757GS

ASSY, Control Panel

Note: (See "Control Panel")

$

$

Not available

59

Briggs & Stratton 189164GS

NUT, Palnut

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 194265GS

KIT, Fuel Hose, with Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

68

Briggs & Stratton 192985GS

TRAY, Battery

$81.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton B4489GS

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 43116GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 192531GS

ASSY, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY, Wire

$

$

Not available

78

Briggs & Stratton 189302CGS

ASSY, Wire

$

$

Not available

81

Briggs & Stratton 189302GGS

ASSY, Wire

$18.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 192355GS

ASSY, Wire

$32.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 275092GS

MANUAL, Engine
(Superseded to 276355)

Note: Not illustrated

$

$

Not available

Briggs & Stratton 191958GS

MANUAL, Owner's

Note: Not illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 193840GS

KIT, Decals Service

Note: Not illustrated

$44.99

$

Usually ships in 2-12 days

0
