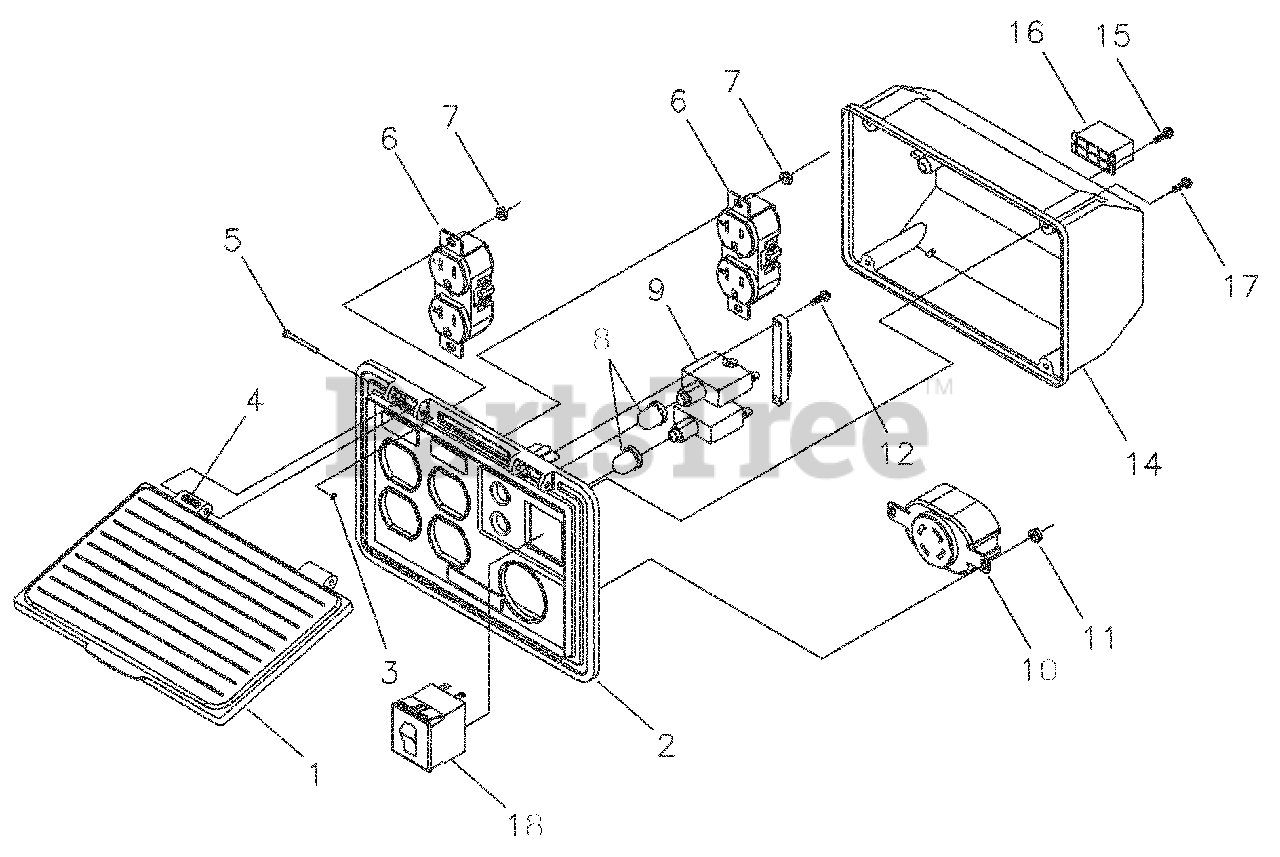

1894-0 - Generac 7,000 Watt Portable Generator AC Control Panel Parts Diagram

7,000 Watt Portable Generator

AC Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 188914GS

COVER, Lid, Control Panel

$

$

Not available

2

Briggs & Stratton 192273BGS

CONTROL PANEL, Compact

$29.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189167GS

CLIP, Hinge Pin Retainer

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 189182GS

SPRING, Hinge, Pin

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189166GS

PIN, Hinge, Cover, Compact

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20A, Duplex

$24.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 189165GS

NUT

$3.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 84198GS

CAP, Breaker, Circuit

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207GS

BREAKER, Circuit
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240V Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 189164GS

NUT

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84543CGS

SCREW

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 192274GS

BOX, Rear Cover

$32.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82308GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192241GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192785GS

BREAKER, Circuit, 30A

$106.99

$

In Stock, only 2 left!

0
