18A-136-000 - Yard Machines Walk-Behind Mower, Electric (2001) General Assembly Parts Diagram

Walk-Behind Mower, Electric

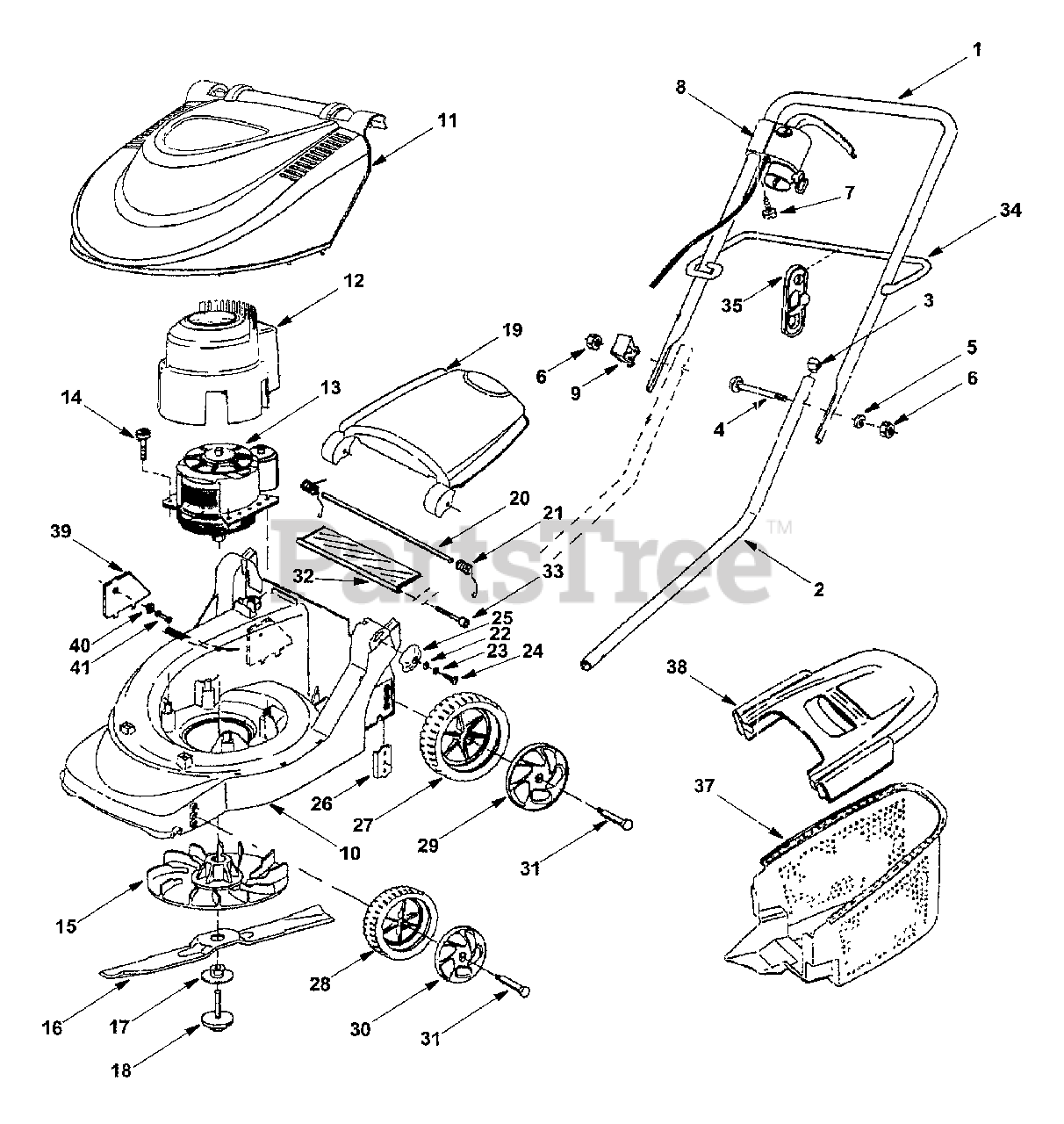

General Assembly Parts Diagram

  • Title

1

MTD 749-1042A

Upper Handle
(Superseded to 749-1042A-0637)

Variations

MTD 749-1042A-0637

HANDLE-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 749-1312

Lower Handle

Variations

MTD 749-1312-0637

No Longer Available HANDLE-LOW - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 00034303

Handle Plug

$

$

Currently unavailable

4

MTD 710-1718

Handle Bolt

$

$

Not available

5

MTD 736-0649

Lock Washer

$3.49

$

Usually ships in 3-6 days

0

6

MTD 712-0690

Hex Nut

$

$

Not available

7

MTD 00002502

Screw

$

$

Currently unavailable

8

MTD 725-1941

Motor / Blade Control Switch
(Superseded to 925-04075)

$

$

Not available

9

MTD 731-2427

Cord Insulator

$

$

Not available

10

MTD 731-2421-0638

Mower Housing

Note: (Incl. Ref# 39-41)

$

$

Not available

11

MTD 731-2088A-0637

Electric Motor Cover

$

$

Not available

12

MTD 731-2224

Air Guide Pot

$

$

Not available

13

MTD 724-0310

Electric Motor
(Superseded to 924-0310)

$

$

Not available

14

MTD 00002498

Screw

$

$

Currently unavailable

15

MTD 07977890

Blade Hub Assembly

$

$

Currently unavailable

16

MTD 742-0804

Cutting Blade
(Superseded to 942-0804)

$

$

Not available

17

MTD 731-1961

Lock Washer

$

$

Not available

18

MTD 624-0077

Blade Bolt

$

$

Not available

19

MTD 731-1971A-0637

Rear Discharge Door

$

$

Not available

20

MTD 07927171

Rod

$

$

Currently unavailable

21

MTD 732-0912

Spring

$

$

Not available

22

MTD 736-0697

Washer
(Superseded to 736-3065)

$

$

Not available

23

MTD 736-0698

Lock Washer

$

$

Not available

24

MTD 710-1350

Screw

$

$

Not available

25

MTD 731-1805-0638

Cap

$

$

Not available

26

MTD 782-0609

Holder Plate

$

$

Not available

27

MTD 734-1884-0637

Rear Wheel
(Superseded to 734-04202)

$15.99

$

Usually ships in 3-6 days

0

28

MTD 734-1885-0637

Front Wheel
(Superseded to 734-04201)

$46.99

$

Usually ships in 3-6 days

0

29

MTD 720-0343-0637

Rear Wheel Cap

$

$

Not available

30

MTD 720-0342-0637

Front Wheel Cap

$

$

Not available

31

MTD 738-1031

Axle Bolt

$

$

Not available

32

MTD 731-2402

Rear Trailing Shield

$

$

Not available

33

MTD 21544134

Screw

$

$

Currently unavailable

34

MTD 747-1010

Guide Rod

$

$

Not available

35

MTD 07906417

Cable Clamp

$

$

Currently unavailable

37

MTD 731-1968-0637

Grass Bag

$

$

Not available

38

MTD 731-2426-0637

Grass Bag Cover

$

$

Not available

39

MTD 782-9095-0638

Protection Plate

$

$

Not available

40

MTD 24648106

Washer

$

$

Currently unavailable

41

MTD 00005008

Rivet

$

$

Currently unavailable
