18A-V17-765 - Bolens Walk-Behind Mower, Electric (2004) General Assembly Parts Diagram

Walk-Behind Mower, Electric

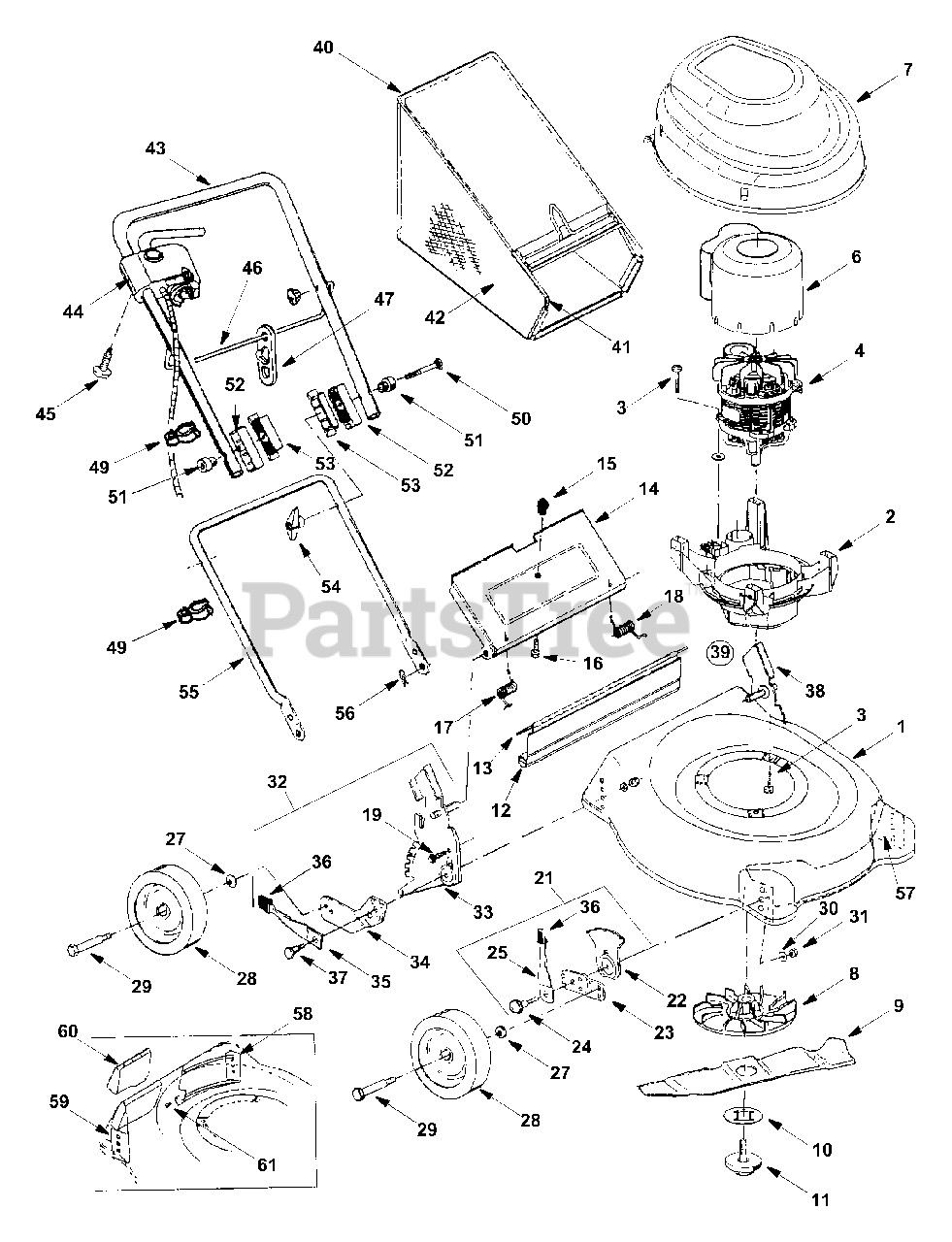

General Assembly Parts Diagram

  • Title

1

MTD 782-0054B-0709

19" Deck Green

$

$

Not available

2

MTD 731-2425

Motor Base

$

$

Not available

3

MTD 710-1756

Screw, M7 x 25

$

$

Not available

4

MTD 724-0309

Electric Motor, 115V, 1500W
(Superseded to 924-0309)

$

$

Not available

6

MTD 731-2400

Air Guide Cover

$

$

Not available

7

MTD 731-2383-0637

Hood

$

$

Not available

8

MTD 631-0132

Blade Hub Assembly

$40.99

$

In Stock, only 1 left!

0

9

MTD 742-0826

Cutting Blade (Mulch/Bag)
(Superseded to 942-0826)

$

$

Not available

10

MTD 782-7051

Blade Locking Plate

$10.99

$

In Stock, only 1 left!

0

11

MTD 624-0078

Blade Screw

$26.99

$

In Stock, only 2 left!

0

12

MTD 731-1261

Trailing Shield

$23.99

$

Usually ships in 3-6 days

0

13

MTD 732-0712

Wire Rod

$

$

Not available

14

MTD 782-7025-0637

Rear Discharge Door

$

$

Not available

15

MTD 720-0275

Knob

$

$

Not available

16

MTD 710-0192

Truss Screw, 10-24 x .38"

$3.49

$

In Stock, Qty 11

0

17

MTD 732-0678

Door Spring, RH

$7.99

$

Usually ships in 3-6 days

0

18

MTD 732-0677

Door Spring, LH
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

19

MTD 710-0896

Washer Hd Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

21

MTD 14578

Height Adj. Assy. RH
(Superseded to 753-06761)

Note: (Shown) (Includes Ref #22-25,36)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Assy. LH
(Superseded to 753-06761)

Note: (Not shown) (Includes Ref #22-25,36)

$60.99

$

In Stock, Qty 7

0

22

MTD 15261A

Adjusting Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

23

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

24

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

25

MTD 14832

Lever and Knob Assy.
(Superseded to 94832)

Note: (Incl #36)

$10.99

$

In Stock, Qty 8

0

27

MTD 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

28

MTD 734-1987

Wheel

$21.99

$

In Stock, Qty 19

0

29

MTD 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

30

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

31

MTD 712-0798

Nut

$3.99

$

Usually ships in 3-6 days

0

32

MTD 682-0516-0637

Handle Bracket Assy, RH

Note: (Includes #33-37)

$

$

Not available

33

MTD 682-0514

Handle Bracket, RH
(Superseded to 682-0516-0637)

$

$

Not available

34

MTD 14765

Pivot Bar, RH

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar, LH

$19.99

$

Usually ships in 3-6 days

0

35

MTD 732-0417A

Spring Lever

$12.99

$

Usually ships in 3-6 days

0

36

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

37

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

38

MTD 682-0513

Handle Bracket, LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

39

MTD 682-0515-0637

Handle Bracket Assy, LH
(Superseded to 753-05994)

Note: (Includes #34-38)

$82.99

$

Usually ships in 3-6 days

0

40

MTD 764-04003

Rear Catcher Frame

Variations

MTD 764-04003-0637

No Longer Available FRAME-CATC - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 764-04004

Front Catcher Frame
(Superseded to 764-04004-0637)

Variations

MTD 764-04004-0637

FRAME-CATCHER-FR 1 - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

42

MTD 664-04014

Grass Bag

$134.99

$

Usually ships in 3-6 days

0

43

MTD 749-1310

Upper Handle
(Superseded to 749-1310-0637)

Variations

MTD 749-1310-0637

HANDLE-UPPER ELEC - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 725-04074

Cord and Switch Assembly
(Superseded to 925-04074)

$

$

Not available

45

MTD 710-1757

Screw

$

$

Not available

46

MTD 747-1094

Cord Control Rod

$

$

Not available

47

MTD 726-0368

Cord Restraint

Variations

MTD 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

49

MTD 731-2422

Cable Guide

$14.99

$

Usually ships in 3-6 days

0

50

MTD 710-0450

Carriage Bolt

$5.99

$

Usually ships in 3-6 days

0

51

MTD 731-1388

Insulating Knob Spacer

$

$

Not available

52

MTD 731-1268

Upper Handle Insulator

$15.99

$

Usually ships in 3-6 days

0

53

MTD 731-1267

Lower Handle Insulator

$

$

Not available

54

MTD 720-0241

Handle Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

55

MTD 749-0885

Lower Handle

Variations

MTD 749-0885-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 714-0104

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

57

MTD 782-5025-0637

Front Baffle

$

$

Not available

58

MTD 782-5026-0637

Rear Baffle

$

$

Not available

59

MTD 782-5004-0637

Rear Mulch Baffle
(Superseded to 782-5004B)

$23.99

$

Usually ships in 3-6 days

0

60

MTD 731-2386

Rear Mulch Plug

$

$

Not available

61

MTD 710-1017

Tap Screw, 1/4-14 x .625"

$7.99

$

In Stock, Qty 20+

0
