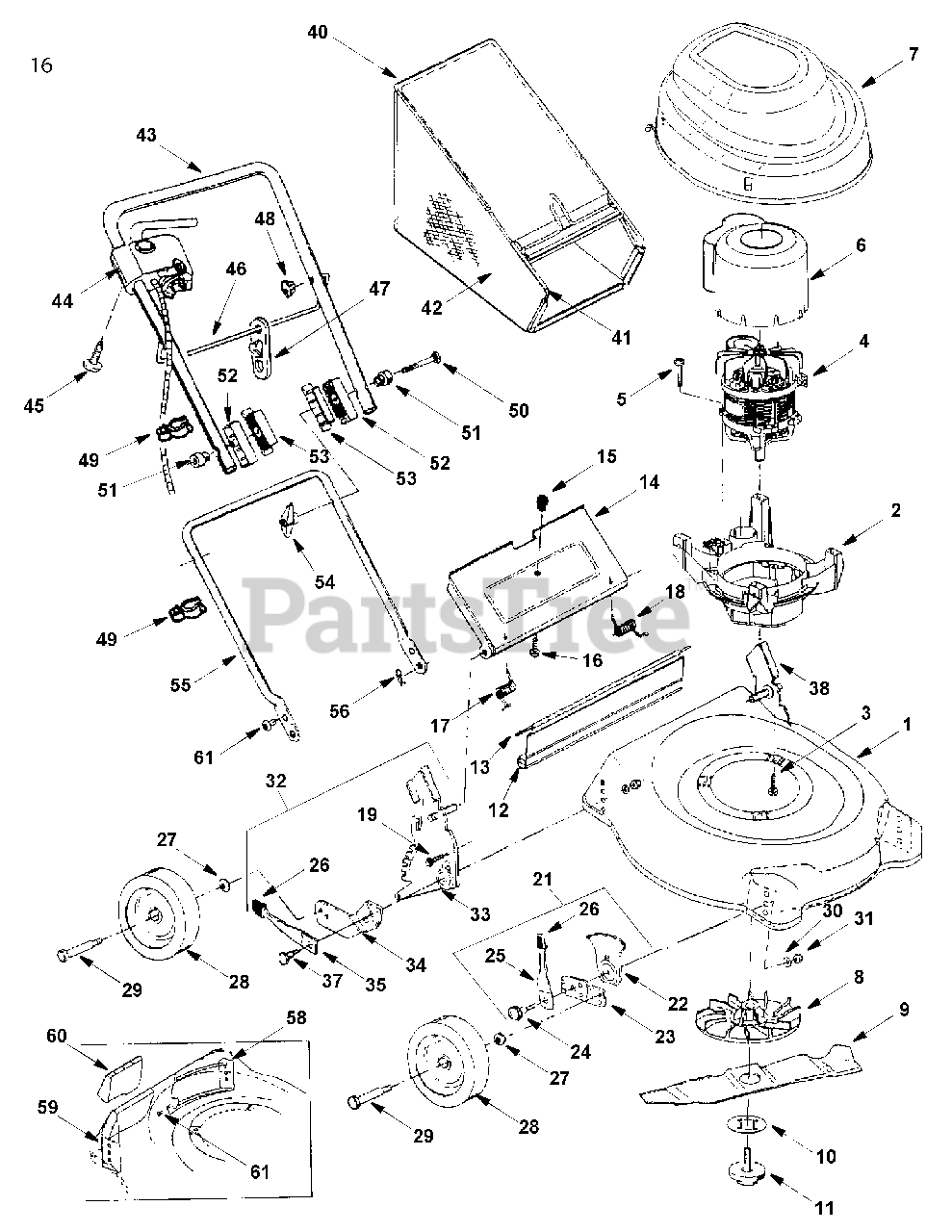

18A-V17-800 - Yard Machines Walk-Behind Mower, Electric (2005) General Assembly Parts Diagram

Walk-Behind Mower, Electric

General Assembly Parts Diagram

  • Title

1

MTD 782-0054B-0638

19" Deck
(Superseded to 982-0054B-0638)

$

$

Not available

2

MTD 731-2425

Motor Support

$

$

Not available

3

MTD 710-1756

Screw

$

$

Not available

4

MTD 724-0309

Electric Motor 115V, 1500W
(Superseded to 924-0309)

$

$

Not available

5

MTD 710-1756

Screw

$

$

Not available

6

MTD 731-2400

Air Guide Cover

$

$

Not available

7

MTD 731-2383-0637

Hood

$

$

Not available

8

MTD 631-0132

Blade Hub Assembly

$40.99

$

In Stock, only 1 left!

0

9

MTD 742-0826

Blade
(Superseded to 942-0826)

$

$

Not available

10

MTD 782-7051

Locking Plate

$10.99

$

In Stock, only 1 left!

0

11

MTD 624-0078

Screw, Blade

$26.99

$

In Stock, only 2 left!

0

12

MTD 731-1261

Rear Flap

$23.99

$

Usually ships in 3-6 days

0

13

MTD 732-0712

Rear Flap Wire

$

$

Not available

14

MTD 782-7025-0637

Chute Door

$

$

Not available

15

MTD 720-0275

Knob

$

$

Not available

16

MTD 710-0192

Truss Mach Scr #10-24 X .38

$3.49

$

In Stock, Qty 11

0

17

MTD 732-0678

RH Torsion Spring

$7.99

$

Usually ships in 3-6 days

0

18

MTD 732-0677

LH Torsion Spring
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

19

MTD 710-0896

Hex Index Washer Screw 1/4-14 X .625

$3.99

$

In Stock, Qty 20+

0

21

MTD 14578

Height Adj. Ass’y RH (w/knob)
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

21

MTD 14579

Height Adj. Ass’y LH (w/knob)
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

22

MTD 15261A

Height Adjuster Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

23

MTD 15262B

Wheel Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

24

MTD 738-0507B

Shoulder Screw .50 Dia.

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-0404

Spring Lever Ass’y w/knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

26

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

27

MTD 736-0105

Bell. Washer .375 ID X .870 OD X .063

$3.99

$

In Stock, Qty 20+

0

28

MTD 734-1987

Wheel 8" X 1.8", Gray

$21.99

$

In Stock, Qty 19

0

29

MTD 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

30

MTD 736-0356

Bell. Washer .38 ID X 1.38 OD X .06
(Superseded to 936-0356)

$

$

Not available

31

MTD 712-0798

Hex Nut 3/8-16 Gr. 2

$3.99

$

Usually ships in 3-6 days

0

32

MTD 682-0516

Handle Bracket Ass’y RH
(Superseded to 682-0516-0637)

Variations

MTD 682-0516-0637

BRACKET-HGT ADJ-RH - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 682-0514-0637

Handle Brkt. Ass’y-RH

$

$

Currently unavailable

34

MTD 14765

Pivot Bar RH SP

$19.99

$

Usually ships in 3-6 days

0

34

MTD 14766

Pivot Bar LH SP

$19.99

$

Usually ships in 3-6 days

0

35

MTD 732-0417A

Spring Lever SP

$12.99

$

Usually ships in 3-6 days

0

37

MTD 738-0507B

Shoulder Screw .50 Dia.

$4.49

$

In Stock, Qty 20+

0

38

MTD 682-0513-0637

Handle Brkt. Ass’y-LH

$

$

Currently unavailable

39

MTD 682-0515

Handle Bracket Ass’y LH
(Superseded to 753-05994)

Variations

MTD 682-0515-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

40

MTD 764-04003

Rear Catcher Frame

Variations

MTD 764-04003-0637

No Longer Available FRAME-CATC - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 764-04004

Front Catcher Frame
(Superseded to 764-04004-0637)

Variations

MTD 764-04004-0637

FRAME-CATCHER-FR 1 - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

42

MTD 764-04014

Grasscatcher Bag w/logo

$

$

Currently unavailable

43

MTD 749-1310-0637

Upper Handle

$

$

Not available

44

MTD 725-1942

Switch Plug Combination
(Superseded to 925-04074)

$

$

Not available

45

MTD 710-1757

Screw

$

$

Not available

46

MTD 747-1094

Guide Rod

$

$

Not available

47

MTD 726-0368

Cord Restraint

Variations

MTD 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

48

MTD 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

49

MTD 731-2422

Cable Guide

$14.99

$

Usually ships in 3-6 days

0

50

MTD 710-0450

Carriage Bolt 5/16-18 x 3.00

$5.99

$

Usually ships in 3-6 days

0

51

MTD 731-1388

Insulator Knob

$

$

Not available

52

MTD 731-1268

Upper Handle Insulator

$15.99

$

Usually ships in 3-6 days

0

53

MTD 731-1267

Lower Handle Insulator

$

$

Not available

54

MTD 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

55

MTD 749-1318A-0637

Lower Handle

$

$

Currently unavailable

56

MTD 714-0104

Int. Cotter Pin .072 X 1.13" Lg.

$3.99

$

In Stock, Qty 20+

0

57

MTD 782-5025-0637

Front Baffle

$

$

Not available

58

MTD 782-5026-0637

Rear Baffle

$

$

Not available

59

MTD 782-5004-0637

Right Rear Baffle
(Superseded to 782-5004B)

$23.99

$

Usually ships in 3-6 days

0

60

MTD 731-2386

Rear Mulch Plug

$

$

Not available

61

MTD 710-1017

Torx Mach. AB-Tapp Scr. 1/4-14 X .625"

$7.99

$

In Stock, Qty 20+

0
