19-2800 - Toro 25" Bagging Kit for 525X, 525XE 25" ROTARY BAGGER KIT Parts Diagram

25" Bagging Kit for 525X, 525XE

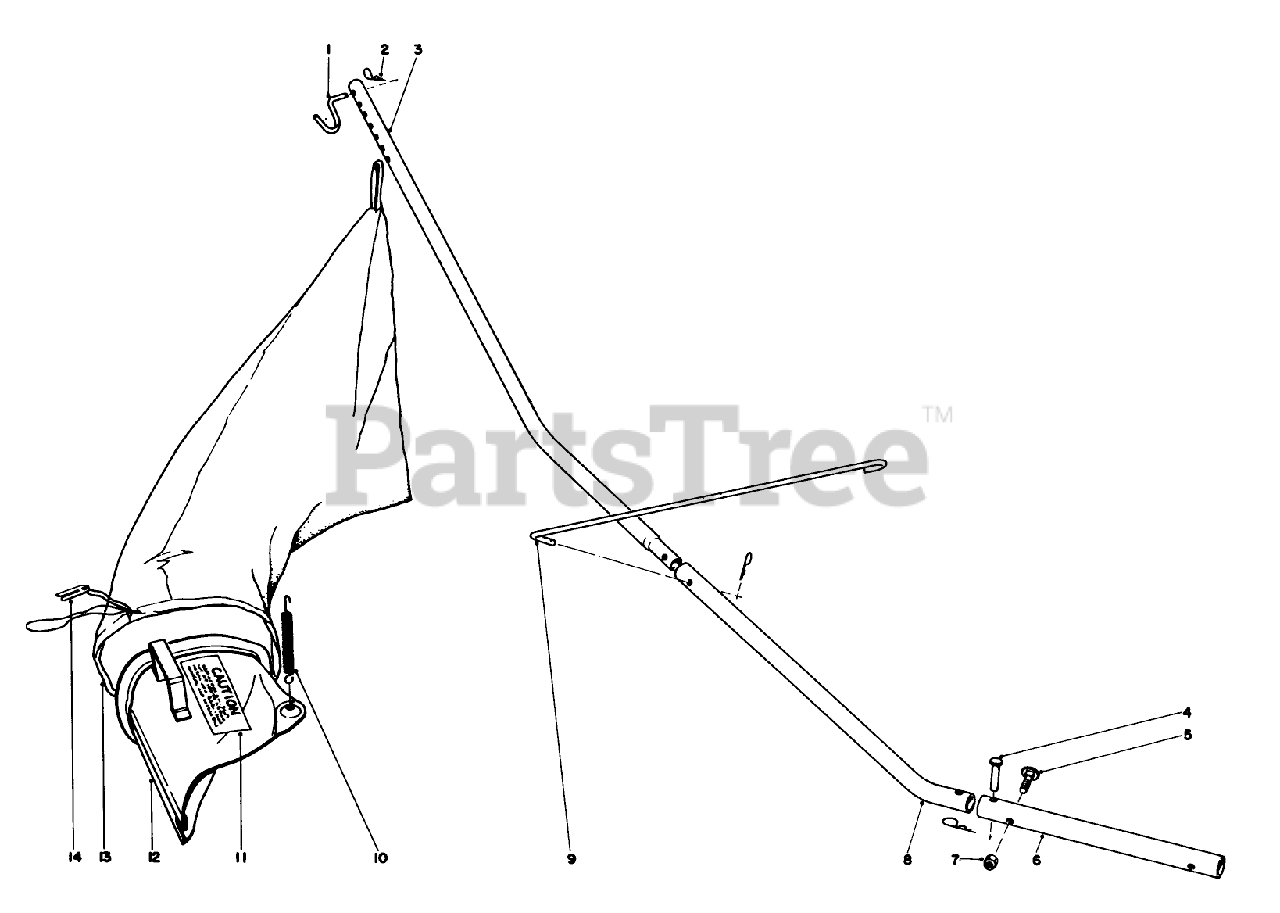

25" ROTARY BAGGER KIT Parts Diagram

  • Title

1

Toro 3-2427

Hook

$

$

Not available

2

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

3

Toro 7-8950

Long Bag Arm

$

$

Not available

4

Toro 3-2440

Pin

$

$

Not available

5

Toro 6-6330

HANDLE SCREW

$

$

Not available

6

Toro 19-4320

Frame Bag Rod

$

$

Currently unavailable

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

8

Toro 19-4310

Bag Rod Extension

$

$

Not available

9

Toro 19-4330

Bag Rod Support

$

$

Currently unavailable

10

Toro 12-9090

Spring

$

$

Not available

11

Toro 12-4090

Decal

$

$

Currently unavailable

12

Toro 17-6430

Bag Chute Assembly (Incl. Ref. No-s. 10, 11 & 12)

$

$

Not available

13

Toro 5-8729

Bag Assembly (Incl. Ref. No. 14)
(Superseded to 8-4719)

$

$

Not available

14

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0
