19 EHC (59AH202-195) - MTD Pro Hedge Clipper Engine Parts Diagram

Pro Hedge Clipper

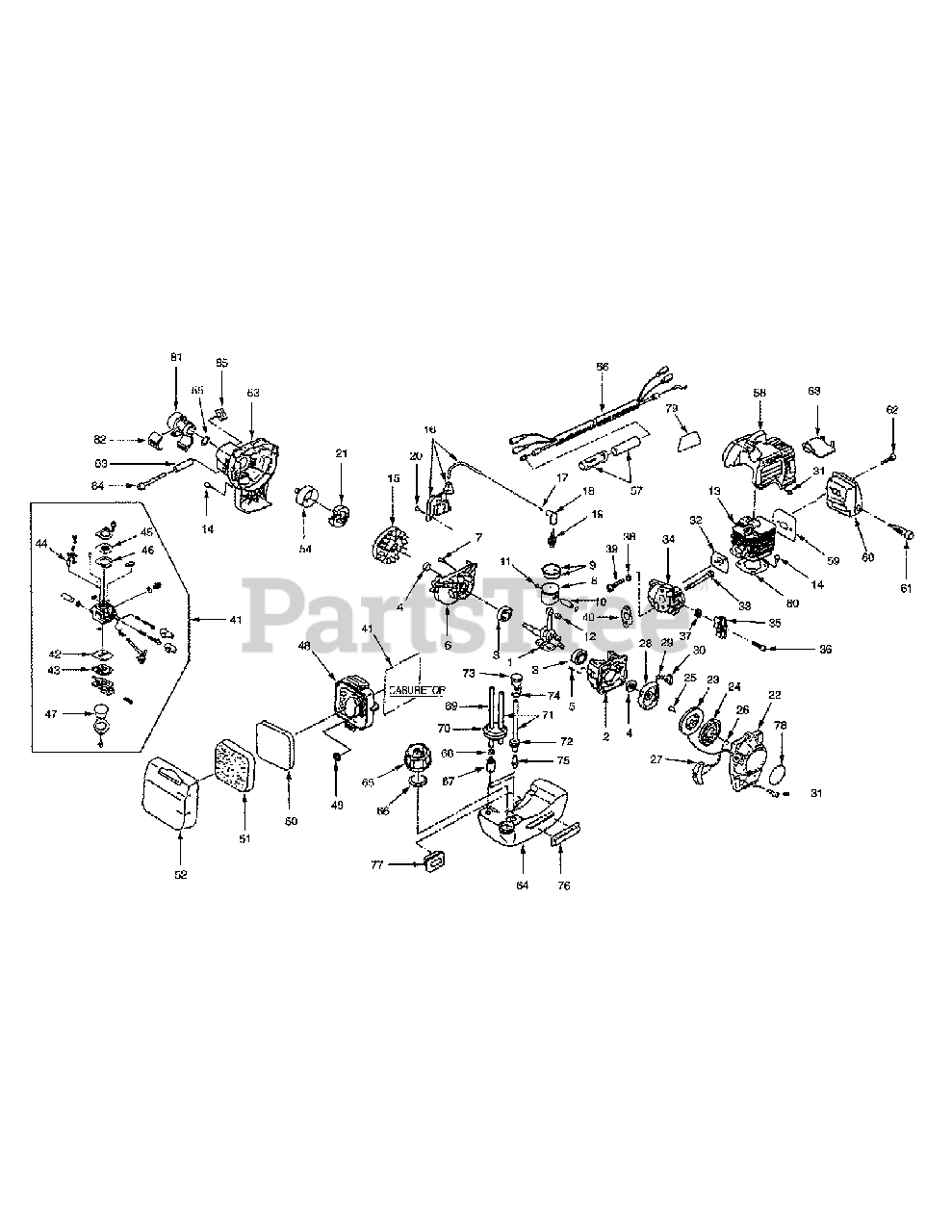

Engine Parts Diagram

  • Title

1

MTD IM-115253470

Crankshaft

$

$

Not available

2

MTD IM-110035190

Crankcase Assembly

$

$

Not available

3

MTD IM-040106201

Bearing Ball, 6201

$

$

Not available

4

MTD IM-050209070

Seal, Oil

$7.99

$

Usually ships in 3-6 days

0

5

MTD IM-030500512

Pin, Dowel

$

$

Not available

6

MTD IM-110035200

Crankcase Assembly

$

$

Not available

7

MTD IM-010709010

Bolt, M5x25

$

$

Not available

8

MTD IM-115013311

Piston Assembly

$

$

Not available

9

MTD IM-115113650

Ring, Piston

$

$

Not available

10

MTD IM-115323041

Pin, Piston

$

$

Not available

11

MTD IM-198343210

Clip, Piston Pin

$

$

Not available

12

MTD IM-042709008

Bearing, Needle

$

$

Not available

13

MTD IM-110213560

Cylinder

$

$

Not available

14

MTD IM-010709008

Bolt, M5x16

$3.49

$

In Stock, only 2 left!

0

15

MTD IM-150103500

Flywheel, Magneto

$47.99

$

Usually ships in 3-6 days

0

16

MTD IM-150053330

Coil Assembly, Ignition

$

$

Not available

17

MTD IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

18

MTD IM-150413033

Cap ,Plug

$

$

Not available

19

MTD IM-150265091

Spark, Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

20

MTD IM-010709018

Bolt, M4x20

$3.49

$

In Stock, Qty 5

0

21

MTD IM-170033370

Clutch Assembly

$

$

Not available

22

MTD IM-155103461

Recoil Assembly

$117.99

$

Usually ships in 3-6 days

0

23

MTD IM-155183121

Reel

$

$

Not available

24

MTD IM-155263270

Spring, Spiral

$38.99

$

Usually ships in 3-6 days

0

25

MTD IM-155343050

Screw

$

$

Not available

26

MTD IM-155213050

Rope, Starter

$

$

Not available

27

MTD IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

28

MTD IM-155353090

Pulley Assembly, Starter

$

$

Not available

29

MTD IM-155263261

Spring, Return

$

$

Not available

30

MTD IM-155163110

Ratchet

$

$

Not available

31

MTD IM-010709009

Bolt, M5x20

$

$

Not available

32

MTD n/a

Gasket, Insulator

$

$

Currently unavailable

33

MTD IM-010109433

Bolt, M5x56

$

$

Not available

34

MTD IM-199513510

Insulator

$43.99

$

In Stock, only 1 left!

0

35

MTD IM-125543100

Adjuster

$

$

Not available

36

MTD IM-010709006

Bolt, M5x12

$

$

Not available

37

MTD IM-020100005

Nut

$

$

Not available

38

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

39

MTD IM-010709010

Bolt, M5x25

$

$

Not available

40

MTD n/a

Gasket

$

$

Currently unavailable

41

MTD IM-130104240

Carburetor Assembly

$

$

Not available

42

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

43

MTD IM-130513413

Gasket, Pump

$10.99

$

Usually ships in 3-6 days

0

44

MTD IM-130153240

Valve, Float

$

$

Not available

45

MTD IM-130283357

Diaphragm, Metering

$

$

Not available

46

MTD IM-130123350

Gasket

$

$

Not available

47

MTD IM-198113900

Rubber

$22.99

$

Usually ships in 3-6 days

0

48

MTD IM-135713491

Case, Air Silencer

$

$

Not available

49

MTD IM-023100005

Nut

$

$

Not available

50

MTD IM-135263311

Element "B", Air Filter

$8.99

$

Usually ships in 3-6 days

0

51

MTD IM-135263300

Element "A", Air Filter

$8.99

$

Usually ships in 3-6 days

0

52

MTD IM-135713450

Cap, Case

$8.49

$

Usually ships in 3-6 days

0

52

MTD IM-135713450

Cap, Case

$8.49

$

Usually ships in 3-6 days

0

53

MTD IM-175103440

Housing, Blower

$

$

Not available

54

MTD IM-170333240

Drum, Clutch

$

$

Not available

55

MTD IM-036100012

Snap Ring, S-12

Note: NLA

$

$

Not available

56

MTD IM-125504790

Wire Complete, Throttle

$

$

Not available

57

MTD IM-125683062

Wire Holder

$9.99

$

Usually ships in 3-6 days

0

58

MTD IM-175153970

Cowling, Cylinder

$

$

Not available

59

MTD n/a

Gasket, Muffler

$

$

Currently unavailable

60

MTD IM-135403670

Muffler

$

$

Not available

61

MTD IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

62

MTD IM-010709018

Bolt, M5x48

$3.49

$

In Stock, Qty 5

0

63

MTD IM-135433630

Plate, Baffle

$

$

Not available

64

MTD IM-160113261

Tank, Fuel

$40.99

$

Usually ships in 3-6 days

0

65

MTD IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 12

0

66

MTD IM-160993100

Gasket

$3.99

$

In Stock, Qty 8

0

67

MTD IM-130303290

Filter, Fuel

$14.99

$

Usually ships in 3-6 days

0

68

MTD IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

69

MTD IM-198163080

Hose

Note: NLA

$

$

Not available

70

MTD IM-198113730

Rubber

$10.99

$

In Stock, only 1 left!

0

71

MTD IM-068209150

Hose

Note: NLA

$

$

Not available

72

MTD IM-198113560

Rubber

$

$

Not available

73

MTD IM-160043121

Valve, Revrsing

$

$

Not available

74

MTD IM-198343060

Clip

$

$

Not available

75

MTD IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

76

MTD IM-198113740

Rubber

Note: NLA

$

$

Not available

77

MTD IM-198113620

Rubber

$

$

Not available

78

MTD IM-190285360

Name Plate

Note: NLA

$

$

Currently unavailable

79

MTD IM-190333290

Trade Mark

$

$

Not available

80

MTD IM-110993420

Gasket, Cylinder

$

$

Not available

81

MTD IM-198113930

Rubber

$10.99

$

Usually ships in 3-6 days

0

82

MTD IM-175423060

Plate

$

$

Not available

83

MTD IM-199233470

Collar

$

$

Not available

84

MTD IM-010709011

Bolt, M5x30

$

$

Not available

85

MTD IM-020109131

Nut

$

$

Not available

MTD IM-135994160

Gasket Kit

$

$

Not available
