190-006-000 - MTD Grass Catcher Attachment (1987)

Grass Catcher Attachment

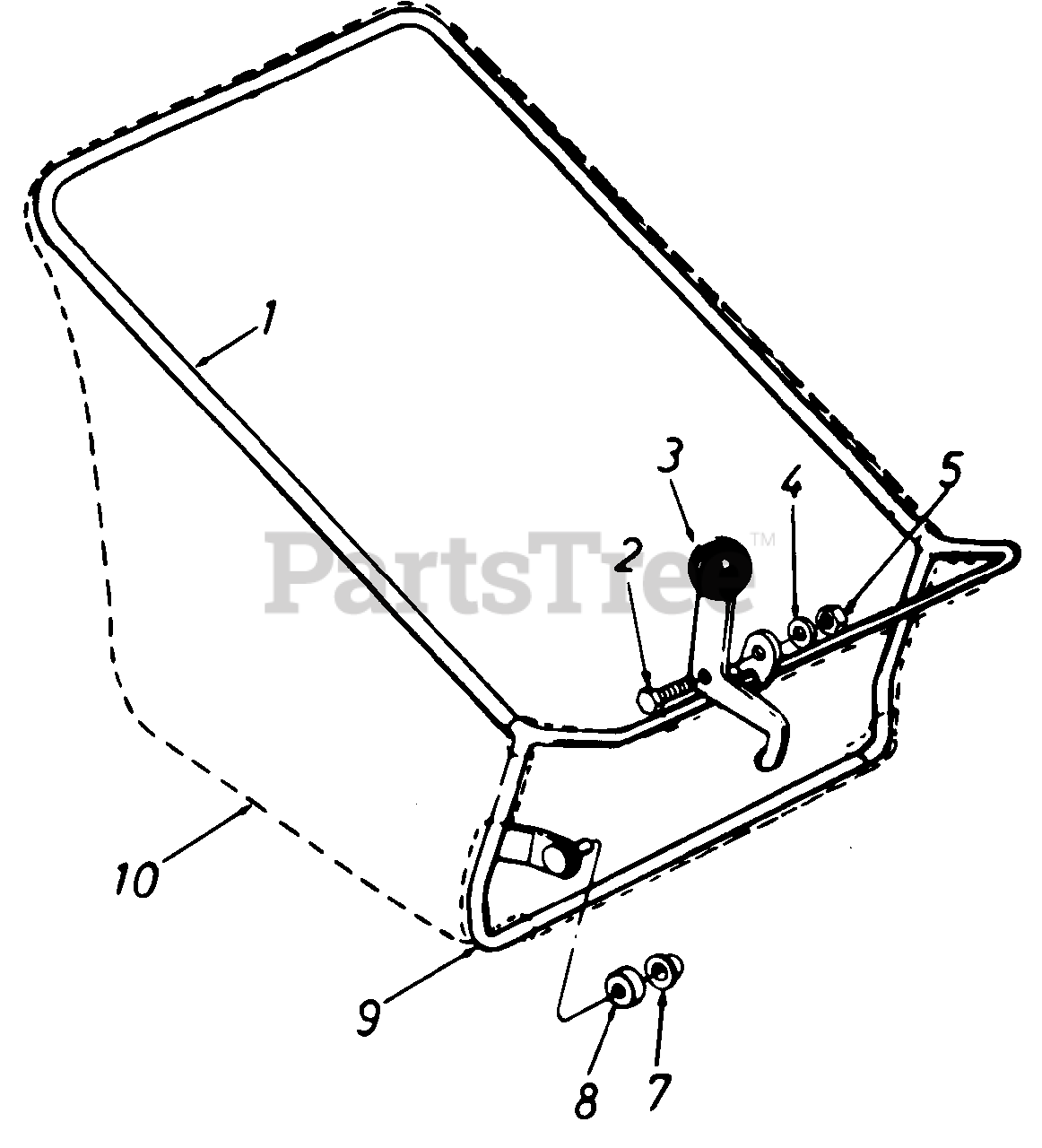

190-006-000 - MTD Grass Catcher Attachment (1987) > Parts Diagrams (1) > Grass Catcher

  • Title
749-0278

1

Upper Frame

Part# 749-0278

Note: (006)

OEM Warranty Repair Part for MTD

Not available

749-0512

Upper Frame

Part# 749-0512

Note: (019)

OEM Warranty Repair Part for MTD

Not available

738-0140

2

Shld. Scr. .437 Dia. x .180

Part# 738-0140 (Superseded to 938-0140)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.66

13435

3

Cam Lever Grip Ass'y.

Part# 13435

OEM Warranty Repair Part for MTD

Not available

736-0119

4

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

5

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

726-0100

7

Push Cap

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

731-0430

8

Plastic Roller

Part# 731-0430

OEM Warranty Repair Part for MTD

Not available

13924

9

Lower Frame Ass'y.

Part# 13924

OEM Warranty Repair Part for MTD

Not available

764-0171

10

Grass Bag

Part# 764-0171 (Superseded to 964-0171B)

Note: (006)

OEM Warranty Repair Part for MTD

Not available

764-0191

Grass Bag

Part# 764-0191

Note: (019)

OEM Warranty Repair Part for MTD

Not available
