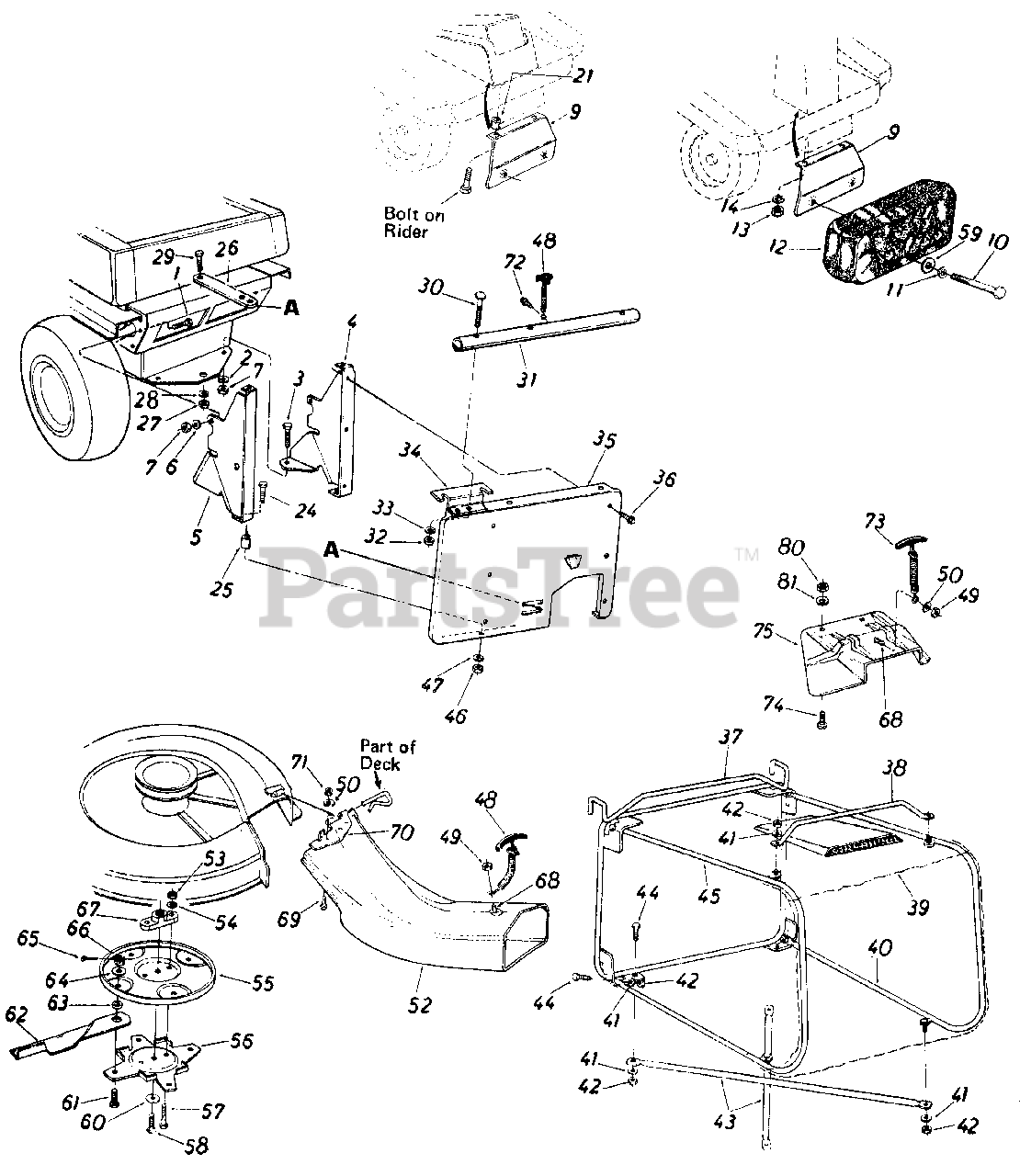

190-038-190 - White Outdoor Rear Bagging Grass Catcher (1989) 30" Rear Discharge Decks Parts Diagram

Rear Bagging Grass Catcher

30" Rear Discharge Decks Parts Diagram

  • Title

1

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 17

0

2

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.'

$3.99

$

In Stock, Qty 17

0

4

White Outdoor 15970

Catcher Support Brkt R.H.
(Superseded to 15970A)

$

$

Not available

5

White Outdoor 15971

Catcher Support Brkt-L.H.

$

$

Not available

6

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 15539

Counterweight Support Brkt. Ass'y .

$

$

Not available

10

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$13.99

$

In Stock, only 2 left!

0

11

White Outdoor 736-0105

Belleville Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 723-0367

Counterweight 38 Ibs.

$

$

Not available

13

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

14

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 711-0242

Spacer .380" I.D. x 1.0" O.D. x .32" Lg.

$3.99

$

In Stock, Qty 14

0

24

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 750-0434

Spacer .380" I.D. x .47" O.D. x 1.0" Lg.

$6.49

$

Usually ships in 3-6 days

0

26

White Outdoor 05400

Linkage Bracket

Variations

White Outdoor 05400-0637

No Longer Available BRACKET-LINKAGE - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

28

White Outdoor 736-0921

L.-Wash. 1/2" I.D."

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0493

Hex Bolt 1/2-20 x 1.0" Lg.*
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

30

White Outdoor 710-0405

Curved Carriage Bolt 5/16 18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

31

White Outdoor 749-0659

Grass Catcher Support Tube

Variations

White Outdoor 749-0659-0637

No Longer Available SUPPORT-TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

33

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 15995

Grass Catcher Support Plate

$

$

Not available

35

White Outdoor 15923

Rear Discharge Panel

$

$

Not available

36

White Outdoor 710-0599

Hex Wash. Hd. Self Tap. Scr. 1/4- 0 20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 15991

Grass Catcher Frame Ass'y.

$

$

Not available

38

White Outdoor 749-0653

Grass Catcher Handle
(Superseded to 749-0653-0637)

Variations

White Outdoor 749-0653-0637

HANDLE-CATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 764-0210

Grass Catcher Bag

$

$

Not available

40

White Outdoor 15992

Catcher Side Frame Ass'y.-R.H.

Variations

White Outdoor 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 736-0175

Spring-Wash. .270" I.D. x .57" O. ) . x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

White Outdoor 712-0107

Hex L.-Nut 1/2-20 Thd
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

43

White Outdoor 749-0651

Bottom Cross Brace

$

$

Not available

44

White Outdoor 710-0258

Hex Bolt 1/4-20x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 15993

Catcher Side Frame Ass'y.-L.H.

Variations

White Outdoor 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

47

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 723-0296

Hook Latch Ass'y.

$

$

Not available

49

White Outdoor 712-0107

Hex L.-Nut 1/4-20Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

50

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

52

White Outdoor 15920

R.D. Banana Chute Ass'y.

$

$

Not available

53

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

54

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 742-0265

Upper 81ade Disc
(Superseded to 742-0286-0637)

$

$

Not available

56

White Outdoor 742-0279

Lower Blade Disc

Variations

White Outdoor 742-0279-0637

BLADE DISC-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

57

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

58

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

59

White Outdoor 736-0280

Fl.-Wash. .39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$7.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0356

Bell.-Wash. 39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

61

White Outdoor 738-0587

Shld. Bolt. .50" Dia. x .360 0 Spec.
(Superseded to 938-0587)

$

$

Not available

62

White Outdoor 742-0266

30" Blade Tip

$

$

Not available

63

White Outdoor 750-0604

Spacer .505" I.D. x .75" O.D. x 1.25" Lg.

$

$

Not available

64

White Outdoor 736-0179

Fl.-Wash. .50" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.0" Lg.*

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

67

White Outdoor 748-0300

Blade Adapter

$12.99

$

In Stock, Qty 15

0

68

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

69

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg. *

$4.49

$

Usually ships in 3-6 days

0

70

White Outdoor 15921

Chute Mounting Brkt.

Variations

White Outdoor 15921-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

72

White Outdoor 710-0776

Hex AB 0 Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

73

White Outdoor 723-0370

Hook Latch Ass'y. 7" Lg.
(Superseded to 923-0370)

$

$

Not available

74

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x 50" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

White Outdoor 731-0721

R D 0 Chute Extension

$84.99

$

Usually ships in 3-6 days

0

80

White Outdoor 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

81

White Outdoor 736-0142

Fl.-Wash. .281" I.D. x .50" O.D. x .063

$4.49

$

Usually ships in 3-6 days

0
