190-064-000 - MTD Grass Catcher Assembly (2000) General Assembly Parts Diagram

Grass Catcher Assembly

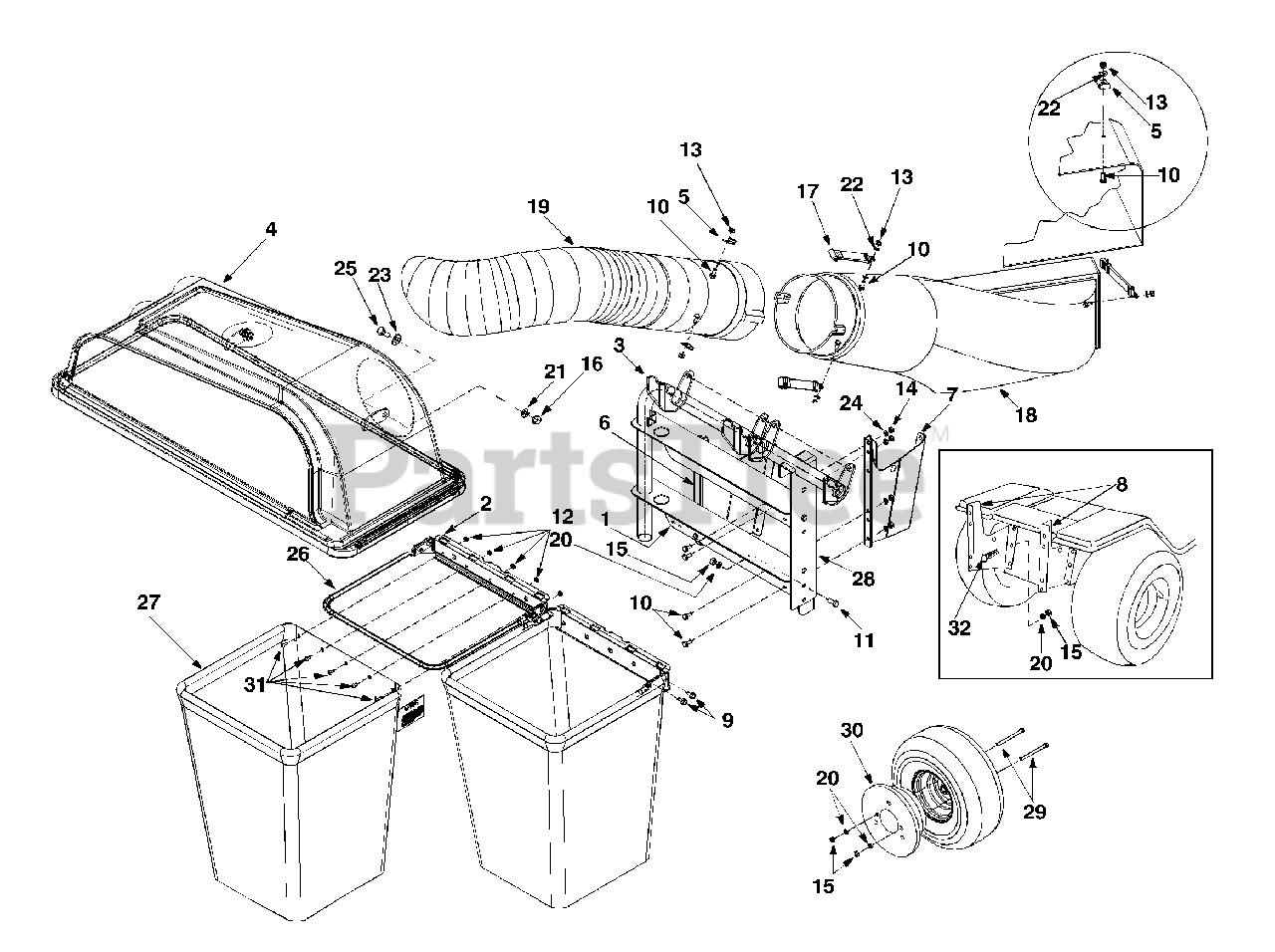

General Assembly Parts Diagram

  • Title

1

MTD 16587B

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

Variations

MTD 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

2

MTD 16591A

Hanger Bracket: Bag Frame
(Superseded to 16591A-0637)

Variations

MTD 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

3

MTD 16592

Catcher Support Tube Assembly
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$205.99

$

Usually ships in 3-6 days

0

$205.99

$

Usually ships in 3-6 days

0

4

MTD 16594A

Cover Assembly

$

$

Not available

5

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

6

MTD 16610C

Support Bracket: LH

Note: For tractors with 13" wide rear frame only

Variations

MTD 16610C-0637

Grass Catcher Support Brkt.-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 16611C

Support Bracket: RH
(Superseded to 16611C-0637)

Note: For tractors with 13" wide rear frame only

Variations

MTD 16611C-0637

Support Bracket, RH - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

8

MTD 16672A

Support Bracket
(Superseded to 16672A-0637)

Note: For tractors with 12" wide rear frame only

Variations

MTD 16672A-0637

BRACKET-CATCHER SU - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

9

MTD 710-0604

Screw, TT: 5/16-18 X 0.625"
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 13

0

10

MTD 710-0751

Hex Bolt: 1/4-20 X 0.620" Gr. 5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3008

Hex Bolt: 5/16-18 X 0.75" Gr. 5

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0272

Hex Sems Nut: 10-24

$4.49

$

In Stock, only 2 left!

0

13

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, only 4 left!

0

14

MTD 712-3006

Hex Nut: Gr. 5

$4.99

$

In Stock, Qty 12

0

15

MTD 712-3010

Hex Nut: 5/16-18

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-3017

Hex Nut: 3/8-16 Gr. 8

$4.49

$

In Stock, Qty 11

0

17

MTD 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$16.99

$

In Stock, Qty 8

0

18

MTD 731-0827A

Discharge Chute
(Superseded to 731-0827D)

$151.99

$

In Stock, only 1 left!

0

19

MTD 731-0899A

Chute Tube
(Superseded to 731-0899E)

$115.99

$

In Stock, only 1 left!

0

20

MTD 736-0119

Lock Washer: 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0175

Spring Washer
(Superseded to 936-0175)

$4.49

$

In Stock, only 3 left!

0

23

MTD 736-0255

Bell Washer

$4.99

$

In Stock, only 1 left!

0

24

MTD 736-0329

Lock Washer: 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

25

MTD 738-0380

Shoulder Screw

$8.49

$

In Stock, Qty 20+

0

26

MTD 749-0701A

Frame Tube
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

27

MTD 764-0221

Catcher Bag
(Superseded to 964-0221)

$77.99

$

In Stock, Qty 20+

0

28

MTD 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

29

MTD 710-0190

Hex Bolt 5/16-18 x 4.0" Gr.5

$8.49

$

Usually ships in 3-6 days

0

30

MTD 723-0414B

Wheel Weight

Variations

MTD 723-0414B-0637

No Longer Available WEIGHT-WHE - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 710-0473

Mach. Screw: #10-24 X 0.5"

$4.49

$

Usually ships in 3-6 days

0

32

MTD 710-0118

Hex Bolt: 5/16-18 x 0.75"
(Superseded to 710-3008)

Note: For tractors with 12" wide rear frame only

$4.49

$

In Stock, Qty 20+

0
