190-066-190 - White Outdoor Side Discharge Grass Catcher (1987)

Side Discharge Grass Catcher

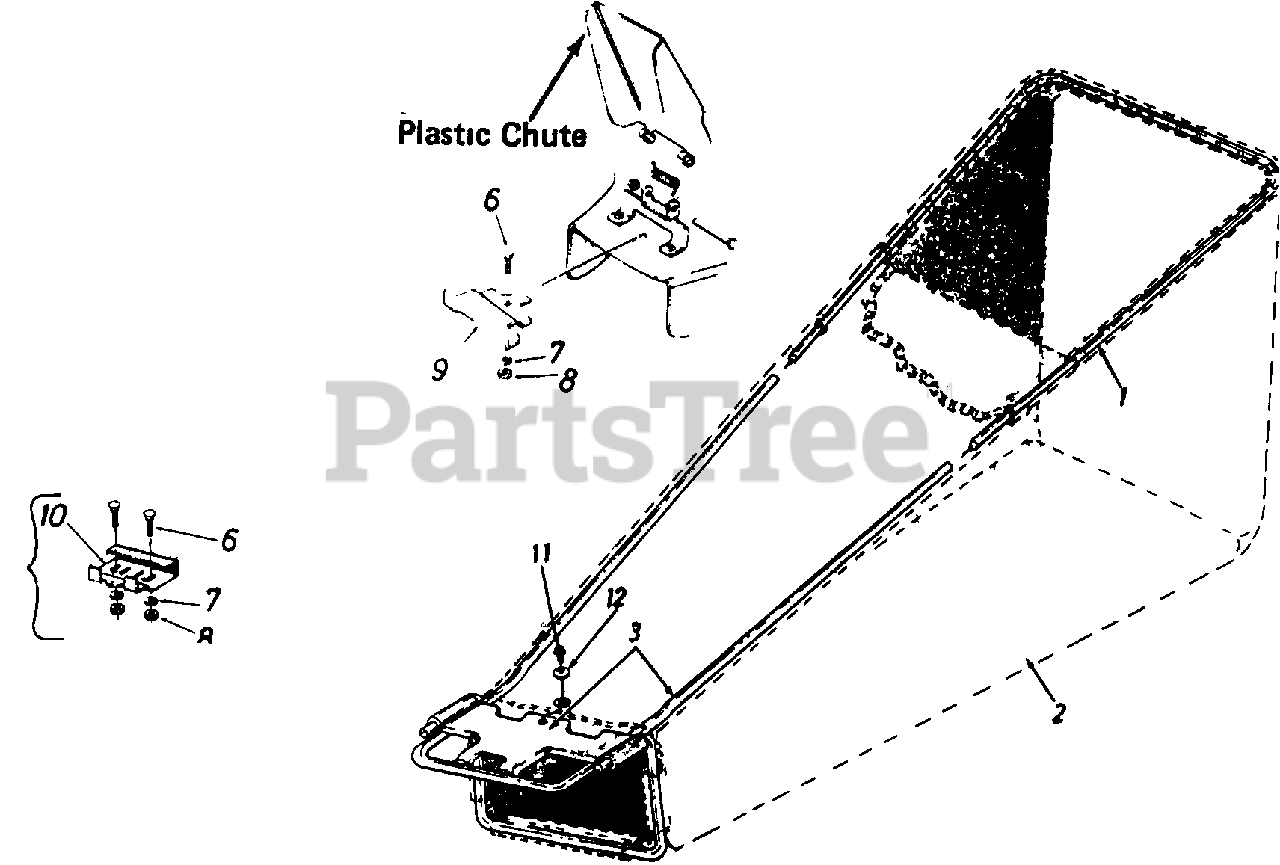

190-066-190 - White Outdoor Side Discharge Grass Catcher (1987) > Parts Diagrams (1) > Grass Catcher

  • Title
749-0677

1

Fr me-Upper

Part# 749-0677

OEM Warranty Repair Part for White Outdoor

Not available

764-0217

2

Grass Catcher Bag

Part# 764-0217

OEM Warranty Repair Part for White Outdoor

Not available

16307

3

Fram-Lower

Part# 16307

OEM Warranty Repair Part for White Outdoor

Not available

710-0167

6

Carriage Bolt

Part# 710-0167

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.50

736-0329

7

Lock Washer 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

8

H ex Nut 1/4-20 Thd.*

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

14343

9

Adapter Plate

Part# 14343

Not available

08832

10

Adapter Plate

Part# 08832

Not available

710-0599

11

Self-Tap Scr. 1/4" x 1/2" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0270

12

Bell-W ash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66
