190-076-000 - MTD Grass Catcher Kit (1991)

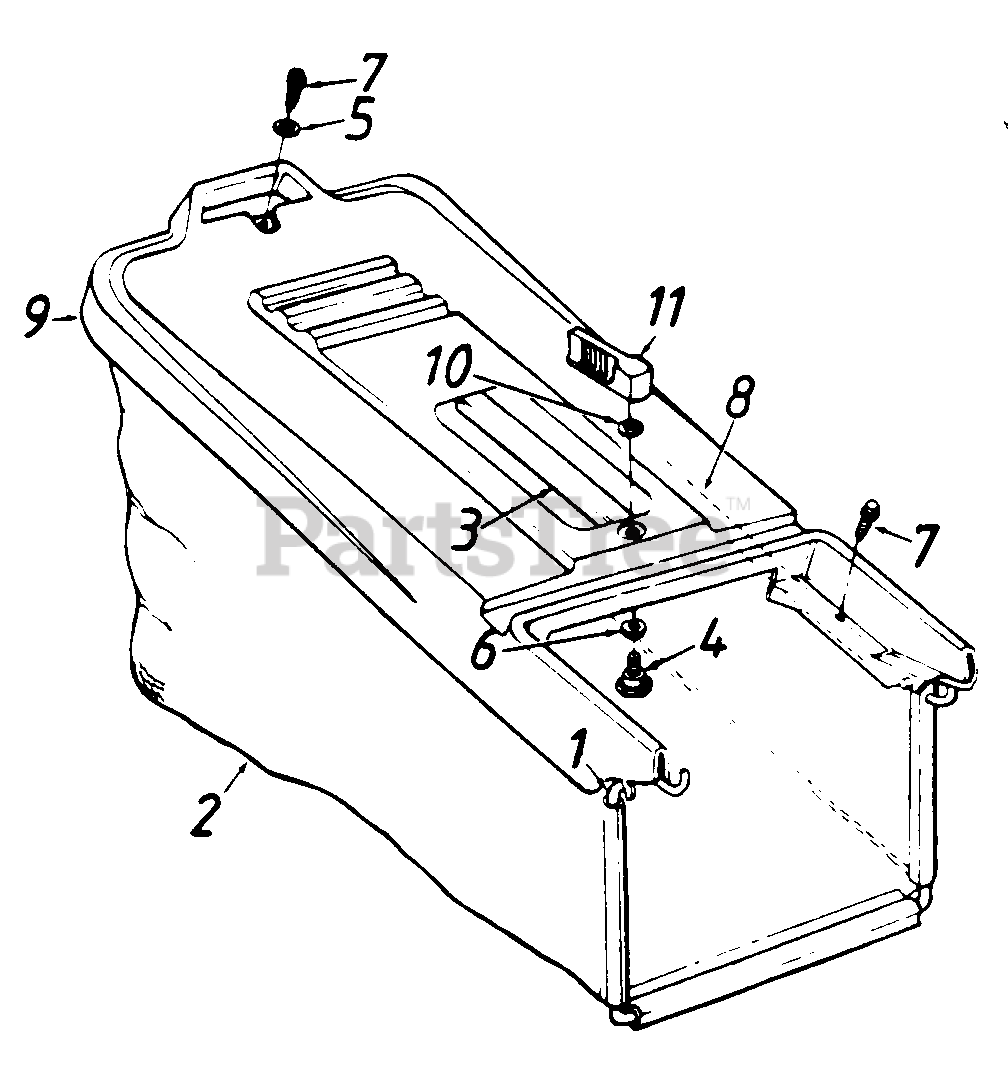

Grass Collector Assembly

190-076-000 - MTD Grass Catcher Kit (1991) > Parts Diagrams (1) > Grass Collector

  • Title
764-0411

1

Front Catcher Frame

Part# 764-0411

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

CATCHER-FRT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.19

764-0252

2

Grass Bag

Part# 764-0252 (Superseded to 964-0252)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $104.82

731-0856

3

Hardtop Handle

Part# 731-0856 (Superseded to 631-0003)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.57

738-0137

4

Shoulder Bolt

Part# 738-0137

OEM Warranty Repair Part for MTD

Not available

736-0463

5

Fl-Wash. .281 I.D.

Part# 736-0463 (Superseded to 936-0463)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0286

6

Bowed Washer

Part# 736-0286 (Superseded to 936-0286)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

710-0776

7

Hex AB-Tap Scr. 1/4 x .62"

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

749-0736B

8

Rear Catcher Frame

Part# 749-0736B

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

731-0857A

9

Hardtop Bag Cover

Part# 731-0857A (Superseded to 631-0003)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.57

736-0498

10

Internal L-Wash. 1/4" I.D.

Part# 736-0498

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.74

720-0224

11

Locking Knob

Part# 720-0224 (Superseded to 920-0224)

OEM Warranty Repair Part for MTD

Not available
