190-077-190 - White Outdoor Convertible Rear Discharge Grass Catcher (1988) Grass Catcher Parts Diagram

Convertible Rear Discharge Grass Catcher

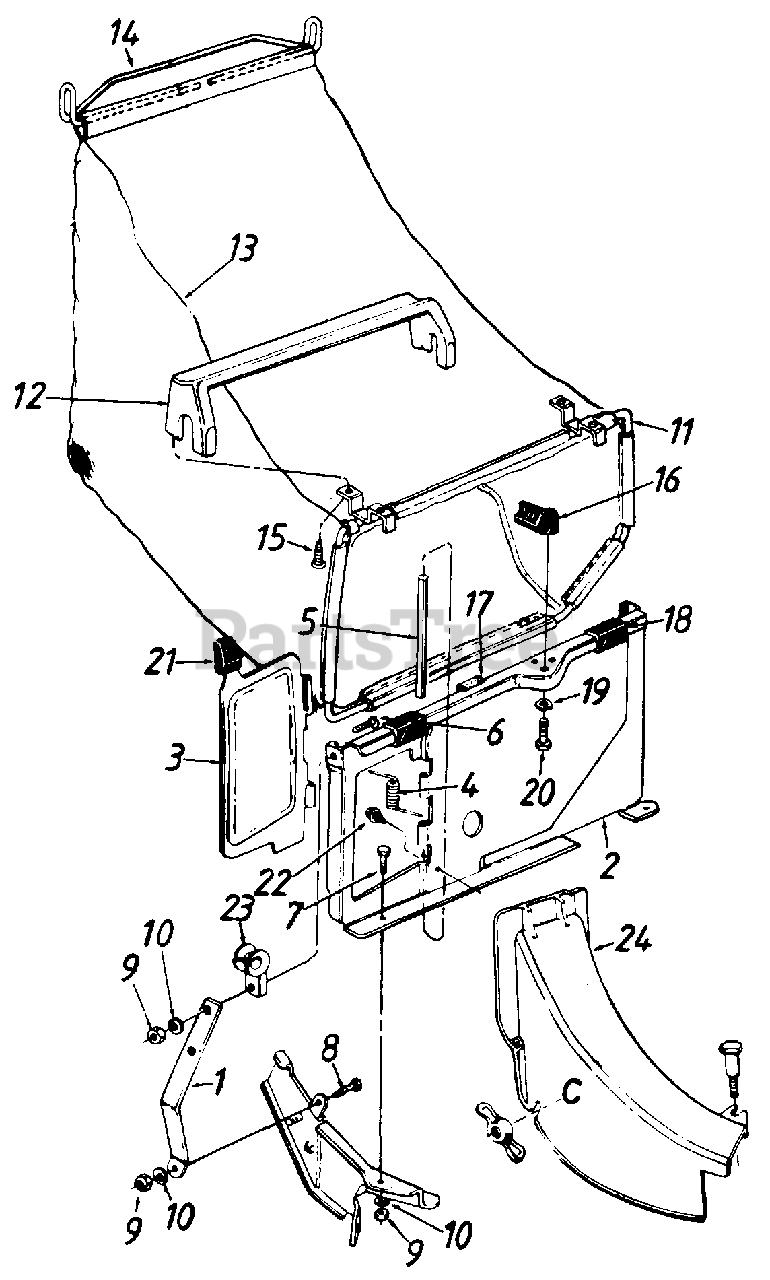

Grass Catcher Parts Diagram

  • Title

1

MTD 16129A-0637

Panel Support Brkt.

$10.99

$

Usually ships in 3-6 days

0

2

MTD 17196

Top Catcher Panel Ass'y.

Note: NLA

$

$

Not available

3

MTD 17095

Top Discharge Door

Note: NLA

$

$

Not available

4

MTD 732-0483A

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

5

MTD 747-0514

Pivot Pin

Note: NLA

$

$

Not available

6

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 910-0289

Hex Bolt 1/4-20 x .50n Lg.

$3.49

$

Usually ships in 3-6 days

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62n Lg.'

$3.99

$

In Stock, Qty 20+

0

9

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

10

MTD 936-0329

L-Wash. 1/4" l.D.

$4.49

$

In Stock, Qty 13

0

11

MTD 16702

Front Grass Catcher Frame

Note: NLA

$

$

Not available

12

MTD 731-0801

Grass Catcher Handle

$

$

Not available

13

MTD 764-0212

Grass Bag

Note: NLA

$

$

Currently unavailable

14

MTD 747-0495

Upper Bag Handle

Note: NLA

$

$

Not available

15

MTD 710-0969

Hex AB-Tap Scr. #12 x 1.0"

$4.49

$

In Stock, only 3 left!

0

16

MTD 920-0224

Grass Catcher Locking Knob

$

$

Not available

17

MTD 722-0134

Foam Strip l" Lg.

Note: NLA

$

$

Currently unavailable

18

MTD 731-0883

Panel Clip

Note: NLA

$

$

Not available

19

MTD 936-0271

Spring Wash. 32" l.D.

$4.49

$

In Stock, Qty 12

0

20

MTD 710-0751

Hex Bolt 1/4-20 x .62 Lg.

$3.99

$

In Stock, Qty 20+

0

21

MTD 720-0426

Door Grip
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

22

MTD 910-0429

Hex B-Tap Scr. #10 x .38

$3.49

$

Usually ships in 3-6 days

0

23

MTD 719-0279

Rope Guide

$14.99

$

Usually ships in 3-6 days

0

24

MTD 731-0733

Top Discharge Chute Ass'y.

Note: NLA

$

$

Not available
