190-083-000 - MTD Grass Collector Kit (1995) Grass Collector Assembly Parts Diagram

Grass Collector Kit

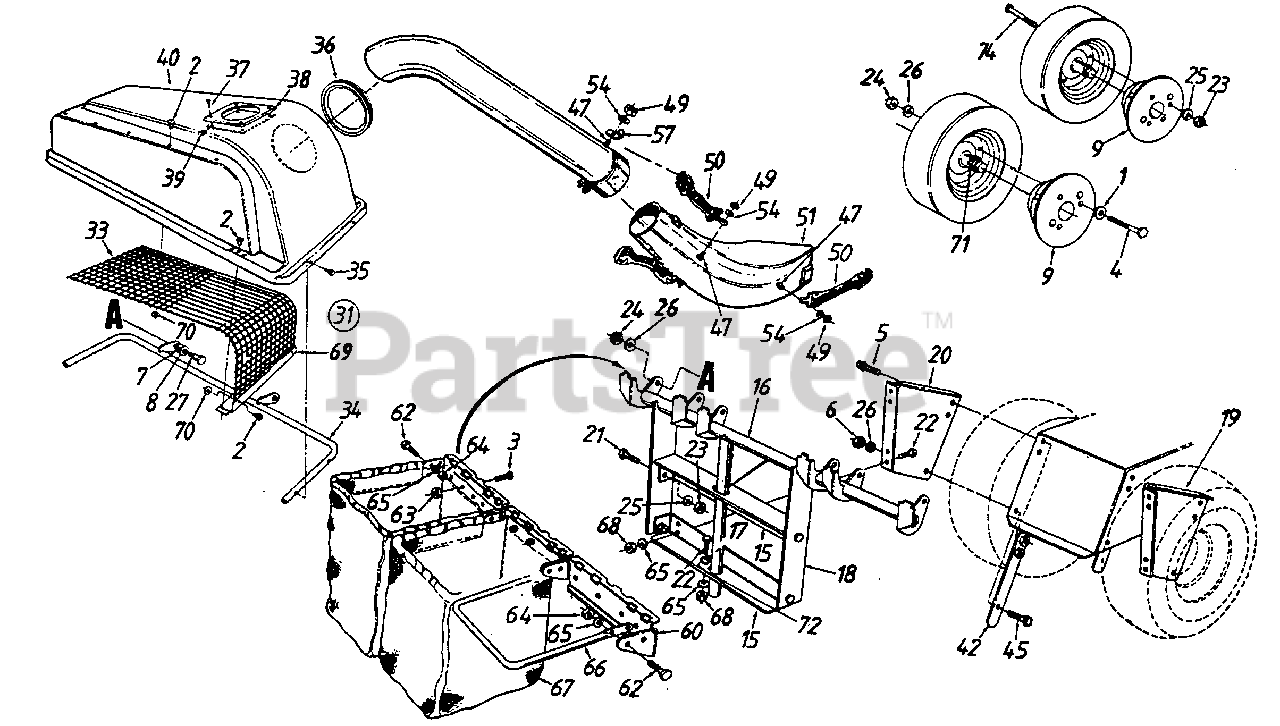

Grass Collector Assembly Parts Diagram

  • Title

1

MTD 736-0300

Fl-Wash. .385" I.D.

$3.99

$

In Stock, Qty 20+

0

2

MTD 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

3

MTD 710-0192

Truss Mach. Scr. #10-24 x .38"

$3.49

$

In Stock, Qty 11

0

4

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$13.99

$

In Stock, only 2 left!

0

5

MTD 710-0604

Hex Wash. Hd. Tap Scr. 5/16-1 8 x .62"
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0255

Bell-Wash. .515" I.D.

$4.49

$

In Stock, only 3 left!

0

8

MTD 736-0108

Fl-Wash. .510" I.D.

$6.49

$

Usually ships in 3-6 days

0

9

MTD 723-0414B

Wheel Weight

Variations

MTD 723-0414B-0637

No Longer Available WEIGHT-WHE - POWDER BLACK (0637)

$

$

Not available

$

$

?12

MTD 16810

Wheel Weight Snap Ring

$

$

Not available

15

MTD 17200A

Catcher Support Tube Mtg. Brkt.

Variations

MTD 17200A-0637

No Longer Available BRKT. CATC - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 749-0750

Catcher Support Tube Ass'y.
(Superseded to 689-00002-0637)

Variations

MTD 749-0750-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 14

0

18

MTD 16593

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

$32.99

$

Usually ships in 3-6 days

0

19

MTD 17190

Grass Catcher Support Brkt.-R.H.

Variations

MTD 17190-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 17191

Grass Catcher Support Brkt.-L. H.
(Superseded to 17191-0637)

Variations

MTD 17191-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 710-0118

Hex Bolt 5/16-38 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.-Grade 5

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

27

MTD 738-0380

Shld. Bolt 3/8-16 x .500" Dia.

$7.49

$

In Stock, Qty 18

0

?28

MTD 736-0253

Bell-Wash. .505" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

31

MTD 17204

Grass Catcher Cover Ass'y. Comp.

$

$

Not available

33

MTD 723-0407

Screen

$

$

Not available

34

MTD 749-0747

Hinge Brkt. Ass'y.
(Superseded to 749-0747-0637)

Variations

MTD 749-0747-0637

Hinge Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-1005

Hex Tap Scr. 1/4-20 x .5" Lg.
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

36

MTD 723-0413

Tube Seal

$28.99

$

In Stock, only 2 left!

0

37

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

38

MTD 731-0824

Plastic Plate

$

$

Not available

39

MTD 726-0244

Speed Nut
(Superseded to 712-0147)

$6.49

$

Usually ships in 3-6 days

0

40

MTD 731-0896

Grass Catcher Cover

$

$

Not available

42

MTD 17192

Retainer Brkt. Ass'y.

Variations

MTD 17192-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

47

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

49

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

50

MTD 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

51

MTD 731-0925

Discharge Chute
(Superseded to 731-0925C)

$151.99

$

In Stock, only 2 left!

0

?53

MTD 731-0926

Catcher Elbow Tube
(Superseded to 731-0926B)

$132.99

$

Usually ships in 3-6 days

0

54

MTD 736-0175

L-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

60

MTD 17201

Bag Frame Hanger Brkt.
(Superseded to 17201A-0637)

Variations

MTD 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

62

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

63

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

64

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

65

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

66

MTD 749-0745

Catcher Bag Frame
(Superseded to 749-0745A-0637)

$56.99

$

In Stock, only 1 left!

0

67

MTD 764-0251

Grass Catcher Bag
(Superseded to 964-0251)

$83.99

$

In Stock, Qty 20+

0

68

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

69

MTD 17202

Screen Mtg. Brkt.

Variations

MTD 17202-0637

No Longer Available BRACKET SC - POWDER BLACK (0637)

$

$

Not available

$

$

70

MTD 736-0400

Flat Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 16

0

71

MTD 722-0157

Foam Strip 1-1/8" x 1-1/2" x 3/8"

$4.49

$

Usually ships in 3-6 days

0

72

MTD 17247

Support Tubing Adapter Brkt.
(Superseded to 17247-0637)

Variations

MTD 17247-0637

BRACKET.-TUBING ADAPT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

74

MTD 710-0190

Hex Bolt 5/16-18 x 4" Lg.

$7.49

$

Usually ships in 3-6 days

0
