190-083-190 - White Outdoor Triple Bag Grass Collector (1988)

Triple Bag Grass Collector

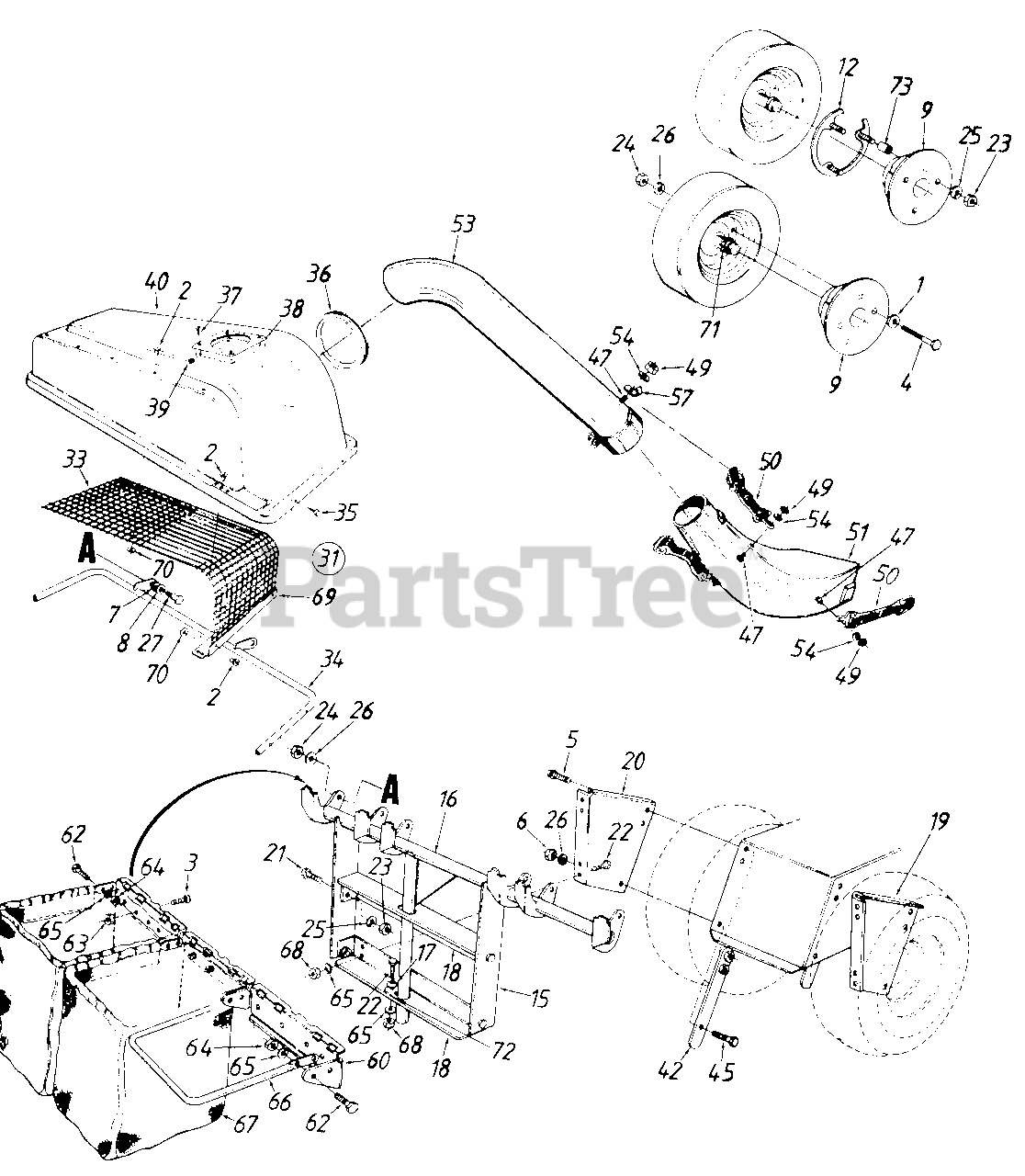

190-083-190 - White Outdoor Triple Bag Grass Collector (1988) > Parts Diagrams (1) > Grass Collector

  • Title
736-0300

1

Fl-Wash. .385" I.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

728-0123

2

Pop Rivet

Part# 728-0123 (Superseded to 928-0123)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

710-0192

3

Truss Mach. Scr. #10-24 x .38" Lg.

Part# 710-0192

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.29

710-0693

4

Hex Bolt 3/8-16 x 4.5" Lg.

Part# 710-0693

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.55

710-0604

5

Hex Wash. Hd. Tap Scr. 5/16-18 x .62

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0241

6

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0255

7

Bell-Wash. .515" l.D.

Part# 736-0255 (Superseded to 936-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0108

8

Fl-Wash. .510" l.D.

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.50

723-0414

9

Wheel Weight

Part# 723-0414

OEM Warranty Repair Part for White Outdoor

Not available

16810

12

Wheel Weight Snap Ring

Part# 16810

OEM Warranty Repair Part for White Outdoor

Not available

17200

15

Catcher Support Tube Mtg. Brkt.

Part# 17200 (Superseded to 17200A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

749-0750

16

Catcher Support Tube Ass'y.

Part# 749-0750

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SUPPORT ASSY-GRASSCATCHER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0270

17

Bell-Wash. .265" l.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

16593

18

Catcher Latch and Support Brkt.

Part# 16593 (Superseded to 783-0601-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.05

17190

19

Grass Catcher Support Brkt.-R.H.

Part# 17190

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

17191

20

Grass Catcher Support Brkt.-L.H.

Part# 17191

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

21

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0751

22

Hex Bolt 1/4-20 x .62" Lg.- 0 Grade 5

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

712-0267

23

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0798

24

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0119

25

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

26

L-Wash. 3/8" l.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

738-0380

27

Shld. Bolt 3/8-16 x .500" Dia.

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.39

736-0253

Bell-Wash. .505" I.D. x 1.00" O.D.

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

17204

31

Grass Catcher Cover Ass'y. Comp.

Part# 17204

OEM Warranty Repair Part for White Outdoor

Not available

723-0407

33

Screen

Part# 723-0407

OEM Warranty Repair Part for White Outdoor

Not available

749-0747

34

Hinge Brkt. Ass'y.

Part# 749-0747

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-HINGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-1005

35

Hex Tap Scr. 1/4-20 x .5' Lg.

Part# 710-1005 (Superseded to 710-0599)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

723-0413

36

Tube Seal

Part# 723-0413

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.31

710-0351

37

Truss Mach. B-Tap Scr. #10 x .5" Lg

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

731-0824

38

Plastic Plate

Part# 731-0824

OEM Warranty Repair Part for White Outdoor

Not available

726-0244

39

Speed Nut

Part# 726-0244 (Superseded to 712-0147)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

731-0896

40

Grass Catcher Cover

Part# 731-0896

OEM Warranty Repair Part for White Outdoor

Not available

17192

42

Retainer Brkt. Ass'y.

Part# 17192

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRKT ASSY-RETAINER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0180

45

Hex Bolt 3/8-24 x .75 Lg.

Part# 710-0180

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0289

47

Hex Bolt 1/4-20 x .50" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

712-0324

49

Hex Ins. L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.48

723-0383

50

Retainer Strap Ass'y.

Part# 723-0383 (Superseded to 923-0383)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.16

731-0925

51

Discharge Chute

Part# 731-0925 (Superseded to 731-0925C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $105.82

731-0926

53

Catcher Elbow Tube

Part# 731-0926 (Superseded to 731-0926B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $94.48

736-0175

54

L-Wash. .270n l.D. x .57" O.D.

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

16606

57

Retainer Hook Brkt.

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.92

17201

60

Bag Frame Hanger Brkt.

Part# 17201

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BAG HANGER BRACKET BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.84

710-0412

62

Hex Bolt 1/4-28 x .75n Lg.

Part# 710-0412

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.68

712-0272

63

Hex Sems Nut #10-24 Thd.

Part# 712-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

712-0138

64

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

736-0329

65

L-Wash. 1/4" l.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

749-0745

66

Catcher Bag Frame

Part# 749-0745 (Superseded to 749-0745A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $39.27

764-0251

67

Grass Catcher Bag

Part# 764-0251 (Superseded to 964-0251)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $57.79

712-0287

68

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

17202

69

Screen Mtg. Brkt.

Part# 17202

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET SCREEN MTG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0400

70

Flat Wash. 1/4n l.D.

Part# 736-0400 (Superseded to 936-0400)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.39

722-0157

71

Foam Strip 1-1/8" x 1-1/2" x 3/8

Part# 722-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

17247

72

Support Tubing Adapter Brkt.

Part# 17247

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET.-TUBING ADAPTER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.31

750-0527

73

Spacer

Part# 750-0527

OEM Warranty Repair Part for White Outdoor

Not available
