190-086-000 - MTD Grass Catcher (1990)

Grass Catcher

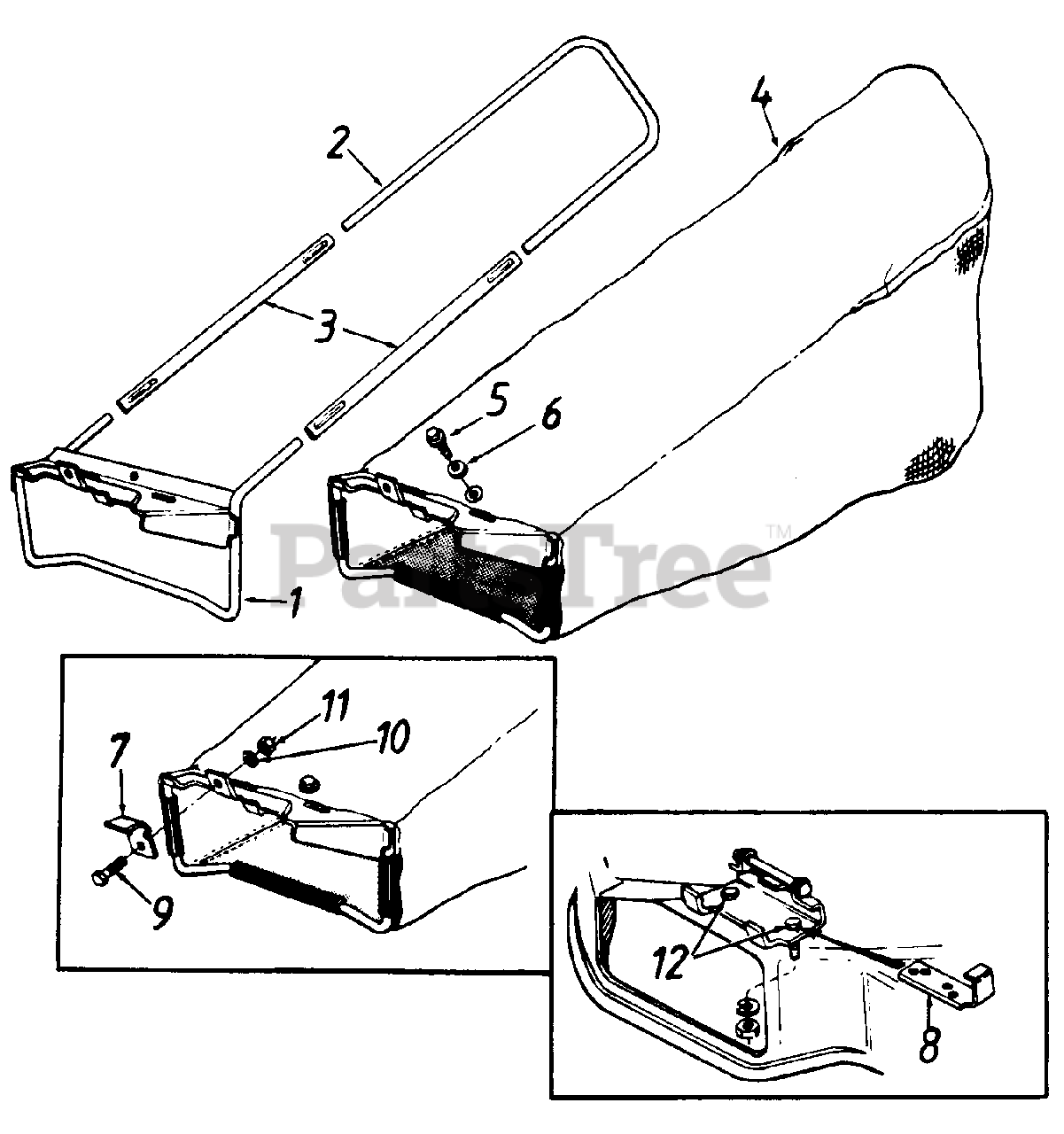

190-086-000 - MTD Grass Catcher (1990) > Parts Diagrams (1) > Grass Catcher

  • Title
16839B

1

N Frame Lower Ass'y.

Part# 16839B

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

FRAME ASM-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.71

747-0575

2

Frame Upper

Part# 747-0575

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

FRAME-UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.87

749-0774

3

Tube Support

Part# 749-0774

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

TUBE-CATCHER SUPPO

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.90

764-0271

4

Grass Bag

Part# 764-0271 (Superseded to 964-0271)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.52

710-0599

5

Hex Wash Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0270

6

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

16892

7

Deflector Stop

Part# 16892

OEM Warranty Repair Part for MTD

Not available

16893

8

Support Plate

Part# 16893

OEM Warranty Repair Part for MTD

Not available

710-0289

9

Hex Bolt 1/4-20 x .5" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

736-0329

10

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

11

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0258

12

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66
