190-086-190 - White Outdoor Side Discharge Grass Catcher (1991)

Side Discharge Grass Catcher

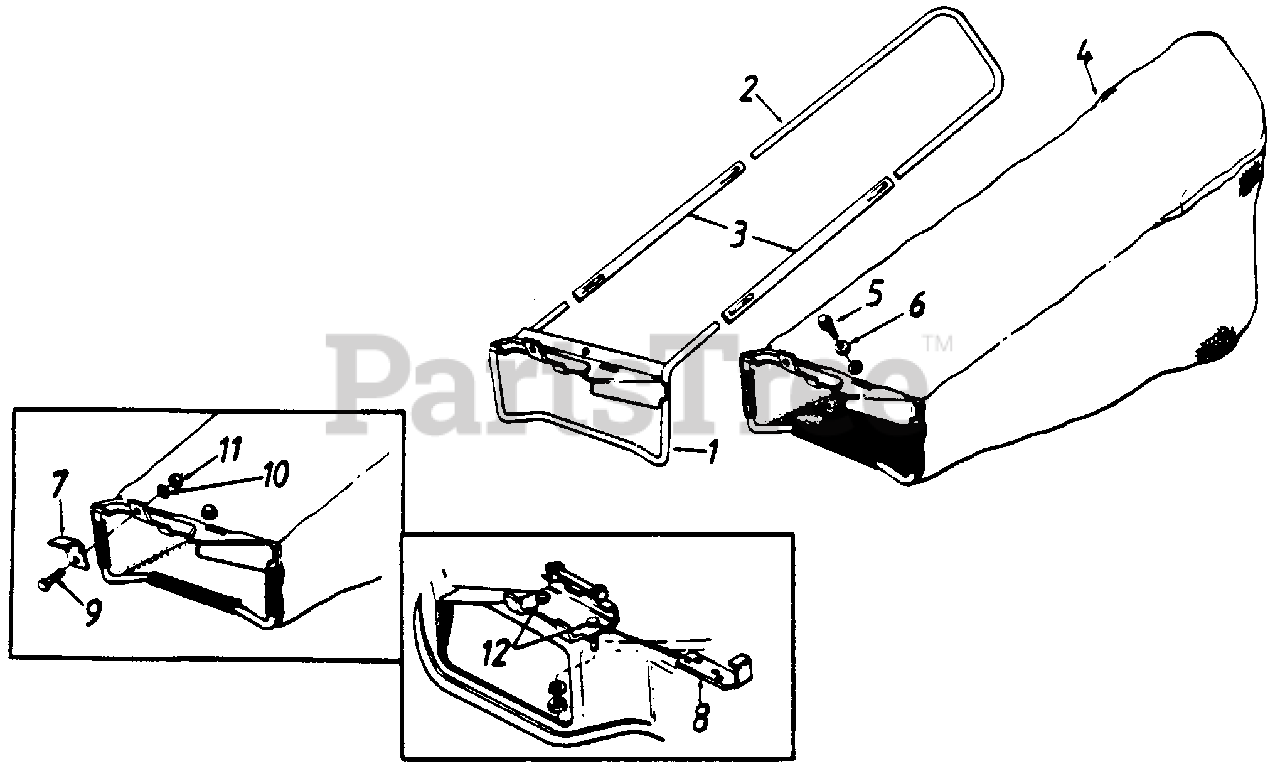

190-086-190 - White Outdoor Side Discharge Grass Catcher (1991) > Parts Diagrams (1) > Grass Catcher

  • Title
16839B

1

Frame-Lower Ass'y.

Part# 16839B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME ASSY-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.87

747-0575

2

Frame-Upper

Part# 747-0575

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME-UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.75

749-0774

3

Tube Support

Part# 749-0774

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TUBE-CATCHER SUPPO

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.03

754-0271

4

Grass Bag

Part# 754-0271 (Superseded to 954-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.17

710-0599

5

Hex Wash Hd. TT-Tap Scr. 1/4-20 x 5 Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0270

6

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

16892

7

Deflector Stop

Part# 16892

OEM Warranty Repair Part for White Outdoor

Not available

16893

8

Support Plate

Part# 16893

OEM Warranty Repair Part for White Outdoor

Not available

710-0289

9

Hex Bolt 1/4-20 x .5 Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

738-0329

10

L-Wash. 1/4" I.D.

Part# 738-0329

Not available

712-0287

11

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

710-0258

12

Hex Bolt l/4-20 x .s2 Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87
