190-106-000 - White Outdoor Side Discharge Grass Catcher (2007)

Side Discharge Grass Catcher

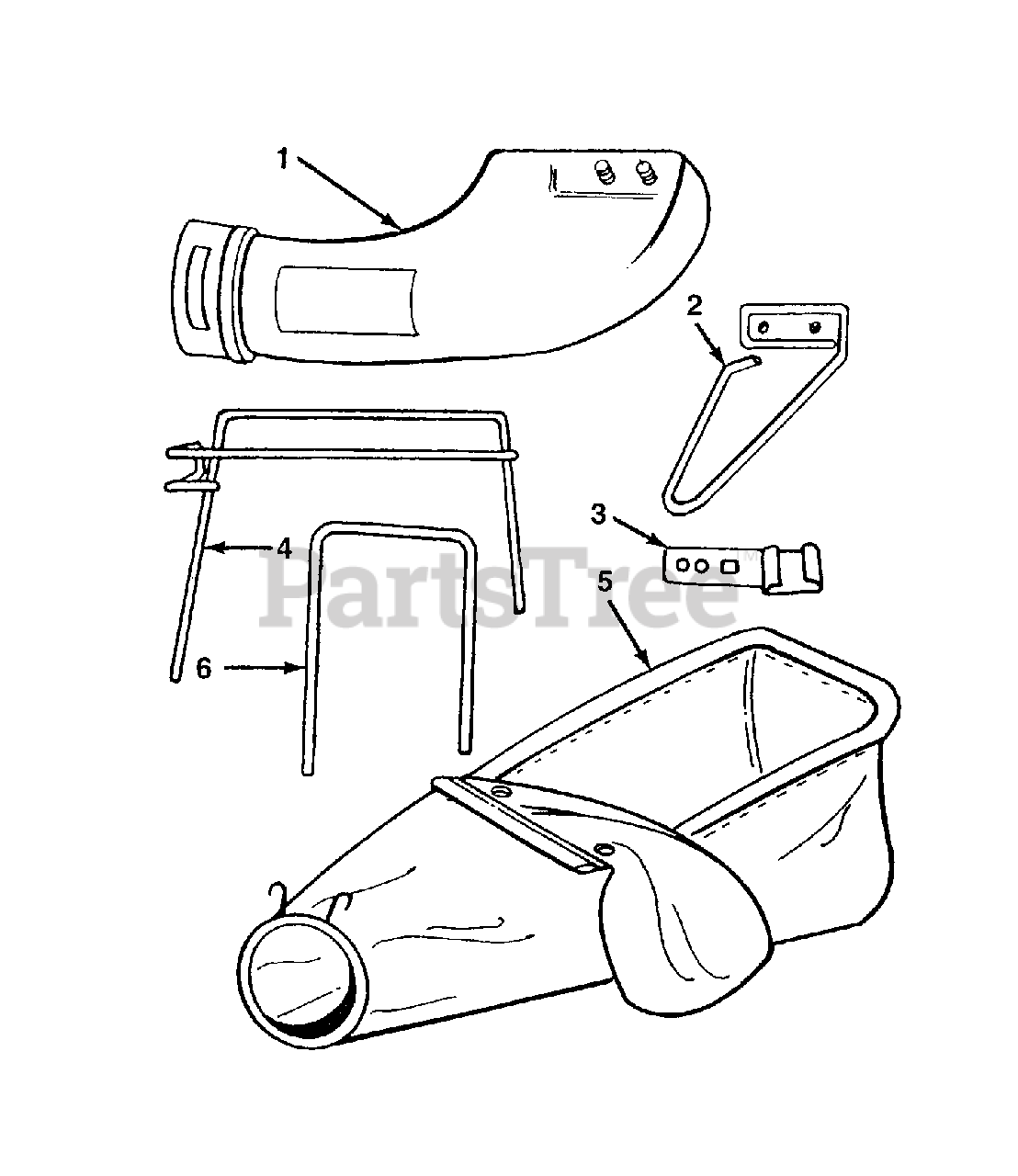

190-106-000 - White Outdoor Side Discharge Grass Catcher (2007) > Parts Diagrams (1) > Grass Catcher

  • Title
731-1424

1

Plastic Chute

Part# 731-1424

OEM Warranty Repair Part for White Outdoor

Not available

747-0891

2

Chute Mounting Bracket w/Wire

Part# 747-0891

OEM Warranty Repair Part for White Outdoor

Not available

782-7007

3

Handle Bracket

Part# 782-7007 (Superseded to 982-7007)

OEM Warranty Repair Part for White Outdoor

Not available

747-0892

4

Bag Frame

Part# 747-0892

OEM Warranty Repair Part for White Outdoor

Not available

764-0453

5

Bag w/Clamp Ring

Part# 764-0453 (Superseded to 964-0453)

OEM Warranty Repair Part for White Outdoor

Not available

749-0931

6

Upper Support Tube

Part# 749-0931

OEM Warranty Repair Part for White Outdoor

Not available

710-0286

?7

Truss Mach. Scr. 1/4-2 x .5" Lg.

Part# 710-0286

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0271

?8

Hex Sems Nut 1/4-20 Thd.

Part# 712-0271

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81
