190-110-000 - White Outdoor Side Discharge Grass Collector (2001) Grass Catcher Parts Diagram

Side Discharge Grass Collector

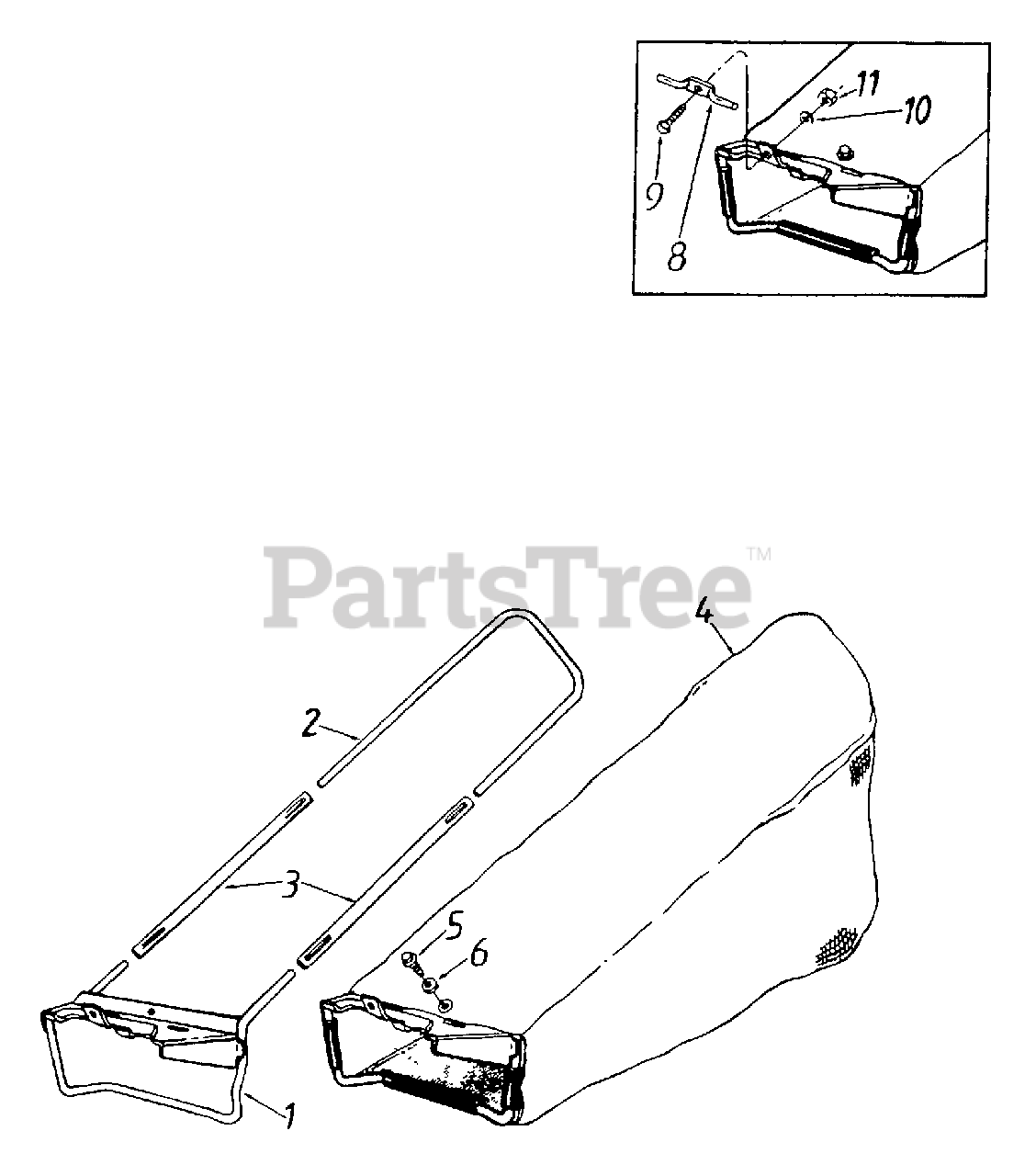

Grass Catcher Parts Diagram

  • Title
1

White Outdoor 16839B

Frame-Lower Ass'y.
(Superseded to 16839C-0637)

Variations

White Outdoor 16839B-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

2

White Outdoor 747-0575

Frame-Upper
(Superseded to 747-0575-0637)

Variations

White Outdoor 747-0575-0637

FRAME-UPPER - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

3

White Outdoor 749-0774

Tube Support
(Superseded to 749-0774-0637)

Variations

White Outdoor 749-0774-0637

TUBE-CATCHER SUPPO - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

4

White Outdoor 764-0271

Grass Bag
(Superseded to 964-0271)

$107.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 747-0870

Grass Bag Hook

$9.49

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 14

0

11

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, only 3 left!

0
