190-110-190 - White Outdoor Side Discharge Grass Collector (2007)

Side Discharge Grass Collector

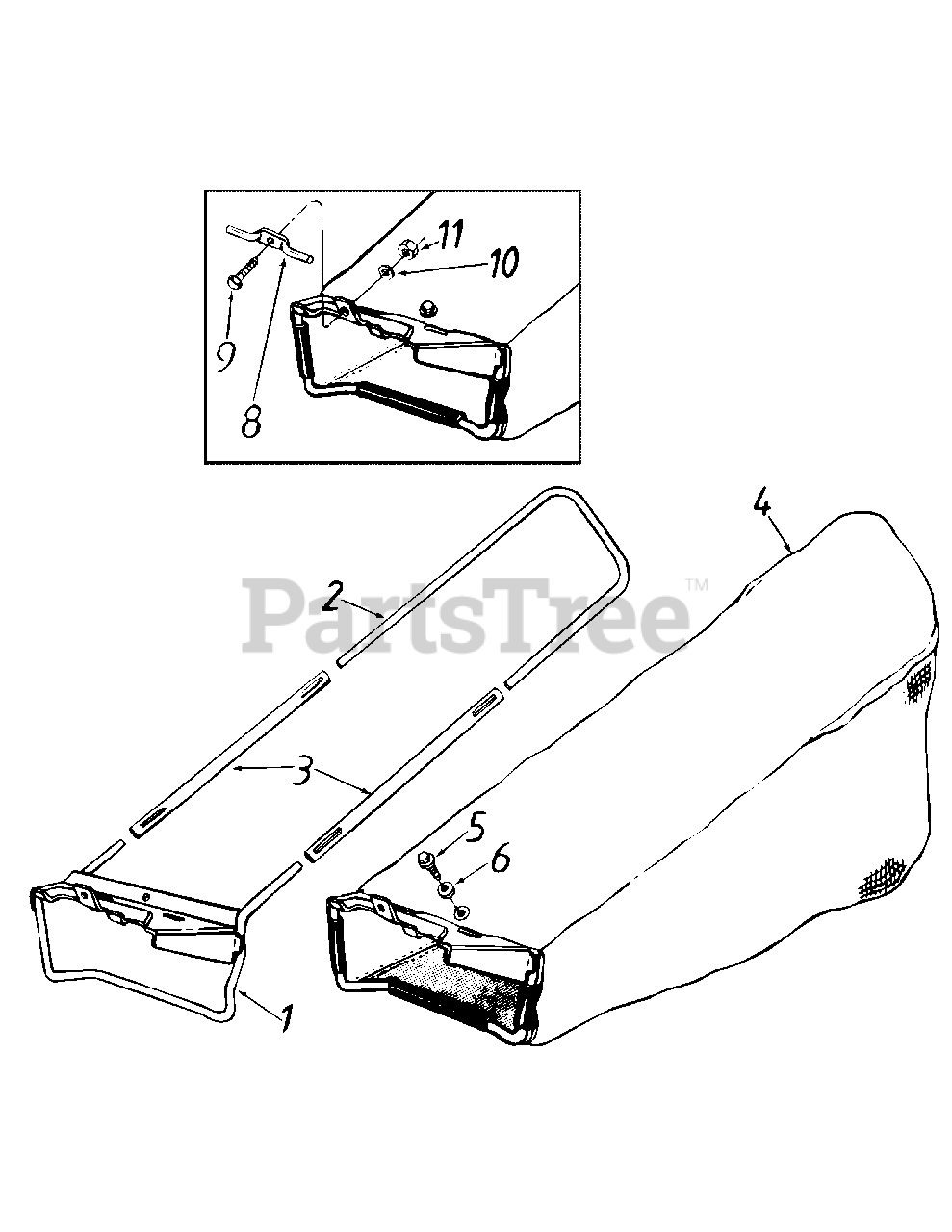

190-110-190 - White Outdoor Side Discharge Grass Collector (2007) > Parts Diagrams (1) > General Assembly

  • Title
16839B

1

Frame - Lower Ass'y.

Part# 16839B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME ASSY-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.87

747-0575

2

Frame - Upper

Part# 747-0575

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME-UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.75

749-0774

3

Tube Support

Part# 749-0774

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TUBE-CATCHER SUPPO

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.03

764-0271

4

Grass Bag

Part# 764-0271 (Superseded to 964-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $91.40

710-0599

5

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0270

6

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

747-0870

8

Grass Bag Hook

Part# 747-0870

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.95

710-0751

9

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

10

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

712-3006

11

Hex Nut 1/4-20 Thd.

Part# 712-3006

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24
