190-182 - Troy-Bilt Twin Bagger (2003) General Assembly Parts Diagram

Twin Bagger

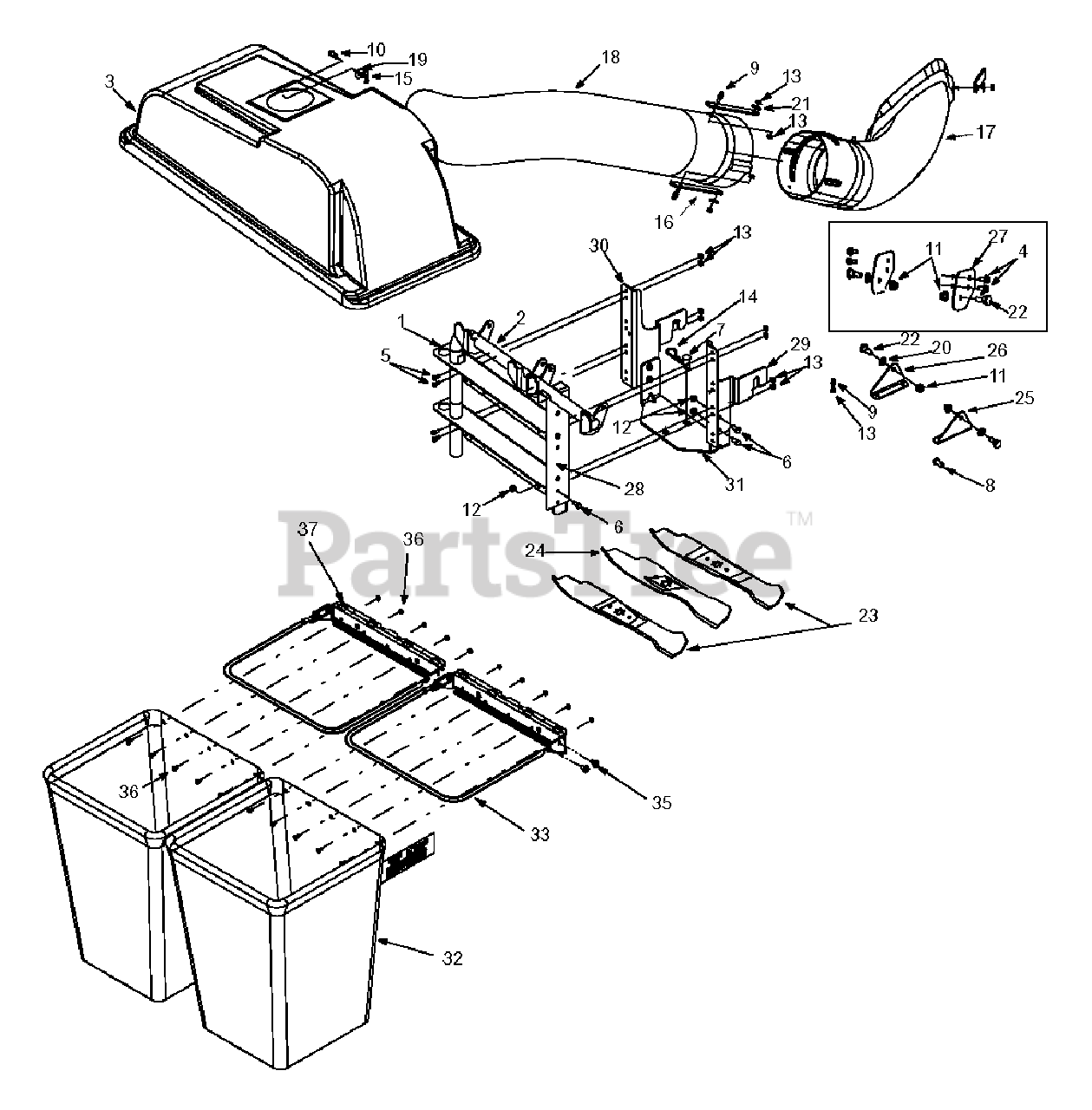

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 16587D

Support Bracket: Bagger
(Superseded to 16587D-0637)

Variations

Troy-Bilt 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Troy-Bilt 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$180.99

$

Usually ships in 3-6 days

0

$180.99

$

Usually ships in 3-6 days

0

3

MTD 664-04017

Grasscatcher Cover Assembly

$

$

Not available

4

Troy-Bilt 710-0623

Self-tapping Screw 3/8-16 x 0.75"

$3.99

$

In Stock, Qty 12

0

5

Troy-Bilt 710-0751

Hex Screw 1/4-20 x0.620

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Hex Screw 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-0309A

Clevis Pin

$11.99

$

In Stock, Qty 10

0

Troy-Bilt 711-0310

Clevis Pin

Note: (On older model tractors)

$9.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$7.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-1421

Clevis Pin

$6.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 712-0459

Lock Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3004A

Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3027

Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 714-0117

Hairpin Clip

$3.99

$

In Stock, Qty 11

0

15

Troy-Bilt 714-0145

Click Pin

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 723-04008

Chute Strap
(Superseded to 723-04008A)

$8.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-04159

Discharge Chute 46"
(Superseded to 931-04159A)

$108.99

$

In Stock, Qty 5

0

Troy-Bilt 731-04153

Discharge Chute 38"/42" Bag
(Superseded to 731-04153A)

$80.99

$

In Stock, Qty 5

0

18

Troy-Bilt 731-0926B

Catcher Tube

$132.99

$

Usually ships in 3-6 days

0

Troy-Bilt 731-0899E

Chute Tube (model 190-180)

$103.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0407

Bell Washer

$3.99

$

In Stock, Qty 7

0

21

Troy-Bilt 736-3092

Flat Washer

$3.99

$

In Stock, Qty 13

0

22

Troy-Bilt 738-1020

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 742-0644

Blade 16.28" Lg. (model 190-182)
(Superseded to 942-0644)

$26.99

$

In Stock, Qty 14

0

24

Troy-Bilt 742-0645

Blade 14.88" Lg. (model 190-182)
(Superseded to 942-0645)

$25.99

$

In Stock, Qty 7

0

25

Troy-Bilt 783-04132

Supt. Bracket (model 190-180) LH
(Superseded to 983-04132A)

Variations

Troy-Bilt 783-04132-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 783-04137

Supt. Bracket (model 190-180) RH
(Superseded to 983-04137A)

Variations

Troy-Bilt 783-04137-0637

SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 783-04138

Support Bracket (model 190-182)

Variations

Troy-Bilt 783-04138-0637

SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

28

Troy-Bilt 783-0601

Mounting Bracket
(Superseded to 783-0601-0637)

Variations

Troy-Bilt 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 783-0673

Hook: Mounting Bracket
(Superseded to 783-0673B-0637)

Variations

Troy-Bilt 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 783-0764

Mounting Bracket LH
(Superseded to 783-0764B-0637)

Variations

Troy-Bilt 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 783-0765

Bracket: Cross Support
(Superseded to 783-0765-0637)

Variations

Troy-Bilt 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$72.99

$

In Stock, only 1 left!

0

$72.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 764-0221

Catcher Bag
(Superseded to 964-0221)

$70.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

Troy-Bilt 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 712-0272

Hex Sems Nut, #10-24

$3.99

$

In Stock, Qty 7

0

35

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 710-0473

Machine Screw, , #10-24 x .5

$3.99

$

In Stock, Qty 7

0

37

Troy-Bilt 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

Troy-Bilt 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0
