190-435-190 - White Outdoor Twin Bag Grass Collector Mounting Kit (1995) Twin Bag Grass Collector Parts Diagram

Twin Bag Grass Collector Mounting Kit

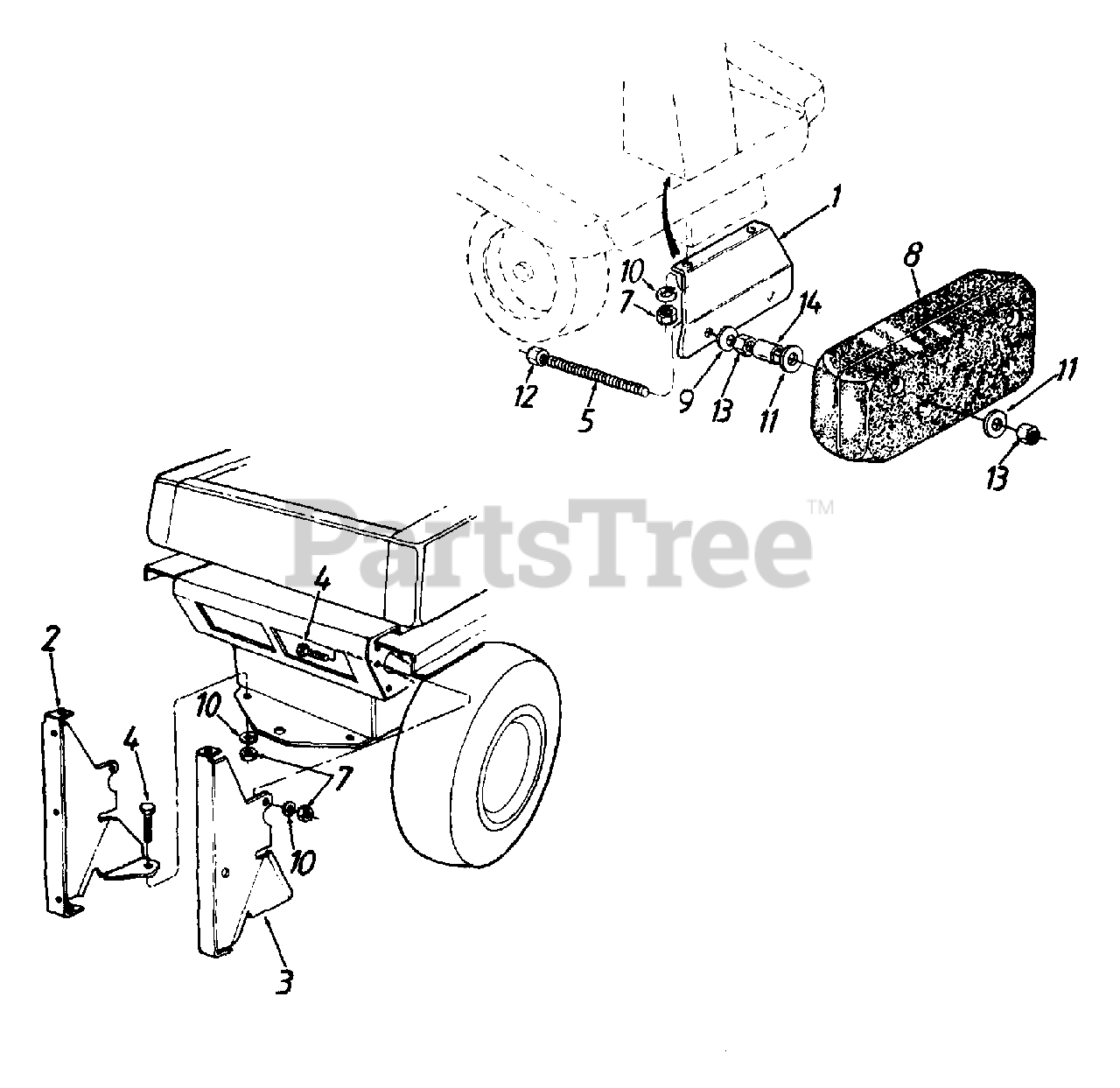

Twin Bag Grass Collector Parts Diagram

  • Title

1

MTD 15540

Counterweight Support Brkt.

Note: NLA

Variations

15540-0637

MTD 15540-0637

No Longer Available BRKT.-SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 15970A

Catcher Support Brkt. - R.H.

$

$

Not available

3

MTD 15971A

Catcher Support Brkt. - L.H.

Note: NLA

$

$

Not available

4

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-3373

Stud 7/16-14 x 5-5/8" Lg.

$

$

Not available

7

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

8

MTD 723-0367

Front Counterweight

Note: NLA

$

$

Not available

9

MTD 736-0439

Bell-Wash. 7/16" I.D.

$3.99

$

Usually ships in 3-6 days

0

10

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0322

Fl-Wash. .45" I.D.

$9.99

$

In Stock, only 4 left!

0

12

MTD 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 8

0

13

MTD 912-3019

Hex Nut 7/16-14 Thd.
(Superseded to 712-3019)

$7.49

$

In Stock, Qty 6

0

14

MTD 750-0499

Spacer

$25.99

$

Usually ships in 3-6 days

0
