190-467-000 - MTD Gang Reel Assembly (1987)

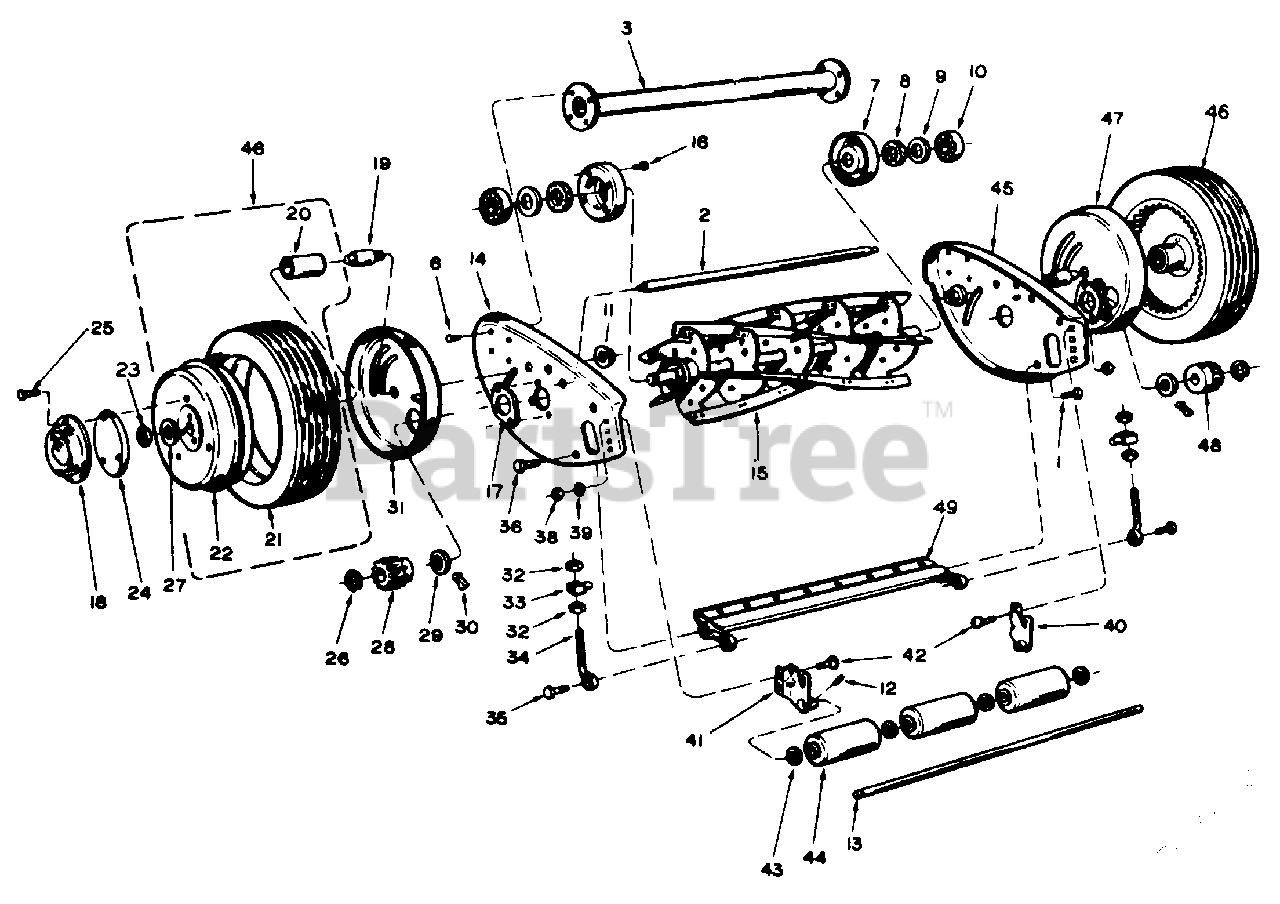

Gang Reel Assembly

190-467-000 - MTD Gang Reel Assembly (1987) > Parts Diagrams (2) > Gang Reel

  • Title
1509-086

Screw Front L.H. Thd.

Part# 1509-086

OEM Warranty Repair Part for MTD

Currently unavailable

2624-110

2

Spacer End Plate

Part# 2624-110

OEM Warranty Repair Part for MTD

Currently unavailable

1112-015

3

Spacer Tube Ass'y.

Part# 1112-015

OEM Warranty Repair Part for MTD

Currently unavailable

1530-006

6

Rivet 3/16 x 3/8 Rd. Hd.*

Part# 1530-006

OEM Warranty Repair Part for MTD

Currently unavailable

1629-028

7

Retainer

Part# 1629-028

OEM Warranty Repair Part for MTD

Currently unavailable

0104-000

8

Felt Washer

Part# 0104-000

OEM Warranty Repair Part for MTD

Currently unavailable

0106-000

9

Felt Retainer

Part# 0106-000

OEM Warranty Repair Part for MTD

Currently unavailable

0003-000

10

Bearing

Part# 0003-000

OEM Warranty Repair Part for MTD

Not available

1137-003

11

Nut- Special

Part# 1137-003

OEM Warranty Repair Part for MTD

Not available

1548-007

12

Roll Pin

Part# 1548-007

OEM Warranty Repair Part for MTD

Currently unavailable

1632-084

13

Roller Shaft

Part# 1632-084

OEM Warranty Repair Part for MTD

Not available

1129-180

14

End Plate Trunnions - L.H.

Part# 1129-180

OEM Warranty Repair Part for MTD

Currently unavailable

3135-036

15

Reel Ass'y. - 21 "

Part# 3135-036

OEM Warranty Repair Part for MTD

Currently unavailable

1530-020

16

Rivet 3/16 x 13/32 Rd. Hd.*

Part# 1530-020 (Superseded to 728-0131)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.21

1629-009

17

Bearing Retainer

Part# 1629-009

OEM Warranty Repair Part for MTD

Currently unavailable

2674-027

18

Hub Cap

Part# 2674-027

OEM Warranty Repair Part for MTD

Currently unavailable

1631-051

19

Axle

Part# 1631-051

OEM Warranty Repair Part for MTD

Not available

1652-052

20

Bearing

Part# 1652-052

OEM Warranty Repair Part for MTD

Not available

2619-034

21

Ti re

Part# 2619-034

OEM Warranty Repair Part for MTD

Not available

1110-030

22

Drive Wheel - Less Tire

Part# 1110-030

OEM Warranty Repair Part for MTD

Not available

1650-001

23

Retaining Ring

Part# 1650-001 (Superseded to 916-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.50

2718-003

24

Wheel Weight

Part# 2718-003

OEM Warranty Repair Part for MTD

Not available

1511-029

25

Scr..#10-32 x 1 3/8 Thd. Cutting

Part# 1511-029

OEM Warranty Repair Part for MTD

Currently unavailable

1650-021

26

Retaining Ring*

Part# 1650-021 (Superseded to AF-1650-21)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

1540-118

27

Washer

Part# 1540-118

OEM Warranty Repair Part for MTD

Not available

0428-000

28

Pinion Gear- L.H.

Part# 0428-000

OEM Warranty Repair Part for MTD

Not available

0109-000

29

Felt Washer

Part# 0109-000

OEM Warranty Repair Part for MTD

Currently unavailable

0323-000

30

Pawl

Part# 0323-000

OEM Warranty Repair Part for MTD

Not available

1118-014

31

Gear Housing- L.H.

Part# 1118-014

OEM Warranty Repair Part for MTD

Currently unavailable

0052-000

32

Hex Nut 3/8-24 Semi Fin*

Part# 0052-000 (Superseded to 712-0241)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

0011-000

33

Trunnion

Part# 0011-000

OEM Warranty Repair Part for MTD

Not available

0451-000

34

Cutter Bar Adjusting Bolt

Part# 0451-000

OEM Warranty Repair Part for MTD

Not available

0453-000

35

Screw- Rear

Part# 0453-000

OEM Warranty Repair Part for MTD

Not available

0455-000

36

Screw - Front R.H. Thd.

Part# 0455-000

OEM Warranty Repair Part for MTD

Not available

0070-000

38

Nut 5/8-18*

Part# 0070-000 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

39

L. Wash . 5/16 " I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

2132-045

40

Roller Brkt. - R.H.

Part# 2132-045

OEM Warranty Repair Part for MTD

Not available

2132-044

41

Roller Brkt. - L.H.

Part# 2132-044

OEM Warranty Repair Part for MTD

Not available

2003-000

42

Carr. Bolt 5/16-18 x 1*

Part# 2003-000

OEM Warranty Repair Part for MTD

Not available

1540-059

43

Washer 1/2 x 11/16*

Part# 1540-059

OEM Warranty Repair Part for MTD

Not available

1658-012

44

Roller

Part# 1658-012

OEM Warranty Repair Part for MTD

Not available

1129-181

45

End Plate with Trunnions - R.H.

Part# 1129-181

OEM Warranty Repair Part for MTD

Currently unavailable

1108-095

46

Drive Wheel Ass'y. wire

Part# 1108-095

OEM Warranty Repair Part for MTD

Not available

1118-013

47

Gear Housing- R.H.

Part# 1118-013

OEM Warranty Repair Part for MTD

Currently unavailable

0425-000

48

Pinion Gear - R.H.

Part# 0425-000

OEM Warranty Repair Part for MTD

Not available

3134-024

49

Cutter Bar Ass'y.

Part# 3134-024

OEM Warranty Repair Part for MTD

Currently unavailable
