190-467-000 - MTD Gang Reel Assembly (1987)

Gang Reel Assembly

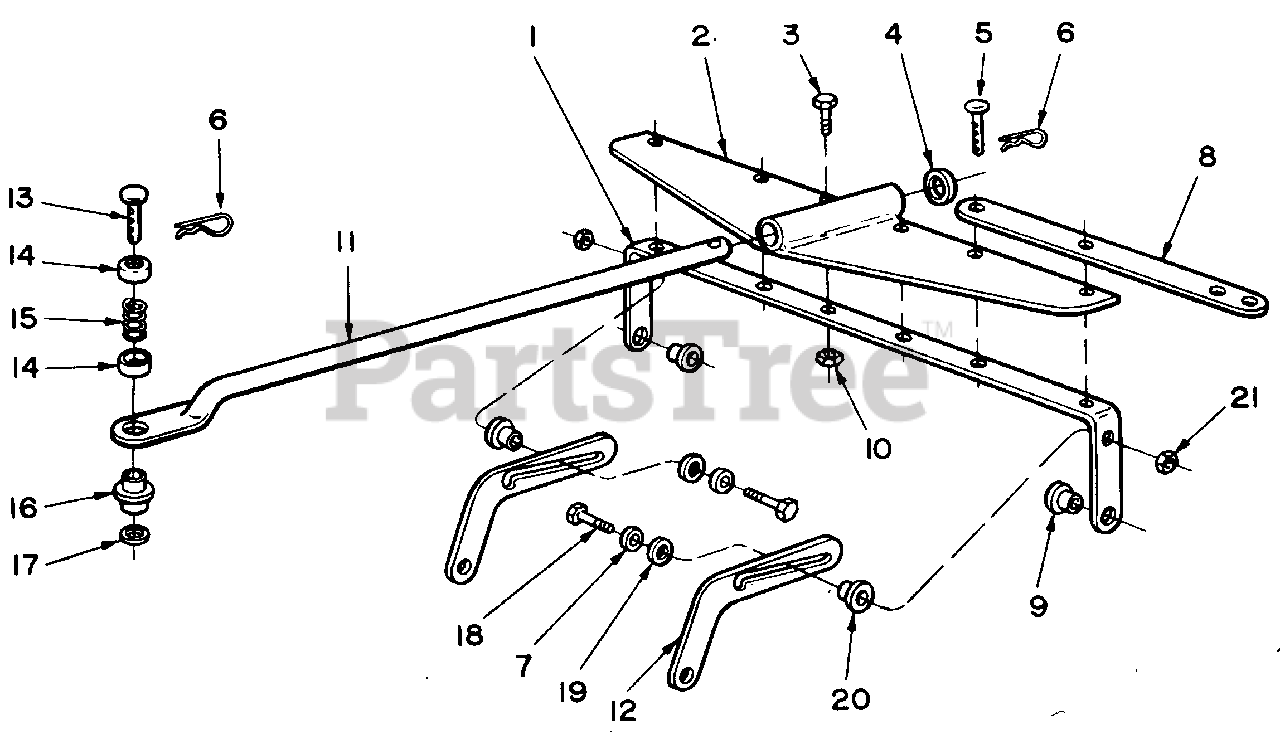

190-467-000 - MTD Gang Reel Assembly (1987) > Parts Diagrams (2) > Hitch

  • Title
3698-003

1

Bridge

Part# 3698-003

OEM Warranty Repair Part for MTD

Currently unavailable

3111-068

2

Tow Bar Plate Ass'y.

Part# 3111-068

OEM Warranty Repair Part for MTD

Not available

1509-017

3

Bolt 5/16x 18x 1*

Part# 1509-017 (Superseded to 710-0376)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

1540-058

4

Washer

Part# 1540-058

OEM Warranty Repair Part for MTD

Not available

0041-042

5

Clevis Pin

Part# 0041-042

OEM Warranty Repair Part for MTD

Not available

1547-005

6

Cotter Pin

Part# 1547-005 (Superseded to 914-0101)

OEM Warranty Repair Part for MTD

Not available

1552-008

7

Washer- Special

Part# 1552-008 (Superseded to 936-0286)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

1697-005

8

Outrigger Bar

Part# 1697-005

OEM Warranty Repair Part for MTD

Currently unavailable

1657-005

9

Spacer Bushing

Part# 1657-005

OEM Warranty Repair Part for MTD

Not available

1538-006

10

Nut5/16-18*

Part# 1538-006 (Superseded to 912-0158)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.10

3125-006

11

Tow Bar Ass'y.

Part# 3125-006

OEM Warranty Repair Part for MTD

Not available

2609-217

12

Transport Brkt.

Part# 2609-217

OEM Warranty Repair Part for MTD

Currently unavailable

1545-008

13

Clevis Pin

Part# 1545-008

OEM Warranty Repair Part for MTD

Not available

0041-035

14

Spring Cup

Part# 0041-035

OEM Warranty Repair Part for MTD

Not available

0041-036

15

Spring

Part# 0041-036

OEM Warranty Repair Part for MTD

Not available

1657-016

16

Bushing

Part# 1657-016

OEM Warranty Repair Part for MTD

Not available

0041-046

17

Washer 11/32 x 7/8*

Part# 0041-046 (Superseded to 936-0231)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

1513-045

18

Shoulder Bolt

Part# 1513-045

OEM Warranty Repair Part for MTD

Not available

0141-000

19

Washer

Part# 0141-000

OEM Warranty Repair Part for MTD

Not available

1624-135

20

Spacer

Part# 1624-135

OEM Warranty Repair Part for MTD

Not available

1538-008

21

Hex L-Nut 1/4- 20*

Part# 1538-008 (Superseded to 912-0107)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00
