190-467-190 - White Outdoor Gang Reel (1987) Gang Reel Assembly Parts Diagram

Gang Reel

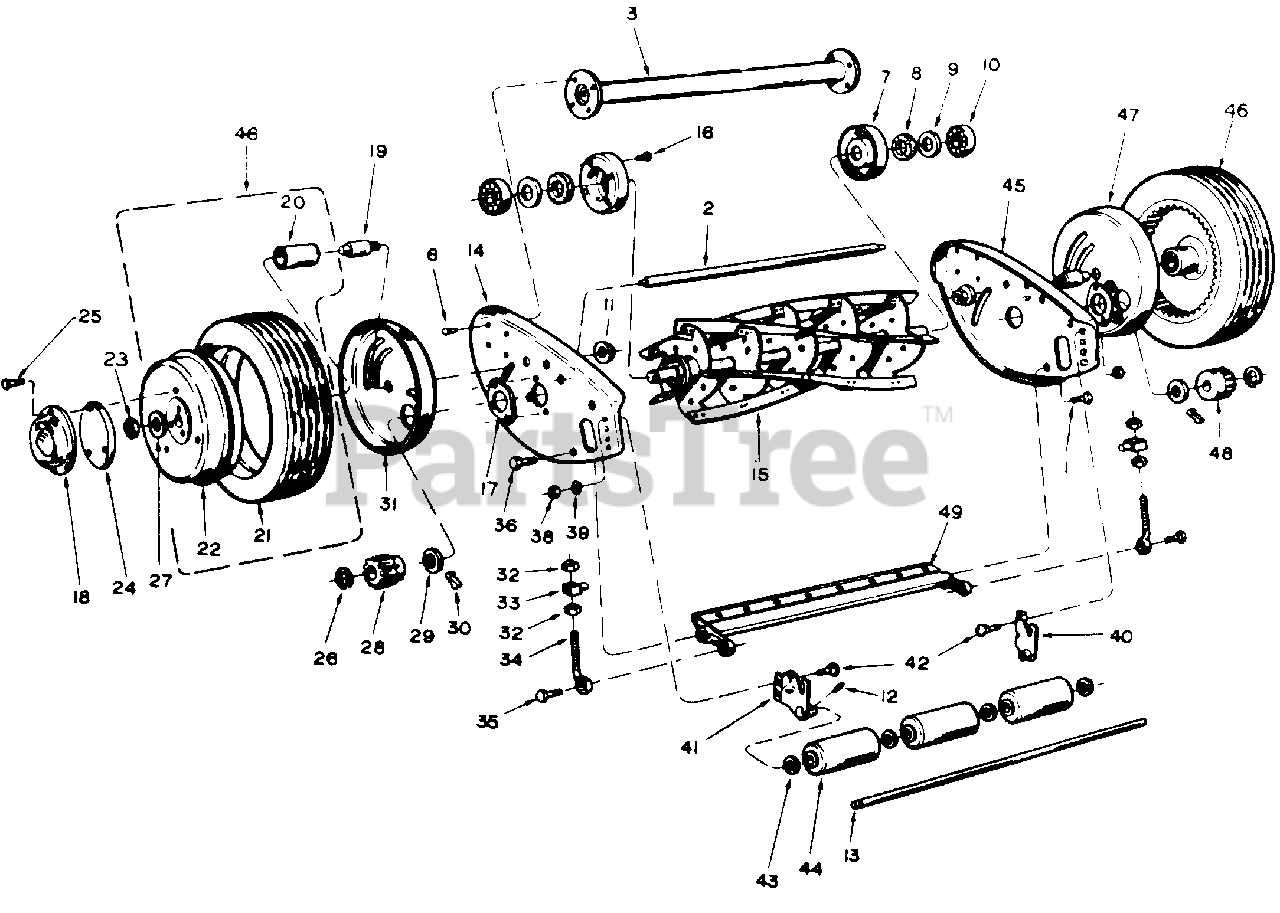

Gang Reel Assembly Parts Diagram

  • Title

1

1509-086

Screw Front L.H. Thd.

$

$

Not available

2

2624-110

Spacer End Plate

$

$

Not available

3

1112-015

Spacer Tube Ass'y.

$

$

Not available

6

1530-006

Rivet 3/16 x 3/8 Rd. Hd.*

$

$

Not available

7

1629-028

Retainer

$

$

Not available

8

0104-000

Felt Washer

$

$

Not available

9

0106-000

Felt Retainer

$

$

Not available

10

White Outdoor 0003-000

Bearing

$

$

Not available

11

White Outdoor 1137-003

Nut-Special

$

$

Not available

12

1548-007

Roll Pin

$

$

Not available

13

White Outdoor 1632-084

Roller Shaft

$

$

Not available

14

1129-180

End Plate Trunnions-L.H.

$

$

Not available

15

3135-036

Reel Ass'y.-21 "

$

$

Not available

16

White Outdoor 1530-020

Rivet 3/16 x 13/32 Rd. Hd.*
(Superseded to 728-0131)

$2.99

$

Usually ships in 3-6 days

0

17

1629-009

Bearing Retainer

$

$

Not available

18

2674-027

Hub Cap

$

$

Not available

19

White Outdoor 1631-051

Axle

$

$

Not available

20

White Outdoor 1652-052

Bearing

$

$

Not available

21

White Outdoor 2619-034

Tire

$

$

Not available

22

White Outdoor 1110-030

Drive Wheel-Less Tire

$

$

Not available

23

White Outdoor 1650-001

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

24

White Outdoor 2718-003

Wheel Weight

$

$

Not available

25

1511-029

Scr. #10-32 x 1 3/8 Thd. Cutting

$

$

Not available

26

White Outdoor 1650-021

Retaining Ring*
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

27

White Outdoor 1540-118

Washer

$

$

Not available

28

White Outdoor 0428-000

Pinion Gear-L.H.

$

$

Not available

29

0109-000

Felt Washer

$

$

Not available

30

White Outdoor 0323-000

Pawl

$

$

Not available

31

1118-014

Gear Housing-L.H.

$

$

Not available

32

White Outdoor 0052-000

Hex Nut 3/8-24 Semi Fin*
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 0011-000

Trunnion

$

$

Not available

34

White Outdoor 0451-000

Cutter Bar Adjusting Bolt

$

$

Not available

35

White Outdoor 0453-000

Screw-Rear

$

$

Not available

36

White Outdoor 0455-000

Screw-Front R.H. Thd.

$

$

Not available

38

White Outdoor 0070-000

Nut 5/8-18*
(Superseded to 912-3010)

$

$

Not available

39

White Outdoor 736-0119

L. Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 2132-045

Roller Brkt.-R.H.

$

$

Not available

41

White Outdoor 2132-044

Roller Brkt.-L.H.

$

$

Not available

42

White Outdoor 2003-000

Carr. Bolt 5/16-18 x 1 *

$

$

Not available

43

White Outdoor 1540-059

Washer 1/2 x 1 1/16*

$

$

Not available

44

White Outdoor 1658-012

Roller-3 Required

$

$

Not available

45

1129-181

End Plate with Trunnions-R.H.

$

$

Not available

46

White Outdoor 1108-095

Drive Wheel Ass y. wlti re

$

$

Not available

47

1118-013

Gear Housing-R.H.

$

$

Not available

48

White Outdoor 0425-000

Pinion Gear-R.H.

$

$

Not available

49

3134-024

Cutter Bar Ass'y.

$

$

Not available
