190-467-190 - White Outdoor Gang Reel (1987) Hitch Assembly Parts Diagram

Gang Reel

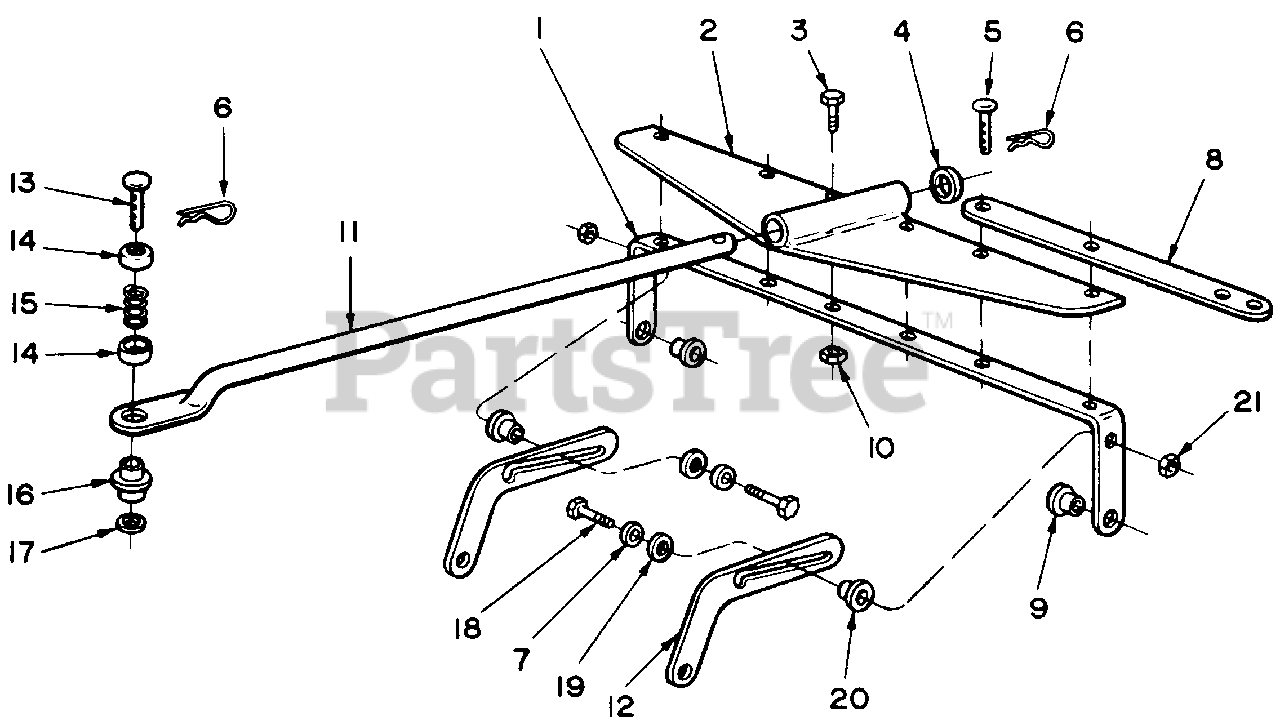

Hitch Assembly Parts Diagram

  • Title

1

3698-003

Bridge

$

$

Not available

2

White Outdoor 3111-068

Tow Bar Plate Ass'y.

$

$

Not available

3

White Outdoor 1509-017

Bolt 5/16 x 18 x 1*
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

4

White Outdoor 1540-058

Washer

$

$

Not available

5

White Outdoor 0041-042

Clevis Pin

$

$

Not available

6

White Outdoor 1547-005

Cotter Pin
(Superseded to 914-0101)

$

$

Not available

7

White Outdoor 1552-008

Washer-Special
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

8

1697-005

Outrigger Bar

$

$

Not available

9

White Outdoor 1657-005

Spacer Bushing

$

$

Not available

10

White Outdoor 1538-006

Nut 5/16-18*
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

11

White Outdoor 3125-006

Tow BarAss'y.

$

$

Not available

12

2609-217

Transport Brkt.

$

$

Not available

13

White Outdoor 1545-008

Clevis Pin

$

$

Not available

14

White Outdoor 0041-035

Spring Cup

$

$

Not available

15

White Outdoor 0041-036

Spring

$

$

Not available

16

White Outdoor 1657-016

Bushing

$

$

Not available

17

White Outdoor 0041-046

Washer 11/32 x 7/8*
(Superseded to 936-0231)

$

$

Not available

18

White Outdoor 1513-045

Shoulder Bolt

$

$

Not available

19

White Outdoor 0141-000

Washer

$

$

Not available

20

White Outdoor 1624-135

Spacer

$

$

Not available

21

White Outdoor 1538-008

Hex L-Nut 1/4-20*
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0
