190-485B190 - White Outdoor 42" Snow Blade (1994) 42" Snow Blade Parts Diagram

42" Snow Blade

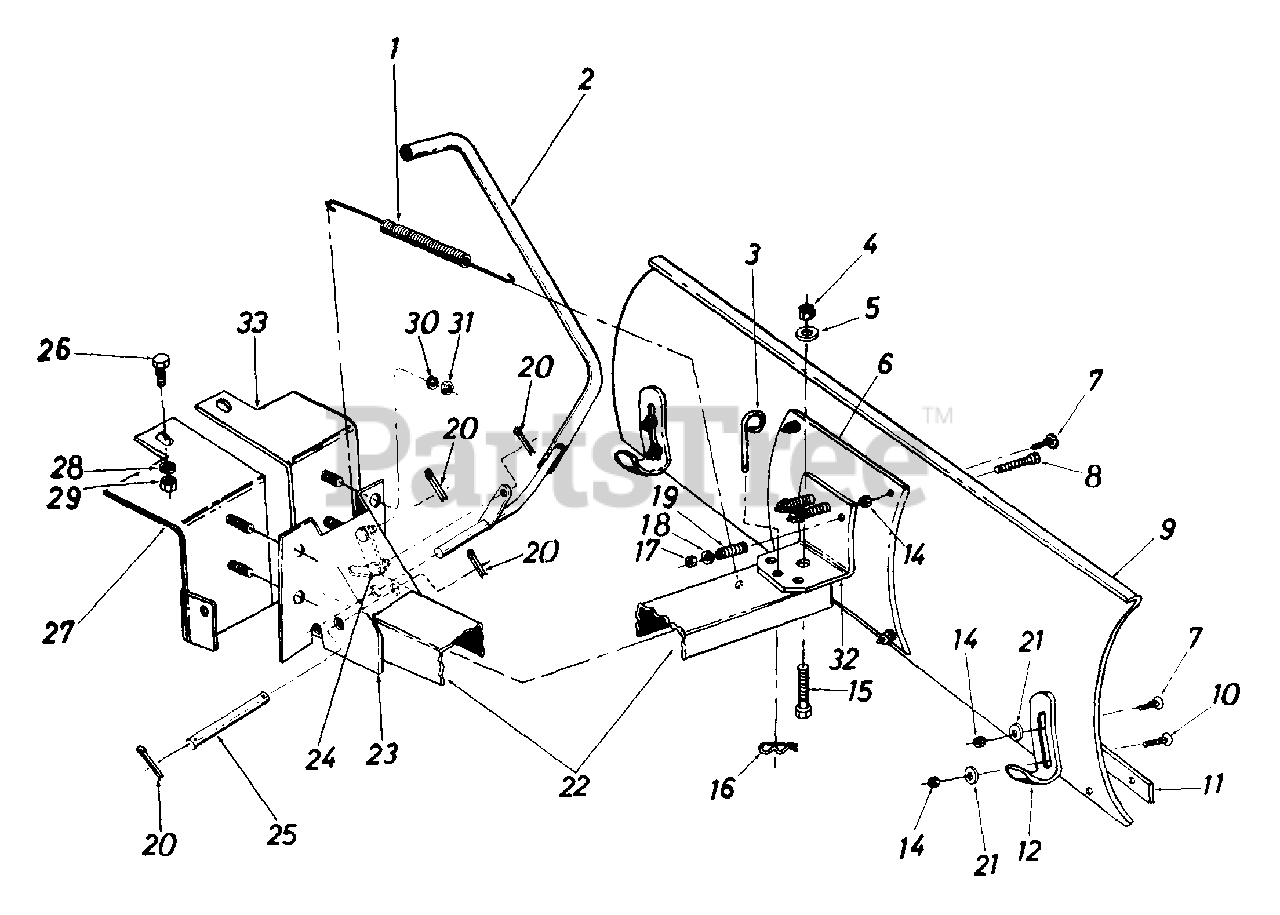

42" Snow Blade Parts Diagram

  • Title

1

White Outdoor 732-0153

Extension Spring

$

$

Not available

2

White Outdoor 11632

Lift Handle Ass'y.

$

$

Not available

3

43038

Pivot Lock Pin

$

$

Not available

4

White Outdoor 712-0384

Hex Cent. L-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

5

White Outdoor 736-0179

Fl-Wash. 17/32" I.D. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

6

23061

Reinforcement Plate

$

$

Not available

7

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

8

43036

Hex Bolt 3/8-16 x 3.75" Lg. Grade 5

$

$

Not available

9

23114

42" Blade

$

$

Not available

10

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

11

23117

42" Wear Plate

$

$

Not available

12

23070

Shoe Skid

$

$

Not available

14

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

16

White Outdoor 714-0101

Int. Cotter Pin

$4.49

$

In Stock, only 4 left!

0

17

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

18

White Outdoor 736-0258

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, only 4 left!

0

19

43035

Compression Spring

$

$

Not available

20

White Outdoor 714-0121

Cotter Pin 1/8" Dia. x 1" Lg.
(Superseded to 914-0121)

$

$

Not available

21

43081

Fl-Wash. 5/16" I.D.

$

$

Not available

22

23116

Push Bar Channel

$

$

Not available

23

White Outdoor 10513

Pivot Support Bracket

$

$

Not available

24

White Outdoor 10521

Lift Link

$

$

Not available

25

White Outdoor 09625

Channel Pivot Shaft
(Superseded to 738-0638)

$

$

Not available

26

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg. Grade 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 17512

Support Bracket - R.H.

$

$

Not available

28

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

30

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

31

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

32

23115

Support Bracket

$

$

Not available

33

White Outdoor 17511

Support Bracket - L.H.

$

$

Not available
