190-485C190 - White Outdoor 42" Snow Blade (1995)

42" Snow Blade

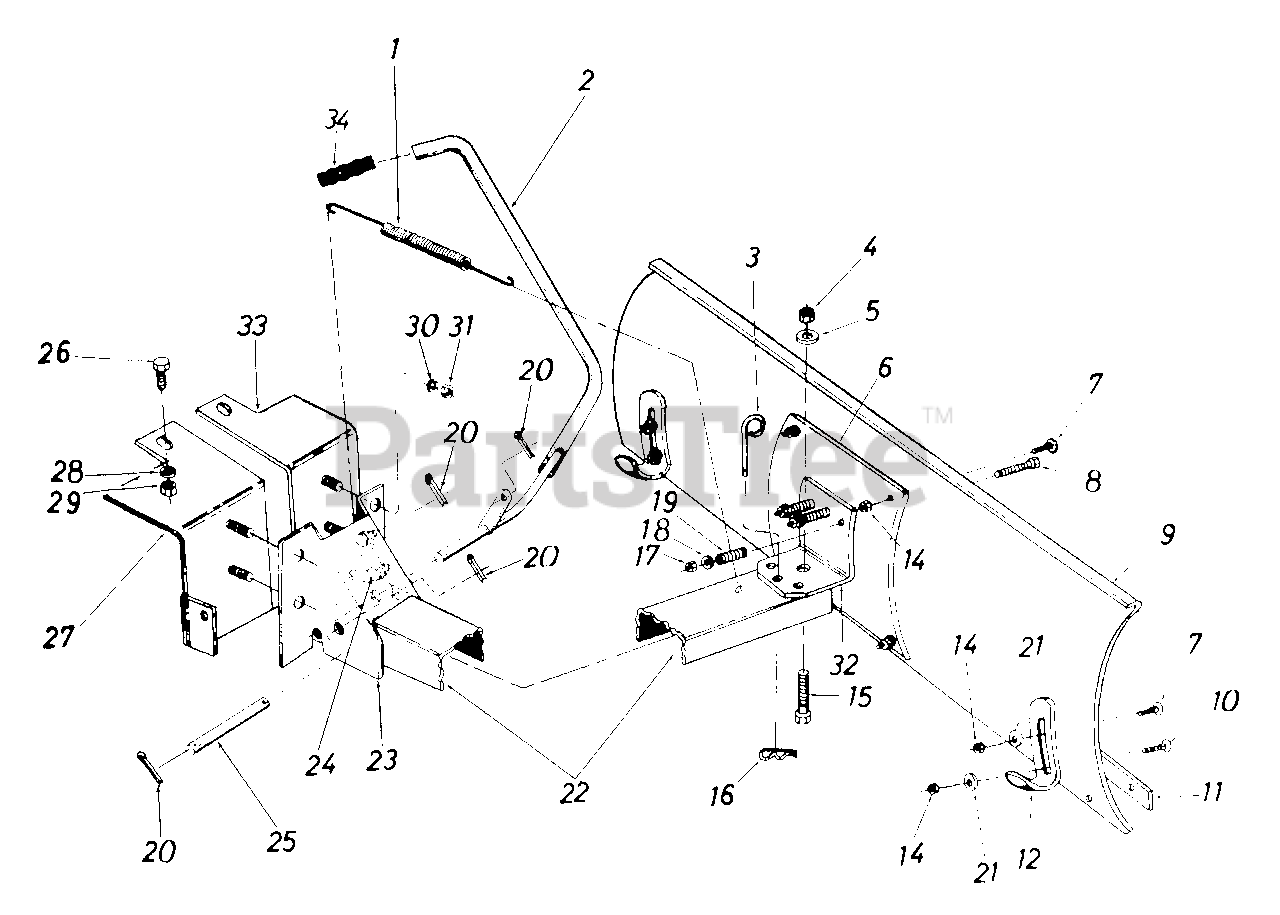

190-485C190 - White Outdoor 42" Snow Blade (1995) > Parts Diagrams (1) > Snow Blade

  • Title
732-0153

1

Extension Spring

Part# 732-0153

OEM Warranty Repair Part for White Outdoor

Not available

63046

2

Lift Handle Ass'y.

Part# 63046

Note: Code: N notates a new part (not previously existing).

Not available

43038

3

Pivot Lock Pin

Part# 43038

Not available

712-0384

4

Hex Cent. L-Nut 1/2-13 Thd.

Part# 712-0384 (Superseded to 912-0384)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.50

736-0179

5

Fl-Wash. 17/32" I.D. x 1.25" Lg.

Part# 736-0179 (Superseded to 936-0179)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

23061

6

Reinforcement Plate

Part# 23061

Not available

710-0451

7

Carriage Bolt 5/16-18 x .75" Lg.

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

43036

8

Hex Bolt 3/8-16 x 3.75" Lg. Grade 5

Part# 43036

Not available

23114

9

42" Blade

Part# 23114

Not available

710-0276

10

Carriage Bolt 5/16-18 x 1" Lg.

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

23117

11

42" Wear Plate

Part# 23117

Not available

23070

12

Shoe Skid

Part# 23070

Not available

712-0158

14

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

710-0474

15

Hex Bolt 1/2-13 x 1.25" Lg.

Part# 710-0474

OEM Warranty Repair Part for White Outdoor

Not available

714-0101

16

Int. Cotter Pin

Part# 714-0101 (Superseded to 914-0101)

OEM Warranty Repair Part for White Outdoor

Not available

712-0375

17

Hex Cent. L-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0258

18

Fl-Wash. 3/8" I.D.

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

43035

19

Compression Spring

Part# 43035

Not available

714-0121

20

Cotter Pin 1/8" Dia. x 1" Lg.

Part# 714-0121 (Superseded to 914-0121)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

43081

21

Fl-Wash. 5/16" I.D.

Part# 43081

Not available

23116

22

Push Bar Channel

Part# 23116

Not available

24023

23

Pivot Support Bracket

Part# 24023

Note: Code: N notates a new part (not previously existing).

Not available

63034

24

Lift Link

Part# 63034

Note: Code: N notates a new part (not previously existing).

Not available

09625

25

Channel Pivot Shaft

Part# 09625 (Superseded to 738-0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.10

710-0253

26

Hex Bolt 3/8-16 x 1" Lg. Grade 5

Part# 710-0253 (Superseded to 710-0514)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

17512

27

Support Bracket - R.H.

Part# 17512

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

28

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0798

29

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0169

30

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0342

31

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

23115

32

Support Bracket

Part# 23115

Not available

17511

33

Support Bracket - L.H.

Part# 17511

OEM Warranty Repair Part for White Outdoor

Not available

43362

34

Rubber Grip

Part# 43362

Note: Code: N notates a new part (not previously existing).

Not available
