190-491-000 - MTD 36" Snow Thrower Attachment (1988) 36" Snow Thrower Attachment Parts Diagram

36" Snow Thrower Attachment

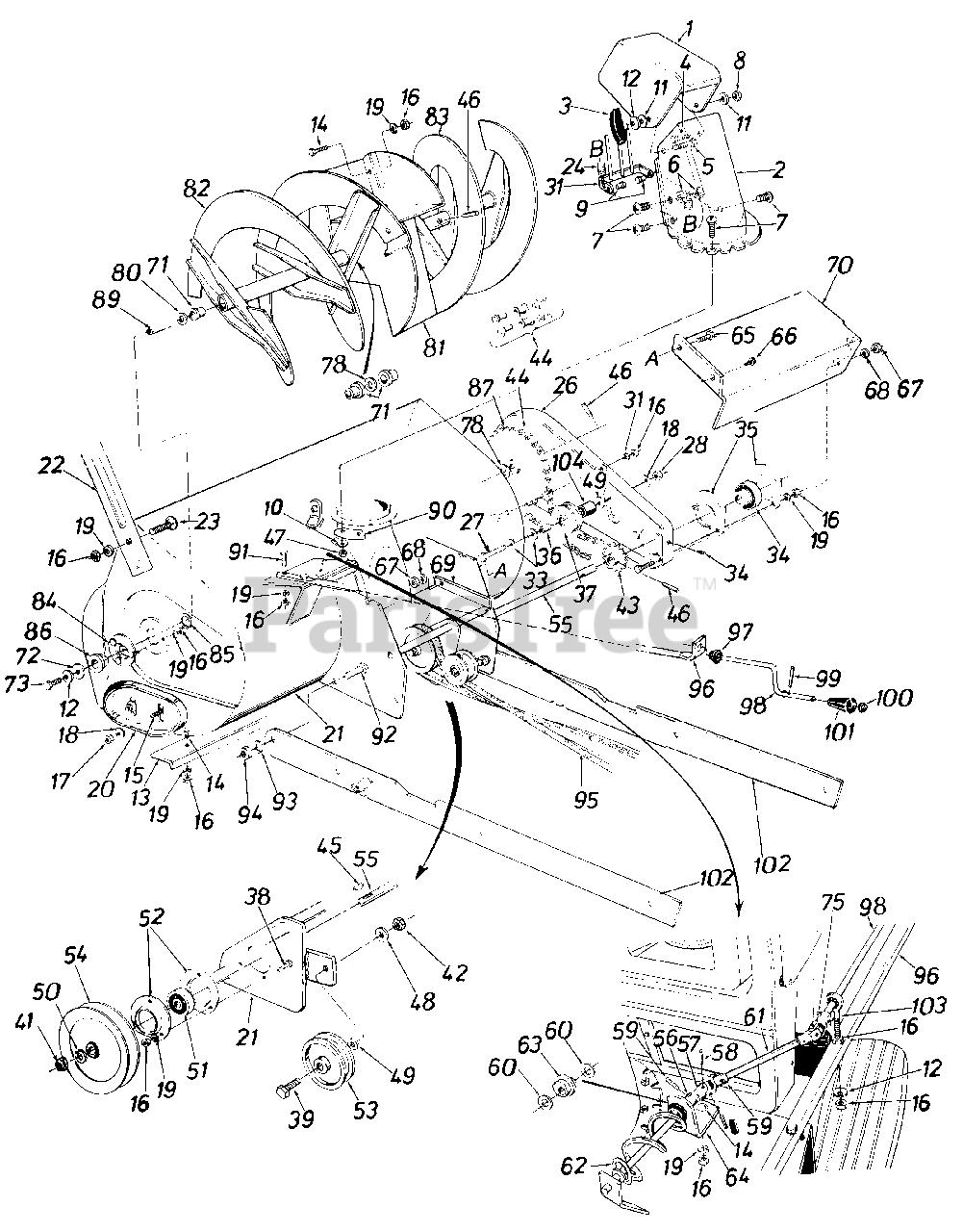

36" Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 731-0846

Upper Chute
(Superseded to 731-0846C)

$48.99

$

In Stock, only 1 left!

0

2

MTD 731-0843

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

3

MTD 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0"*

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0291

Hex Cent. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 9

0

7

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

9

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

10

MTD 736-0142

Fl. Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

11

MTD 736-0231

Fl.Wash. .344" I.D. x 1.125"

$4.49

$

In Stock, only 4 left!

0

12

MTD 736-0242

Bell. Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

13

MTD 05378

Shave Place
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

14

MTD 710-0451

Carriage Bolt 5/16-18 x .62"

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0790

Carriage Bolt 3/8-16 x .62"*
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell. Wash. .40 I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0119

L.Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$26.99

$

In Stock, Qty 20+

0

21

MTD 784-5212

Spiral Hsg. Ass'y.36"

$

$

Currently unavailable

22

MTD 05139

Guide 81ade
(Superseded to 790-00181-0637)

$40.99

$

Usually ships in 3-6 days

0

23

MTD 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0118

Extension Spring
(Superseded to 732-0118A)

$9.99

$

Usually ships in 3-6 days

0

26

MTD 05379

Chain Guard Ass'y.

$

$

Not available

27

MTD 710-0427

Hex Bolt 3/8-16 x 2.00 4.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0130

Hex Inst.Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

31

MTD 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

MTD 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

33

MTD 736-0300

Fl.Wash. .385" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

34

MTD 741-0310

Ball Brg. .75" I.D.

$

$

Not available

35

MTD 741-0311

Flangete
(Superseded to 941-0311)

$

$

Not available

36

MTD 750-0252

Spacer .375" I.D. x .60" O.D.
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 6

0

37

MTD 756-0358

Fl.ldler w/Flanges 1.875

$

$

Not available

38

MTD 710-0198

Hex Sems Boit 5/18x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

39

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" 4.*

$4.99

$

In Stock, Qty 20+

0

41

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.49

$

In Stock, only 1 left!

0

42

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

43

MTD 713-0188

Sprocket Ass'y.14 Teeth

$70.99

$

Usually ships in 3-6 days

0

44

MTD 713-0189

#420 Chain x 1/2" Pitch- 77 Links

$

$

Not available

MTD 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

45

MTD 714-0388

#61 Hi-Pro-Key 3/16 x 5/8"
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

46

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$11.99

$

In Stock, Qty 7

0

47

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

48

MTD 736-0169

L.Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

49

MTD 736-0235

Fl.Wash. .406" I.D. x 1.25"
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

50

MTD 736-0367

Spring L.Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

51

MTD 741-0309

Self-Aligning Brg.
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

52

MTD 741-0311

Flangete
(Superseded to 941-0311)

$

$

Not available

53

MTD 756-0417

Idler Pulley

$

$

Not available

54

MTD 756-0456

5/8V Pulley .75" I.D. x 6"

$

$

Not available

55

MTD 784-5077

Drive Shaft Ass'y

$

$

Not available

56

MTD 05066

Joint Brkt. Ass'y.

$

$

Not available

57

MTD 711-0584

Joint Block

$

$

Not available

58

MTD 728-0147

Oval Head Rivet

$

$

Not available

59

MTD 715-0129

Spiral Pin 1/8" Dia.

$4.49

$

In Stock, only 1 left!

0

60

MTD 736-0140

Fl.Wash. .385" I.D. x .62"

$6.99

$

In Stock, Qty 9

0

61

MTD 747-0523

Chute Crank Ext. Rod

$

$

Not available

62

MTD 784-5084

Chute Crank Ass'y. R.H.

$

$

Not available

63

MTD 741-0475

Plastic Bushing .380" I.D.
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

64

MTD 784-5085

Chute Crank Brkt.

$

$

Not available

65

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

67

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

68

MTD 736-0329

L.Wash. 1/4" I.D.4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

69

MTD 784-5214

Belt Cover

$

$

Not available

70

MTD 784-5215

Drive Shaft Cover

$

$

Not available

71

MTD 741-0494

Plastic Bushing

$3.99

$

In Stock, only 4 left!

0

72

MTD 07386

Washer .39" I.D. x 1.75" O.D

$

$

Not available

73

MTD 710-0371

Hex Bolt 5/16-18 x .88" Spec
(Superseded to 710-1880)

$4.49

$

In Stock, Qty 11

0

75

MTD 714-0507

Coter Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

78

MTD 736-0163

Fl.Wash. 1.03" I.D. x 1.62"

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0250

Fl.Wash. 1.0" x 1.75"

$4.49

$

In Stock, Qty 12

0

81

MTD 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

MTD 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 784-5219

36" Spiral Ass'y.L.H.

Variations

MTD 784-5219-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 784-5220

36" Spiral Ass'y.R.H.

Variations

MTD 784-5220-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 784-5220-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

MTD 05360

Bearing Hsg. Ass'y.
(Superseded to 05361)

$

$

Not available

85

MTD 716-0121

Snap Ring for 1.50" Shaft
(Superseded to GW-9502)

$13.99

$

In Stock, only 1 left!

0

86

MTD 741-0170

Flange Brg. w/flats 1.00" I.D.
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

87

MTD 713-0177

Sprocket Hub Ass.y. 40 Teet

$

$

Not available

89

MTD 738-0229

Spiral Axle

$

$

Not available

90

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$3.99

$

In Stock, Qty 20+

0

91

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" 4.*
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

92

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.*

$

$

Not available

93

MTD 736-0921

L.Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

94

MTD 712-0206

Hex Nut 1/2"13 Thd.*

$3.99

$

In Stock, Qty 20+

0

95

MTD 754-0294

"V" Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

96

MTD 749-0675

Chute Crank Support Tubing

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

98

MTD 747-0438

Chute Crank 34.5" L.g

$

$

Not available

99

MTD 715-0138

Roll Pin .12 Dia. x .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

100

MTD 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

101

MTD 720-0201

Knob Black
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 6

0

102

MTD 05836

Linkage Arm

$

$

Not available

103

MTD 747-0481

Eye Bolt 5/16-18 x 3.0" Lg.

$

$

Not available

104

MTD 741-0322

Idler Spacer

$

$

Not available
