190-491-190 - White Outdoor 36" Snow Thrower Attachment (1988)

36" Snow Thrower Attachment

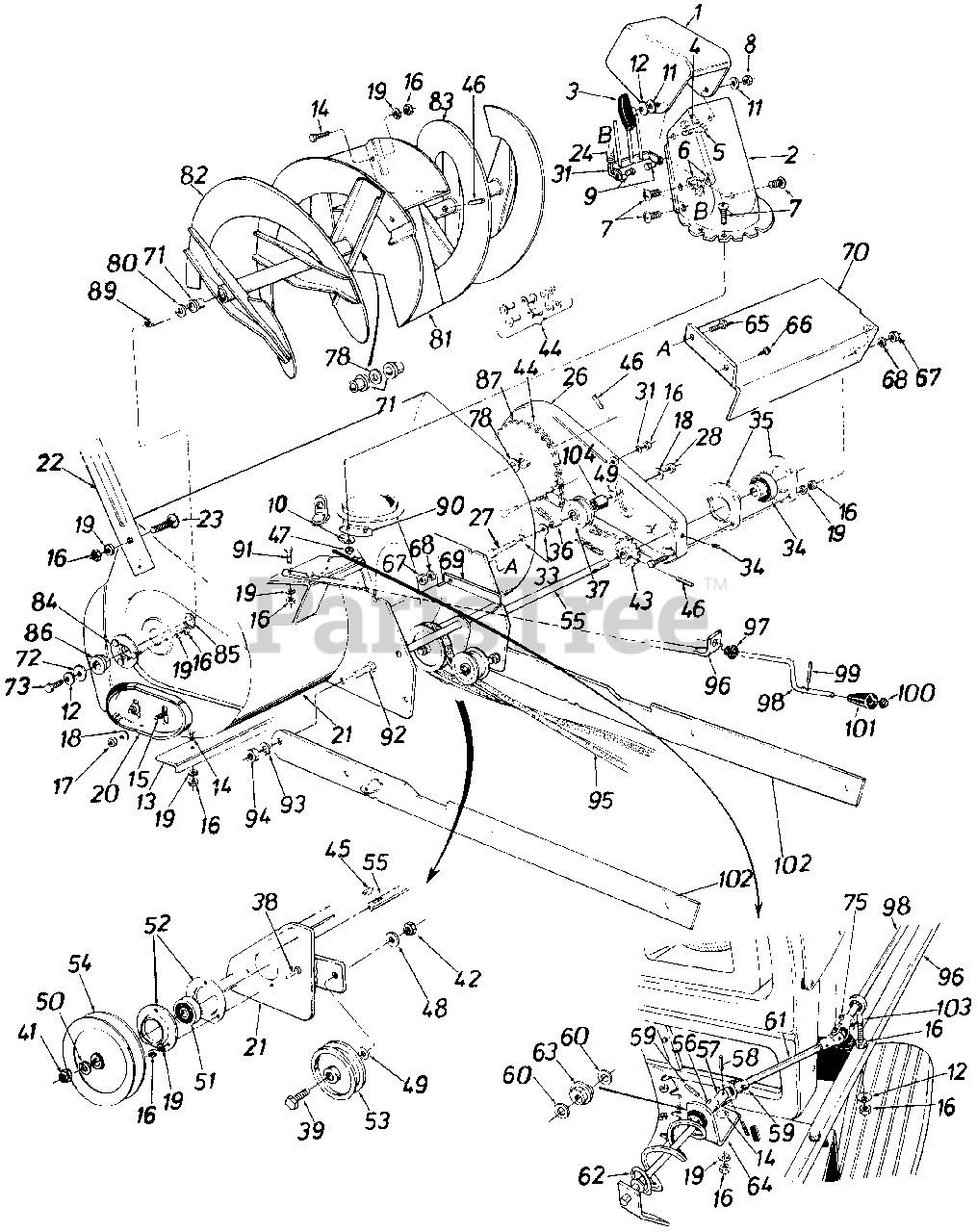

190-491-190 - White Outdoor 36" Snow Thrower Attachment (1988) > Parts Diagrams (2) > 36" Snow Thrower Tine Assembly

  • Title
731-0846

1

Upper Chute

Part# 731-0846 (Superseded to 731-0846C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.68

731-0843

2

Lower Chute

Part# 731-0843 (Superseded to 931-0843B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $47.86

09966

3

Knob Handle Ass'y.

Part# 09966 (Superseded to 720-04072A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-0323

4

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0276

5

Carriage Bolt 5/16-18 x 1.0"

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0291

6

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for White Outdoor

Not available

710-0255

7

Truss Mach. Scr. 1/4-20 x .75" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

712-0158

8

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

738-0561

9

Shld. Nut 1/4-20 Thd.

Part# 738-0561 (Superseded to 938-0561)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.53

736-0142

10

Fl. Wash. 1/4" I.D.

Part# 736-0142 (Superseded to 936-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0231

11

Fl.-Wash. .344" I.D. x 1.125"

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

736-0242

12

Bell. Wash. .345" I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

05378

13

Shave Place

Part# 05378

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shave Plate, 33" Lg

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $62.16

710-0451

14

Carriage Bolt 5/16-18 x .62"

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0790

15

Carriage Bolt 3/8-16 x .62"

Part# 710-0790 (Superseded to 710-0389)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

712-0267

16

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

712-0342

17

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

736-0105

18

Bell. Wash. .40 I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0119

19

L.-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

784-5038

20

Slide Shoe

Part# 784-5038 (Superseded to 784-5038B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.53

784-5212

21

Spiral Hsg. Ass'y.-36"

Part# 784-5212

Not available

05139

22

Guide Blade

Part# 05139 (Superseded to 790-00181-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.44

710-0260

23

Carriage Bolt 5/16-18 x .62"

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

732-0118

24

Extension Spring

Part# 732-0118 (Superseded to 732-0118A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.55

05379

26

Chain Guard Ass'y.

Part# 05379

OEM Warranty Repair Part for White Outdoor

Not available

710-0427

27

Hex Bolt 3/8-16 x 2.00 4.

Part# 710-0427 (Superseded to 710-3144)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

712-0130

28

Hex Inst.-Nut 3/8-16 Thd.

Part# 712-0130

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

784-5192

31

Chute Guard Ass'y.

Part# 784-5192

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GUARD ASSY-CHUTE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $75.61

736-0300

33

Fl.-Wash. .385" I.D. x.87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

741-0310

34

Ball Brg. .75" I.D.

Part# 741-0310 (Superseded to 941-0310)

OEM Warranty Repair Part for White Outdoor

Not available

741-0311

35

Flangette

Part# 741-0311 (Superseded to 941-0311)

OEM Warranty Repair Part for White Outdoor

Not available

750-0252

36

Spacer .375" I.D. x .60" O.D.

Part# 750-0252 (Superseded to 950-0252)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.81

756-0358

37

Fl.-ldler w/Flanges 1.875

Part# 756-0358

OEM Warranty Repair Part for White Outdoor

Not available

710-0198

38

Hex Sems Bolt 5/18 x.75" Lg.

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for White Outdoor

Not available

710-0347

39

Hex Bolt 3/8-16 x 1.75" Lg.

Part# 710-0347

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

712-0301

41

Hex Jam Nut 3/4-10 Thd.

Part# 712-0301

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.76

712-0342

42

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

713-0188

43

Sprocket Ass'y.-14 Teeth

Part# 713-0188

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.97

713-0189

44

#420 Chain x 1/2" Pitch-77 Links

Part# 713-0189

OEM Warranty Repair Part for White Outdoor

Not available

713-0154

Master Link

Part# 713-0154 (Superseded to 913-0154)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

714-0388

45

#61 Hi-Pro-Key 3/16 x 5/8"

Part# 714-0388 (Superseded to 914-0388)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.42

715-0118

46

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

Part# 715-0118 (Superseded to 915-0118)

OEM Warranty Repair Part for White Outdoor

Not available

712-0107

47

Hex L-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.26

736-0169

48

L.-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0235

49

Fl.-Wash. .406" I.D. x 1.25"

Part# 736-0235 (Superseded to 736-0247)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.00

736-0367

50

Spring L.-Wash. 3/4" I.D.

Part# 736-0367 (Superseded to 936-0364)

OEM Warranty Repair Part for White Outdoor

Not available

741-0309

51

Self Allgning Brg.

Part# 741-0309 (Superseded to 941-0309)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $55.25

741-0311

52

Flangette

Part# 741-0311 (Superseded to 941-0311)

OEM Warranty Repair Part for White Outdoor

Not available

756-0417

53

Idler Pulley

Part# 756-0417 (Superseded to 956-0417)

OEM Warranty Repair Part for White Outdoor

Not available

756-0456

54

5/8 V Pulley .75" I.D. x 6"

Part# 756-0456

OEM Warranty Repair Part for White Outdoor

Not available

784-5077

55

Drive Shaft Ass'y.

Part# 784-5077

OEM Warranty Repair Part for White Outdoor

Not available

05066

56

Joint Brkt. Ass'y.

Part# 05066

OEM Warranty Repair Part for White Outdoor

Not available

711-0584

57

Joint Block

Part# 711-0584

OEM Warranty Repair Part for White Outdoor

Not available

728-0147

58

Oval Head Rivet

Part# 728-0147

OEM Warranty Repair Part for White Outdoor

Not available

715-0129

59

Spiral Pin 1/8" Dia.

Part# 715-0129

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.31

736-0140

60

Fl.-Wash. .385" I.D. x .62"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Not available

747-0523

61

Chute Crank Ext. Rod

Part# 747-0523

OEM Warranty Repair Part for White Outdoor

Not available

784-5084

62

Chute Crank Ass'y. R.H.

Part# 784-5084

OEM Warranty Repair Part for White Outdoor

Not available

741-0475

63

Plastic Bushing .380" I.D.

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

784-5085

64

Chute Crank Brkt.

Part# 784-5085 (Superseded to 784-5085A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0258

65

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0599

66

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0287

67

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

68

L.-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

784-5214

69

Belt Cover

Part# 784-5214

OEM Warranty Repair Part for White Outdoor

Not available

784-5215

70

Drive Shaft Cover

Part# 784-5215

OEM Warranty Repair Part for White Outdoor

Not available

741-0494

71

Plastic Bushing

Part# 741-0494

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

07386

72

Washer.39" I.D. x 1.75" O.D

Part# 07386

OEM Warranty Repair Part for White Outdoor

Not available

710-0371

73

Hex Bolt 5/16-18 x .88" Spec

Part# 710-0371 (Superseded to 710-1880)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

714-0507

75

Cotter Pin 3/32" Dia.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0163

78

Fl.-Wash. 1.03" I.D. x 1.62"

Part# 736-0163 (Superseded to 936-0163)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.21

736-0250

80

Fl.-Wash. 1.0" x 1.75"

Part# 736-0250

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

784-5216

81

Rotor Paddle Ass'y.

Part# 784-5216

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PADDLE ASSY-ROTOR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5219

82

36" Spiral Ass'y.-L.H.

Part# 784-5219

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SPIRAL ASSY-LH-36"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5220

83

36" Spiral Ass'y.-R.H.

Part# 784-5220

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available SPIRAL ASS'Y RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

05360

84

Bearing Hsg. Ass'y.

Part# 05360 (Superseded to 05361)

OEM Warranty Repair Part for White Outdoor

Not available

716-0121

85

Snap Ring for 1.50" Shaft

Part# 716-0121 (Superseded to GW-9502)

OEM Warranty Repair Part for White Outdoor

Not available

741-0170

86

Flange Brg. w/flats 1.00" I.D.

Part# 741-0170 (Superseded to 941-0170)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.17

713-0177

87

Sprocket Hub Ass.y. 40 Teet

Part# 713-0177

OEM Warranty Repair Part for White Outdoor

Not available

738-0229

89

Spiral Axle

Part# 738-0229

OEM Warranty Repair Part for White Outdoor

Not available

731-0851

90

Chute Flange Keeper

Part# 731-0851 (Superseded to 731-0851A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0442

91

Hex Bolt 5/16-18 x 1.5" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0474

92

Hex Bolt 1/"-13 x 1.25" Lg.

Part# 710-0474

OEM Warranty Repair Part for White Outdoor

Not available

736-0921

93

L.-Wash. 1/2" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0206

94

Hex Nut 1/2"13 Thd.

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

754-0294

95

"V" Belt

Part# 754-0294 (Superseded to 954-0294)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.37

749-0675

96

Chute Crank Support Tubing

Part# 749-0675

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available TUBING-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

741-0475

97

Plastic Bushing

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

747-0438

98

Chute Crank 34.5" L.g

Part# 747-0438 (Superseded to 747-0438A)

OEM Warranty Repair Part for White Outdoor

Not available

715-0138

99

Roll Pin .12 Dia. x .63

Part# 715-0138 (Superseded to 915-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.34

726-0100

100

Push Nut 3/8" Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for White Outdoor

Not available

720-0201

101

Knob Black

Part# 720-0201 (Superseded to 720-0201A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.73

05836

102

Linkage Arm

Part# 05836

OEM Warranty Repair Part for White Outdoor

Not available

747-0481

103

Eye Bolt 5/16-18 x 3.0" Lg.

Part# 747-0481

OEM Warranty Repair Part for White Outdoor

Not available

741-0322

104

Idler Spacer

Part# 741-0322

OEM Warranty Repair Part for White Outdoor

Not available
